搖頭開關 Toggle Switch
搖頭開關 Toggle Switch
安裝尺寸：直徑12.5mm
 |
 |
 |
 |
|||
|
F6001 ON-OFF 3A/250V 6A/125V 搖頭開關 Toggle Switch |
F6002 ON-OFF , ON-ON 3A/250V 6A/125V 搖頭開關 Toggle Switch |
F6003 ON-ON 3A/250V 6A/125V 搖頭開關 Toggle Switch |
F6011 ON-OFF 10A/250V 15A/125V 搖頭開關 Toggle Switch |
|||
 |
 |
 |
|
|||
|
F6012 ON-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6013 ON-OFF-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6014 (ON)-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6015 (ON)-OFF-(ON) 10A/250V 15A/125V 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|
F6016 ON-OFF-(ON) 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6021 ON-OFF 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6022 ON-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6023 ON-OFF-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
|||
 |
 |
 |
||||
|
F6024 (ON)-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
F6025 (ON)-OFF-(ON) 10A/250VAC 15A/125VAC 搖頭開關 Toggle Switch |
F6026 ON-OFF-(ON) 10A/250VAC 15A/125VAC 搖頭開關 Toggle Switch |
||||
T700系列 大型搖頭開關 T700 Series Toggle Switch
T700系列搖頭開關(搖杆開關、鈕子開關)，為通用交流電額定的觸發器開關，該系列產品適合工業標準0.500直徑裝配孔，可插入多種暫態和延時雙刀和單擲電路，並有接線端、套管和觸發器配置
安裝尺寸：直徑12.5mm
 |
 |
 |
 |
|||
|
T701FW ON-(ON) 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T701AW ON-OFF 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T701BT ON-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T701CW ON-OFF-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|
T702AW ON-OFF 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T702BW ON-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T702CW ON-OFF-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T702DW ON-OFF-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
|||
 |
 |
|||||
|
T702MT (ON)-OFF-(ON) 10A/250V 15A/125V 搖頭開關 Toggle Switch |
T702RW (ON)-OFF-ON 10A/250V 15A/125V 搖頭開關 Toggle Switch |
|||||

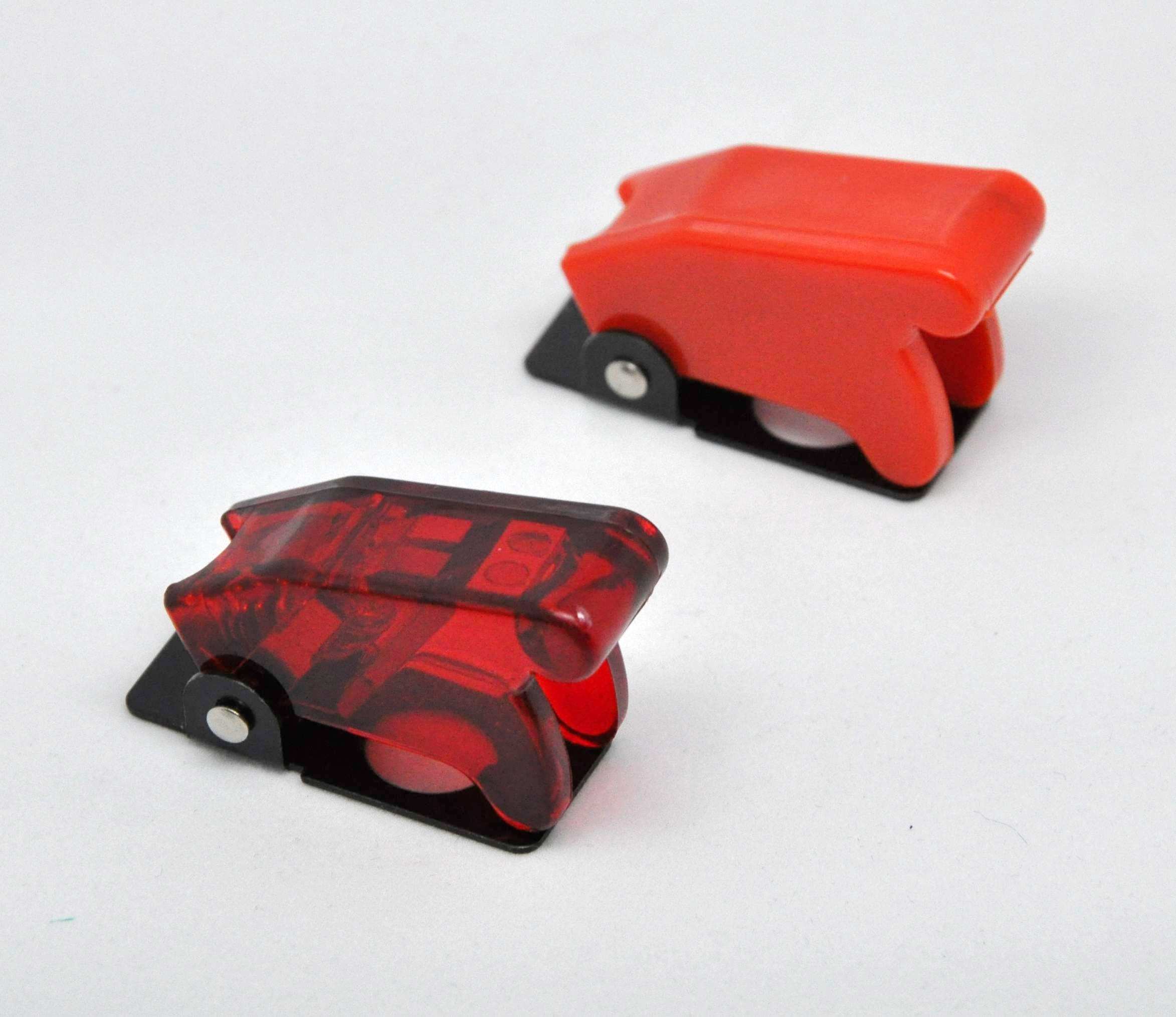

T700 防塵帽系列附件 T700 Series Cap
防觸蓋：防觸、防開啟
防水帽：室外工作時防濺水
適用T700系列產品
 |
 |
 |
 |
|||
|
T700-1 顏色：紅、藍、黃、綠、透明 搖頭開關帽蓋 Toggle Switch Cap |
T700-2B 顏色：黑 搖頭開關帽蓋 Toggle Switch Cap |
T700-R 顏色：紅 搖頭開關帽蓋 Toggle Switch Cap |
T700-G 顏色：綠 搖頭開關帽蓋 Toggle Switch Cap |
|||
 |
 |
|||||
|
T700-Y 顏色：黃 搖頭開關帽蓋 Toggle Switch Cap |
T700 顏色：紅、藍、黃、綠、黑 搖頭開關帽蓋 Toggle Switch Cap |
|||||
TS系列 搖頭開關 TS Series Toggle Switch
 |
 |
 |
 |
|||
|

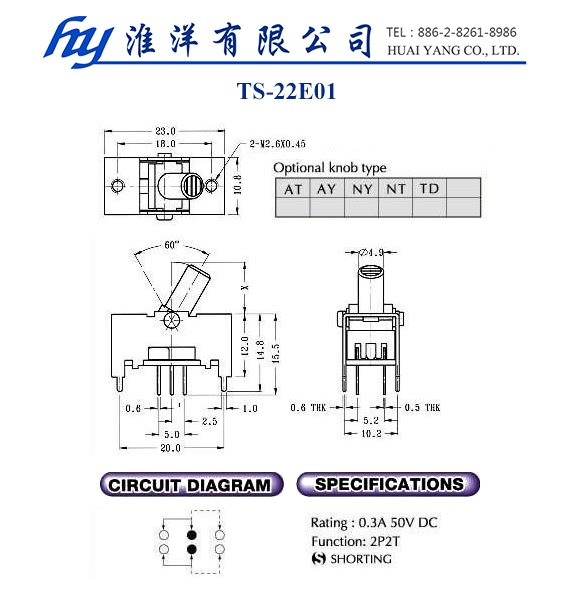

TS-22E01 0.3A / 50VDC 搖頭開關 Toggle Switch |

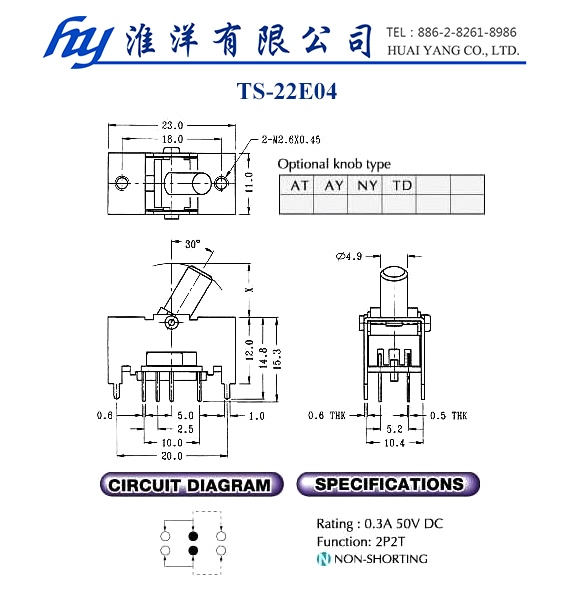

TS-22E04 0.3A / 50VDC 搖頭開關 Toggle Switch |

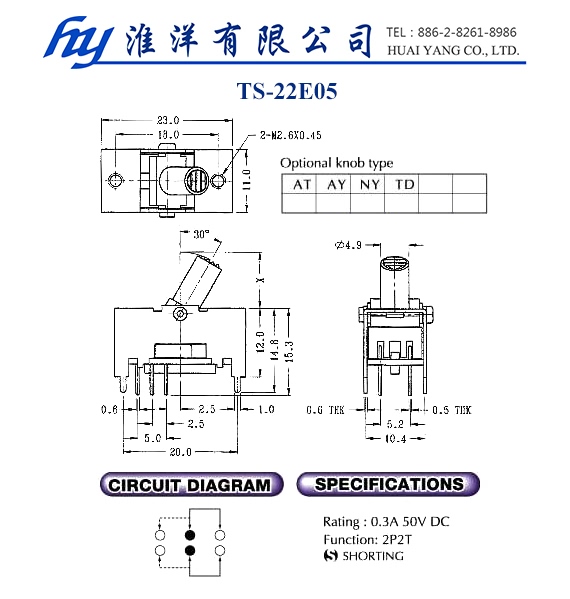

TS-22E05 0.3A / 50VDC 搖頭開關 Toggle Switch |

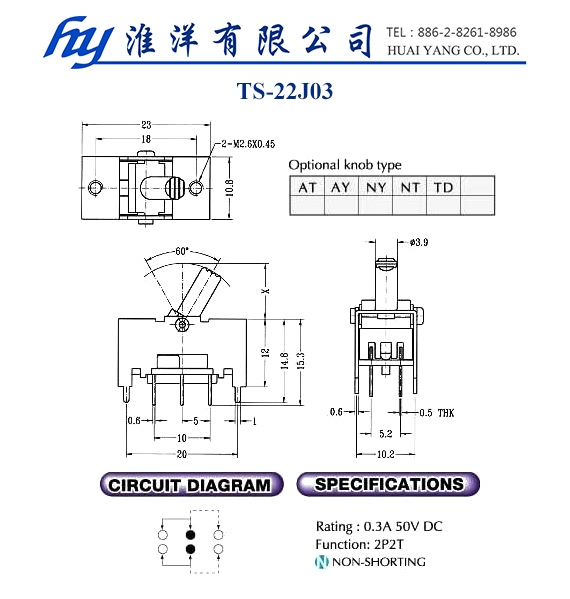

TS-22J03 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

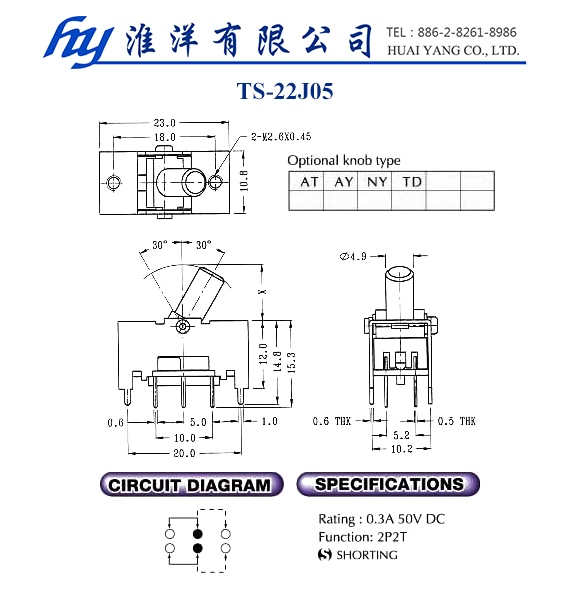

TS-22J05 0.3A / 50VDC 搖頭開關 Toggle Switch |

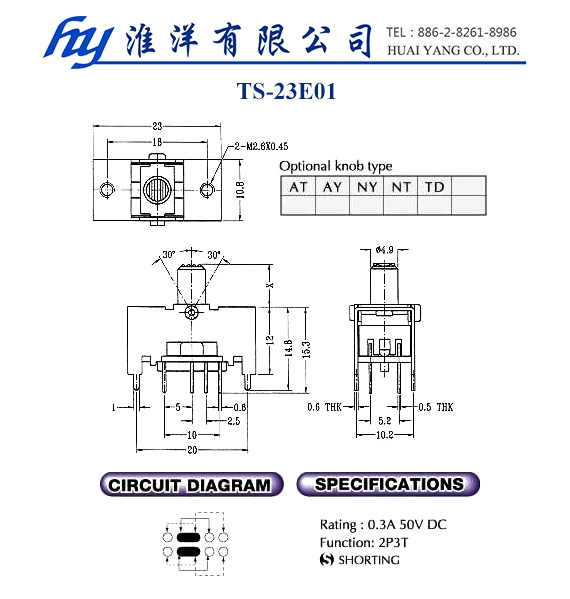

TS-23E01 0.3A / 50VDC 搖頭開關 Toggle Switch |

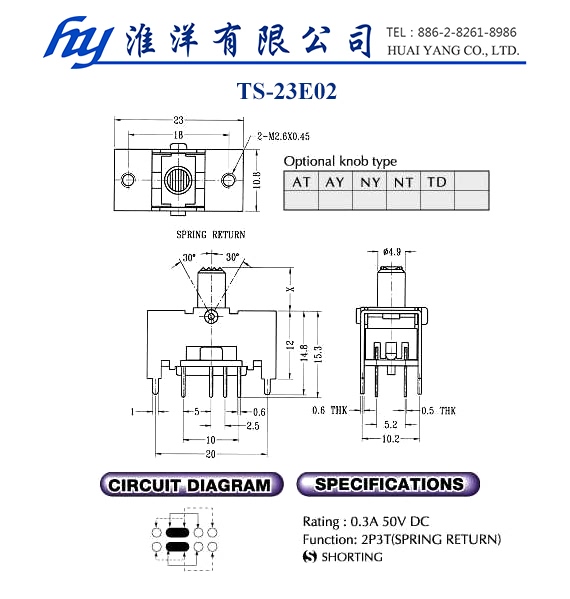

TS-23E02 0.3A / 50VDC 搖頭開關 Toggle Switch |

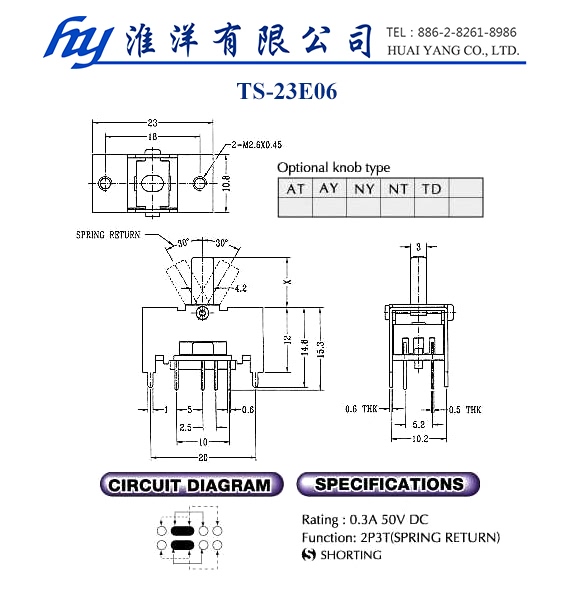

TS-23E06 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

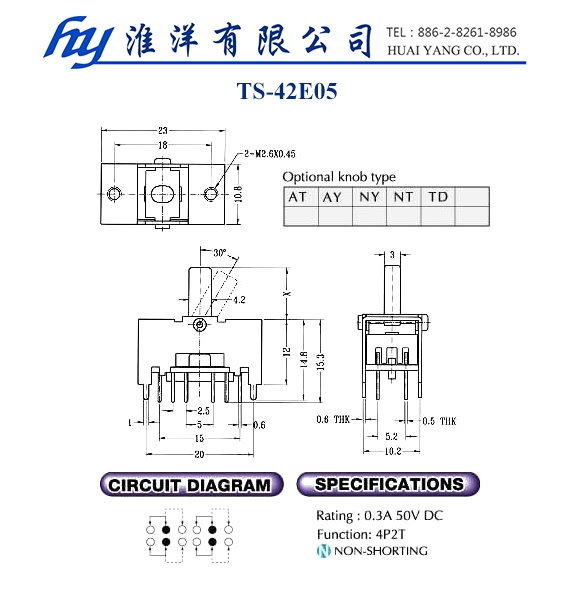

TS-42E05 0.3A / 50VDC 搖頭開關 Toggle Switch |

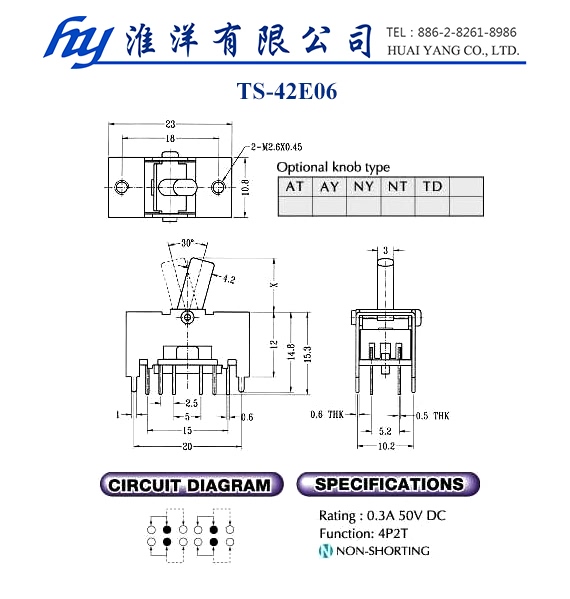

TS-42E06 0.3A / 50VDC 搖頭開關 Toggle Switch |

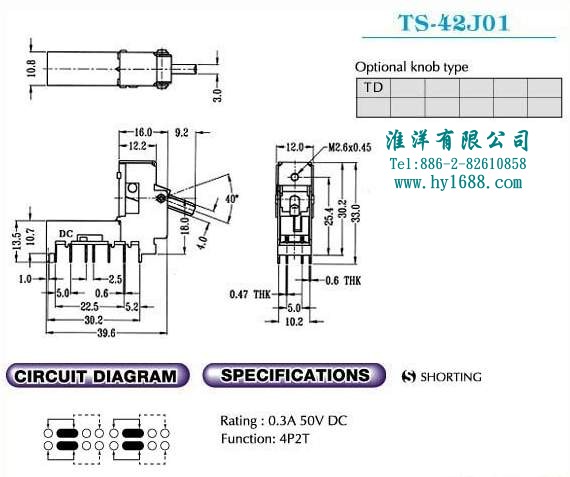

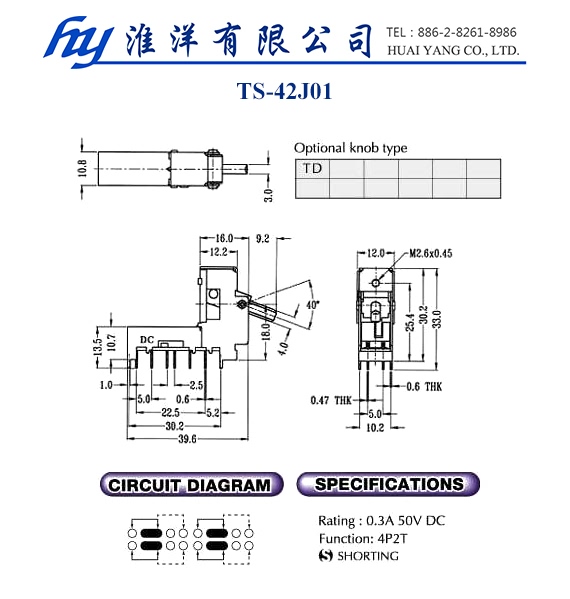

TS-42J01 0.3A / 50VDC 搖頭開關 Toggle Switch |

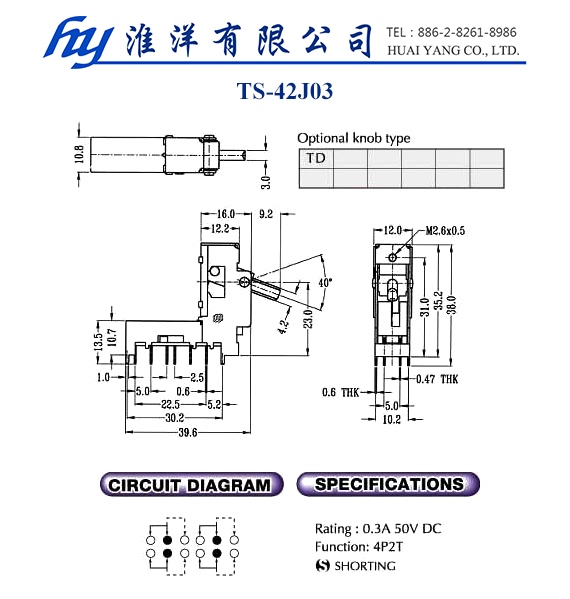

TS-42J03 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

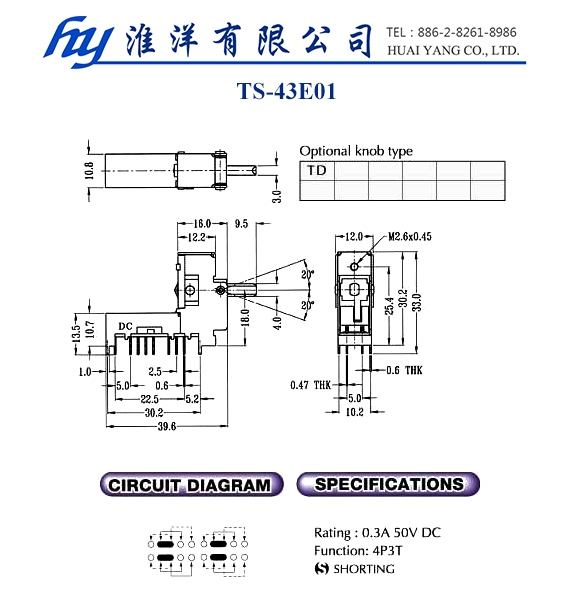

TS-43E01 0.3A / 50VDC 搖頭開關 Toggle Switch |

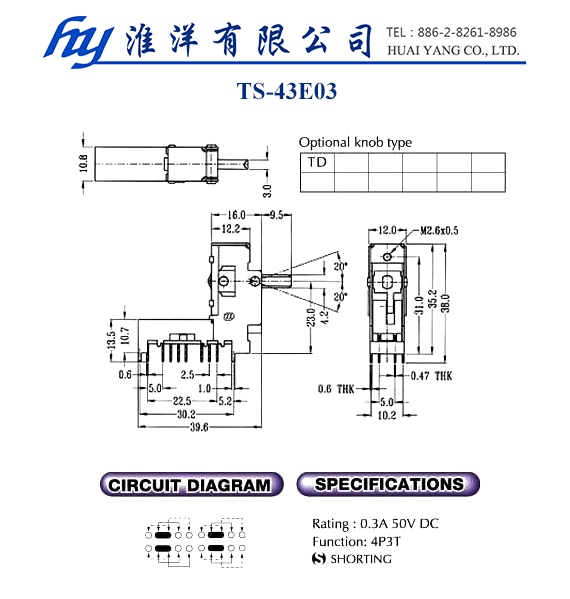

TS-43E03 0.3A / 50VDC 搖頭開關 Toggle Switch |

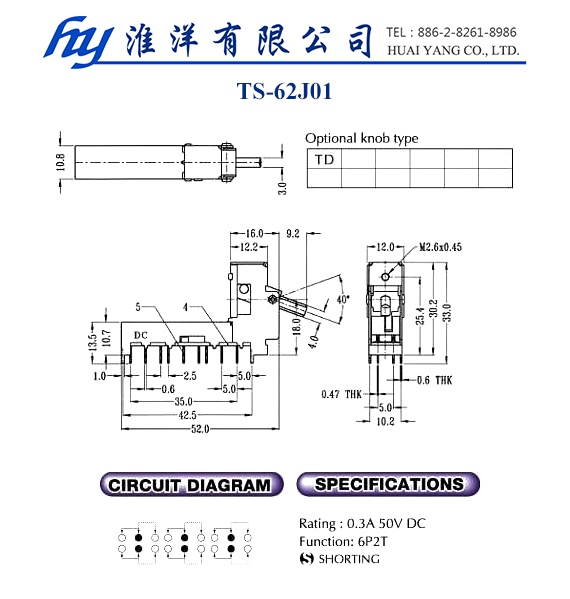

TS-62J01 0.3A / 50VDC 搖頭開關 Toggle Switch |

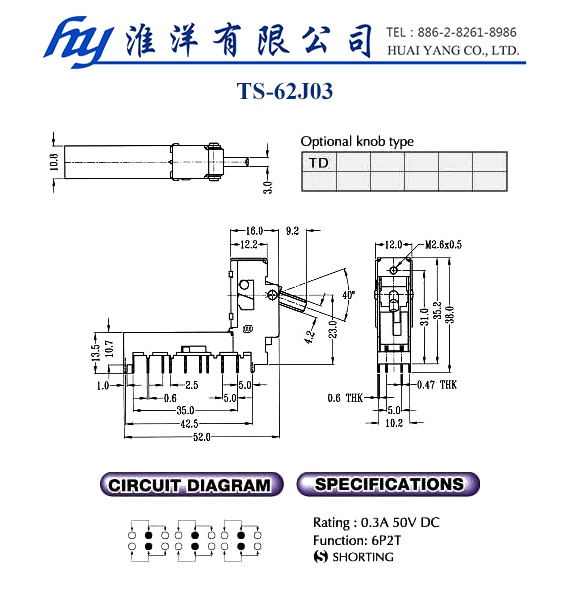

TS-62J03 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

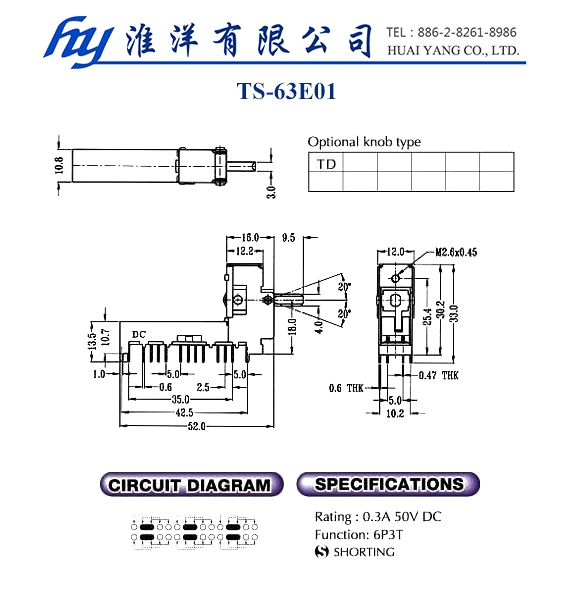

TS-63E01 0.3A / 50VDC 搖頭開關 Toggle Switch |

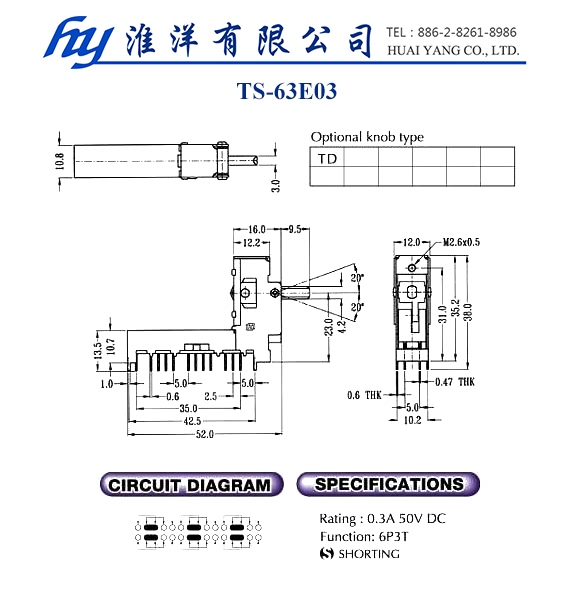

TS-63E03 0.3A / 50VDC 搖頭開關 Toggle Switch |

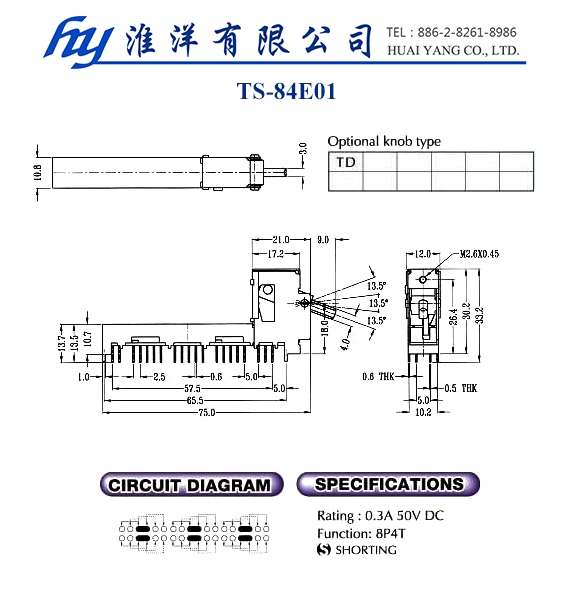

TS-84E01 0.3A / 50VDC 搖頭開關 Toggle Switch |

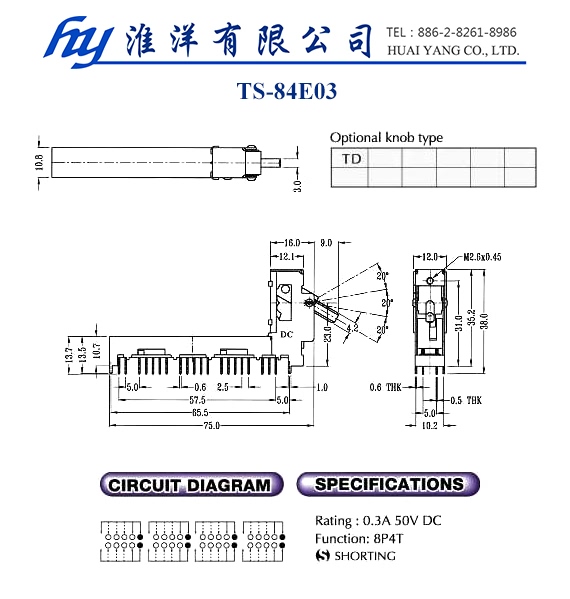

TS-84E03 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

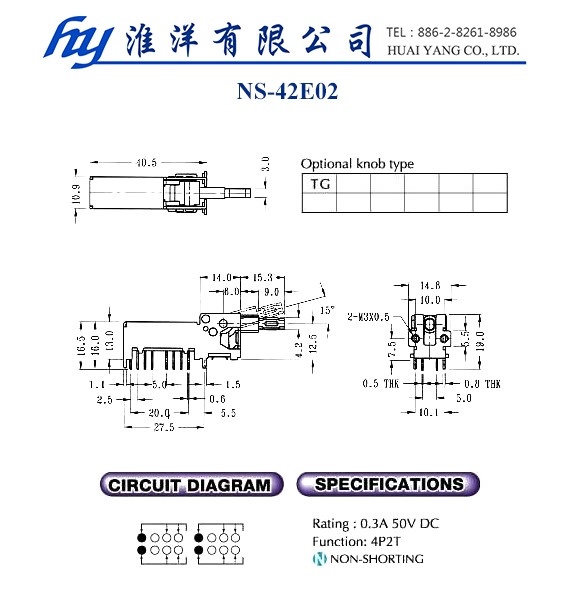

NS-42E02 0.3A / 50VDC 搖頭開關 Toggle Switch |

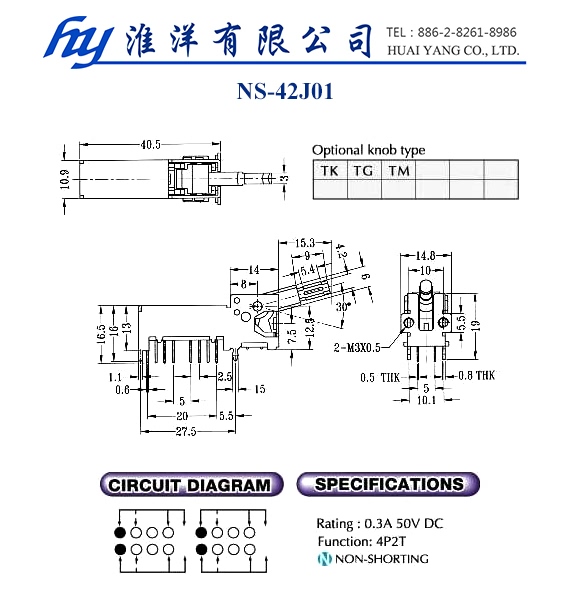

NS-42J01 0.3A / 50VDC 搖頭開關 Toggle Switch |

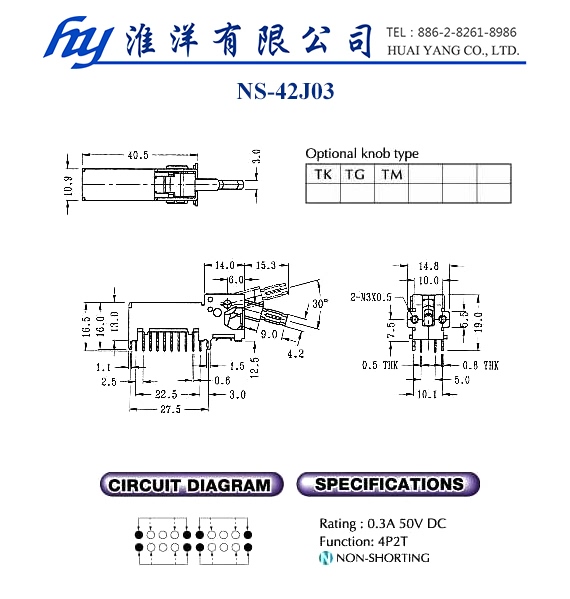

NS-42J03 0.3A / 50VDC 搖頭開關 Toggle Switch |
NS-42E01 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
|
|||
|

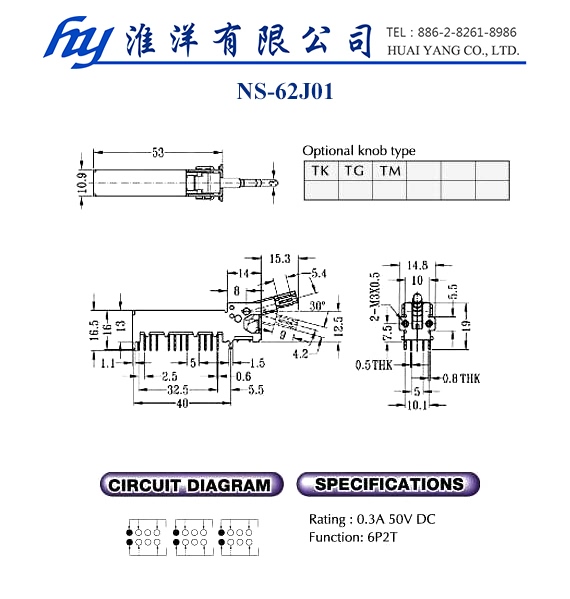

NS-62J01 0.3A / 50VDC 搖頭開關 Toggle Switch |

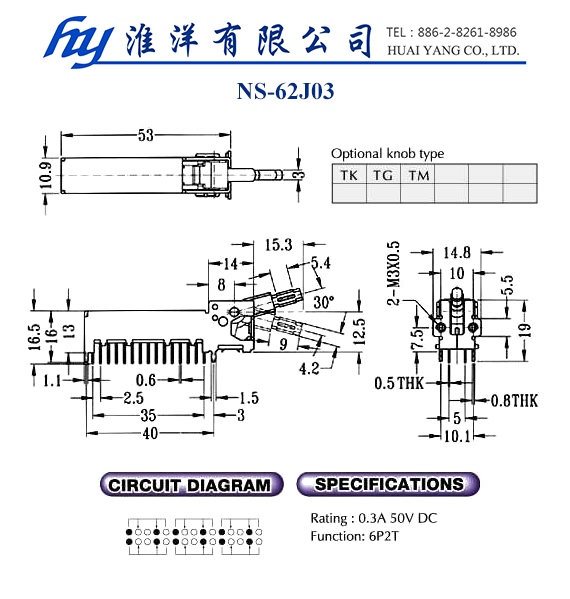

NS-62J03 0.3A / 50VDC 搖頭開關 Toggle Switch |

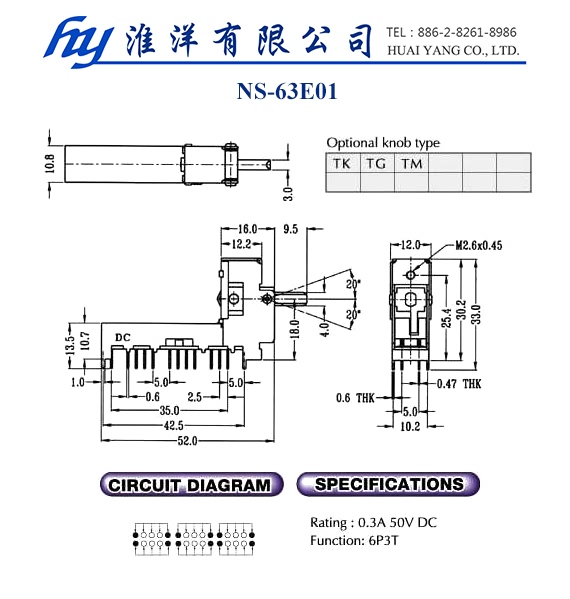

NS-63E01 0.3A / 50VDC 搖頭開關 Toggle Switch |

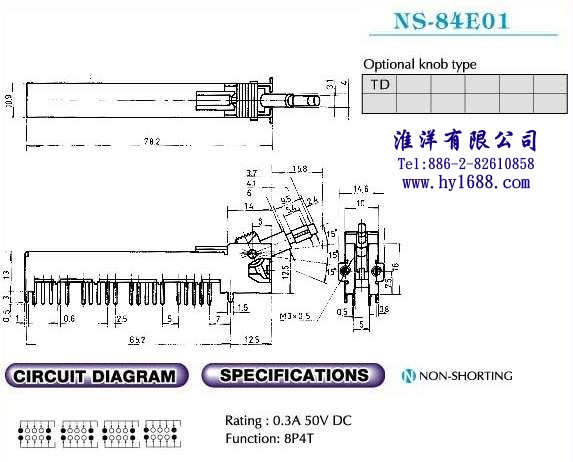

NS-84E01. 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

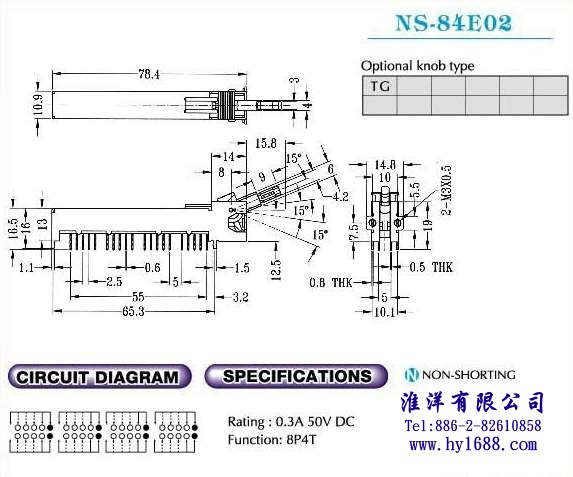

NS-84E02. 0.3A / 50VDC 搖頭開關 Toggle Switch |

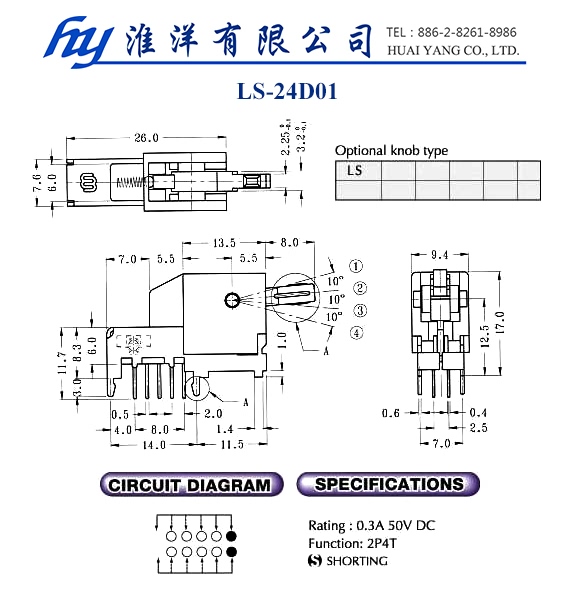

LS-24D01 0.3A / 50VDC 搖頭開關 Toggle Switch |
LS-42J01. 0.3A / 50VDC 搖頭開關 Toggle Switch |

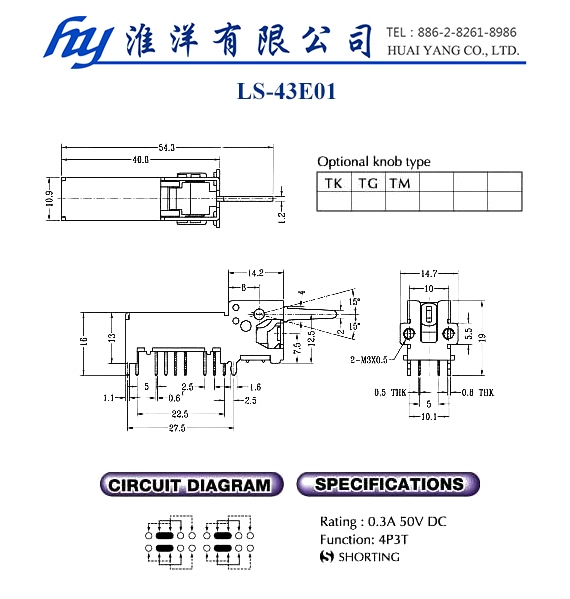

LS-43E01 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
 |
 |
 |
|||
|

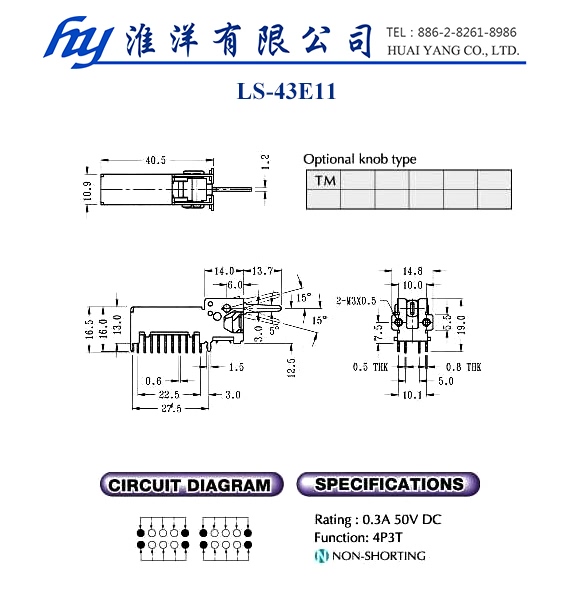

LS-43E11 0.3A / 50VDC 搖頭開關 Toggle Switch |

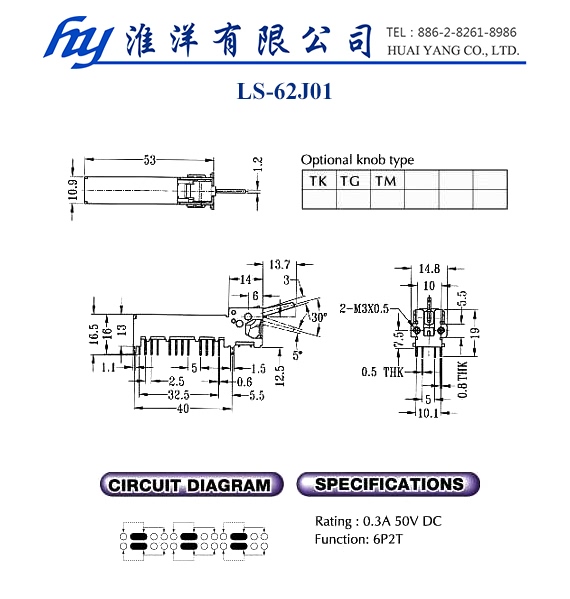

LS-62J01 0.3A / 50VDC 搖頭開關 Toggle Switch |
LS-63E01. 0.3A / 50VDC 搖頭開關 Toggle Switch |

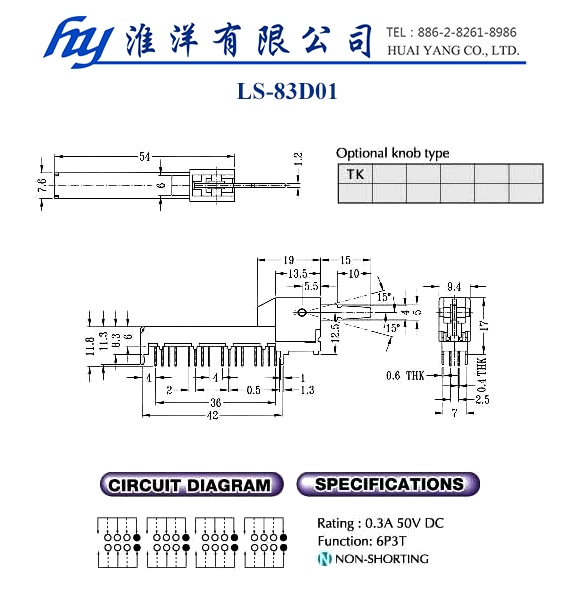

LS-83D01 0.3A / 50VDC 搖頭開關 Toggle Switch |
|||
 |
||||||
|

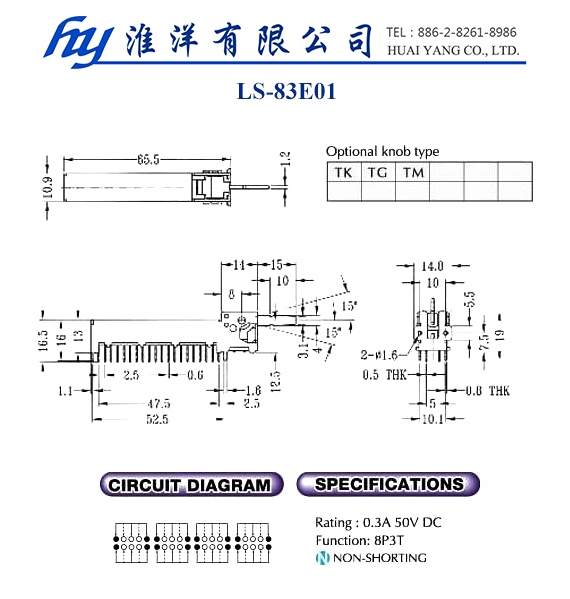

LS-83E01 0.3A / 50VDC 搖頭開關 Toggle Switch |
||||||
迷你搖頭開關 Mini Toggle Switch
 |
 |
 |
 |
|||
|
1F SPDT、DPDT 微型搖頭開關 Miniature Toggle Switch |
2U SPDT、DPDT IP 67 密封超小型搖頭開關 Sealed Ultraminiature |
1A SPDT、DPDT、3PDT IP 67 密封微型搖頭開關 Sealed Miniature Toggle Switch |
2A SPDT、DPDT IP 67 密封接頭微型搖頭開關 Sealed Sub-Miniature Toggle Switch |
|||
 |
 |
 |
 |
|||
|
2B(SMT) SPDT 密封接頭微型搖頭開關 Sealed Sub-Miniature Toggle Switch |
1M SPDT、DPDT、3PDT、4PDT 微型搖頭開關 Miniature Toggle Switch |
2M SPDT、DPDT 微型接頭搖頭開關 Sub-Miniature Toggle Switch |
2TE SPDT、DPDT IP 67 密封接頭搖頭開關 Sub-Miniature Toggle Switch (Washable) |
|||
|
