產品名稱 |
|

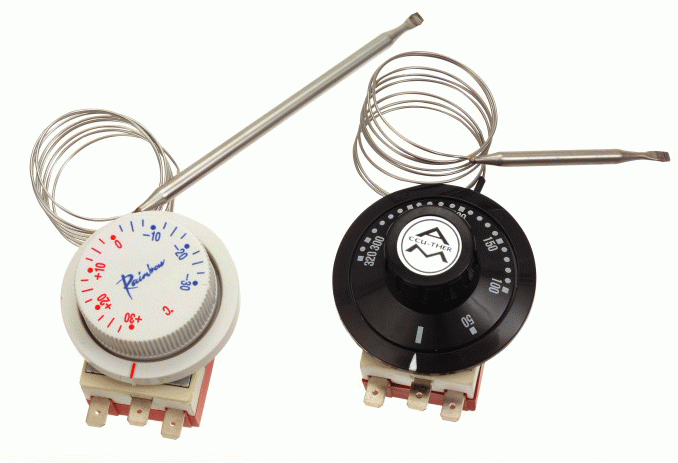

液脹式溫控器 Capillary Thermostat |
|
產品說明 |
|
本溫控器是具有一細單刀雙頭(SPDT)接點可做正動作或反動作溫度控制,並有寬範圍之溫度刻度,是高品質低成本之機械式溫控器,廣泛應用於:冷凍冷藏庫、
電熱器、飲水機、保溫箱、食品機械、包裝機械等,本公司備有各型式規格現貨庫存,以利生產廠家應用. There is a (SPDT) in
this controller, which can control the positive or negative temperature
action.
Application:heater, fridge |
|
構造原理 |
液脹式可調溫控由感溫棒，毛細管及傘形板組成。 當感溫棒遇熱時，感溫管內液體便膨脹經由，毛細管而至傘形板，
再由傘形板膨脹而頂開接點，達到控淛溫度的目的。 溫度控制的範圍依據恆溫器旋鈕調整而決定。The temperature
sensor consists of probe, capillary tube, diaphragm and expansion
medium. When the sensor is heated, the liquid medium heats up and
expands.
The expansion of the medium increases the pressure in the closed-circuit
system. The pressure increase is called travel, actuates a snap-action
switch which opens
or close the contacts in the electric circuit, The reference variable is
set via the thermostat's adjusting spindle. |
|
用途 |
|
冷凍冷藏庫、飲水機、食品機械、電氣烤箱、電暖器、家用電器、農業、工廠設備，需要控溫用途之機器自動化設備(例：配電盤、通訊箱) Freezer
& Refrigerators 、Water Fountain 、Foodstuffs machine 、Electric & Gas Oven
、Electric Heaters 、Agricultural / Factorial Equipment Auto
equipment |
|
 |
 |
|
|
 |

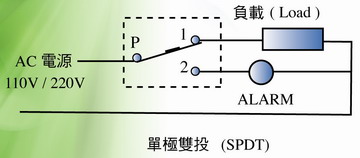

開關電路：(固定型恆溫器)可供SPST,SPDT
(手動復歸型恆溫器)僅可供SPST

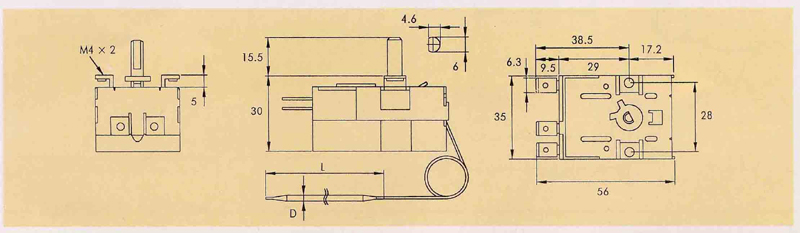

端子外型：45 , 垂直 , 水平 感溫管圓徑：管狀3Ø~5.8Ø |
|
端子接線說明 |
 |
|
規格說明 |
|
形式
Model |
溫度調節範圍
Temp. Range |
設定溫度差
Differential |
感溫管長度
Probe Length |
端子方式
Terminal |
毛細管
Capillary |
|

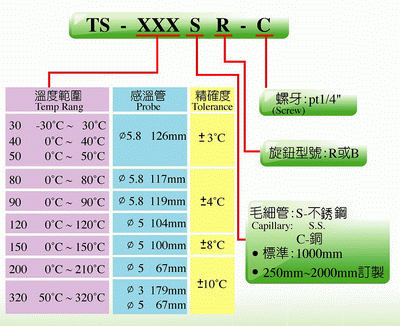

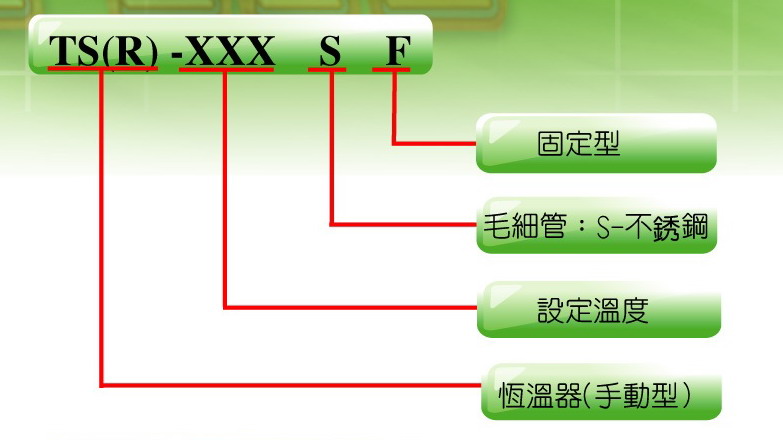

TS-030S |
-30℃
~ 30℃ |
4 ± 2℃ |
126L 5.8Ø |
單極雙投
S.P.D.T
單極單投
S.P.S.T |
Length |
Material |
|
TS-050S |
0℃
~ 50℃ |
125L 5.8Ø |
1,000mm |
SUS
CU |
|
TS-080S |
0℃
~ 80℃ |
115L 5.8Ø |
|
TS-090S |
0℃
~ 90℃ |
117L 5.8Ø |
|
TS-120S |
0℃
~ 120℃ |
105L 5Ø |
電器規格
Elec. Range |
|
TS-200S |
0℃
~ 200℃ |
10 ± 5℃ |
64.5L 5Ø |
|
TS-320S |
50℃
~ 320℃ |
165L 3Ø
65L 5Ø |
16(2)A
250/380V |
|
|
品質安全認証 : VDE
CE
UL
CSA |
|
