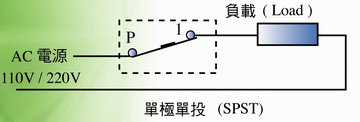

端子接線說明
產品名稱

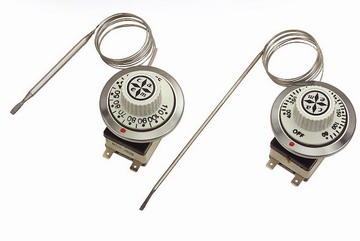

液脹式溫控器 Capillary Thermostat
產品說明
本溫控器是具有一細單刀雙頭(SPDT)接點可做正動作或反動作溫度控制,並有寬範圍之溫度刻度,是高品質低成本之機械式溫控器,廣泛應用於:冷凍冷藏庫、 電熱器、飲水機、保溫箱、食品機械、包裝機械等,本公司備有各型式規格現貨庫存,以利生產廠家應用.

There is a (SPDT) in this controller, which can control the positive or negative temperature action.
Application:heater, fridge

構造原理
 液脹式可調溫控由感溫棒,毛細管及傘形板組成。  當感溫棒遇熱時,感溫管內液體便膨脹經由,毛細管而至傘形板,
再由傘形板膨脹而頂開接點,達到控淛溫度的目的。  溫度控制的範圍依據恆溫器旋鈕調整而決定。

The temperature sensor consists of probe, capillary tube, diaphragm and expansion medium. When the sensor is heated, the liquid medium heats up and expands.
The expansion of the medium increases the pressure in the closed-circuit system. The pressure increase is called travel, actuates a snap-action switch which opens
or close the contacts in the electric circuit, The reference variable is set via the thermostat's adjusting spindle.

用途
冷凍冷藏庫、飲水機、食品機械、電氣烤箱、電暖器、家用電器、農業、工廠設備,
需要控溫用途之機器自動化設備(例:配電盤、通訊箱)

Freezer & Refrigerators 、Water Fountain 、Foodstuffs machine 、Electric & Gas Oven 、Electric Heaters 、Agricultural / Factorial Equipment
Auto equipment

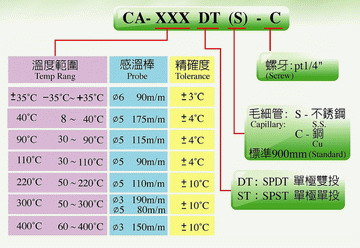

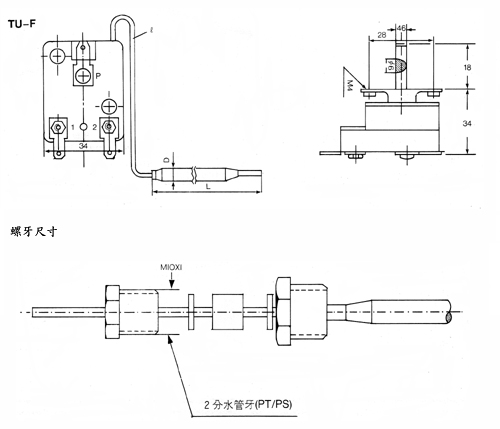

規格說明

溫度範圍

Range

接點額定電流

電阻性(電感性)

Current

接點方式

Connect

感 溫 管

Sensor

ℓ

材 質

Material

D

L

-35° ~+35℃

16A/250V

(5A/250V)

SPDT

銅質鍍鎳

6mm

95mm

1500mm

8° ~ 40℃

″

SPDT

銅 質

6mm

150mm

900mm

SPDT

不 �� 鋼

5mm

180mm

900mm

30°~ 90℃

″

SPDT

銅 質

6mm

90mm

900mm

SPDT

不 �� 鋼

5mm

120mm

900mm

30°~ 110℃

″

SPST

銅 質

6mm

75mm

900mm

SPDT

不 �� 鋼

5mm

90mm

900mm

50°~ 220℃

″

SPDT

不 �� 鋼

5mm

1050mm

900mm

50°~ 300℃

″

SPST

不 �� 鋼

3mm

190mm

900mm

SPDT

銅 質

5mm

80mm

900mm

60°~ 400℃

″

SPDT

不 �� 鋼

3mm

145mm

900mm

品質安全認証 : VDE   CE   UL
