| Product Info | |
| Product Description : | |
|

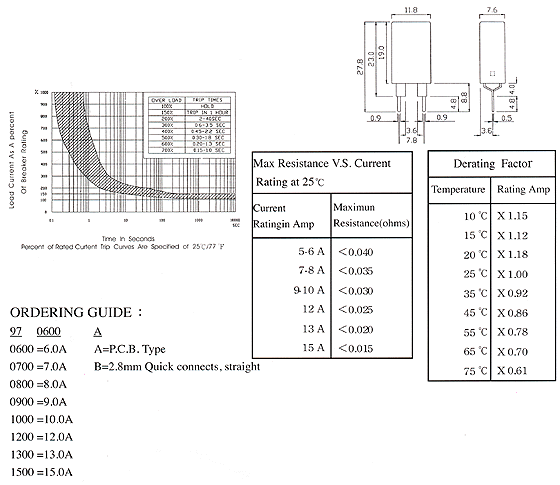

1. Rating: 6.0Amp - 15.0Amp 2. Input power: 125/250Vac, 50Vdc, 50/60Hz 3. Interrupt capacity: 200Amp, 125/250Vac 4. Dielectric strength: 1500Vac, 1 minute 5. Resettable overload capacity: 10 times rasted current 6. Voltage drop: less than 0.25V 7. Insuiation resistance: more than 500 megaohms 8. Reset time: within 60 seconds, trmperature rise at 9. Terminal block: less than 65 Centigrade degree at 100% of rated current applied continuously at 25 Centigrade degree. 10. Calibration (at 25degree) . 100% of rated current: hold, no-trip . 135% of rated current: trip in 1 hour . 200% of rated current: 2-40 seconds trip . 300% od rated current: 0.6-3.5 seconds trip |
|
|
|
| Primary Competitive Advantages : | |
| . Excellent and High Quality Control . Prompt Delivery . Customer's Designs and Logos are Welcome . Competitive Price . In a Variety of Designs . Small Order Acceptable . ODM Accepted . OEM Accepted |
|
| Safety/Quality Approvals : | |
| . UL/CSA/VDE/NEMKO/FIMKO/SEMKO/DEMKO | |
