保險絲座FUSE HOLDER

PANEL MOUNT FUSE HOLDER FOR 5x20mm FUSES

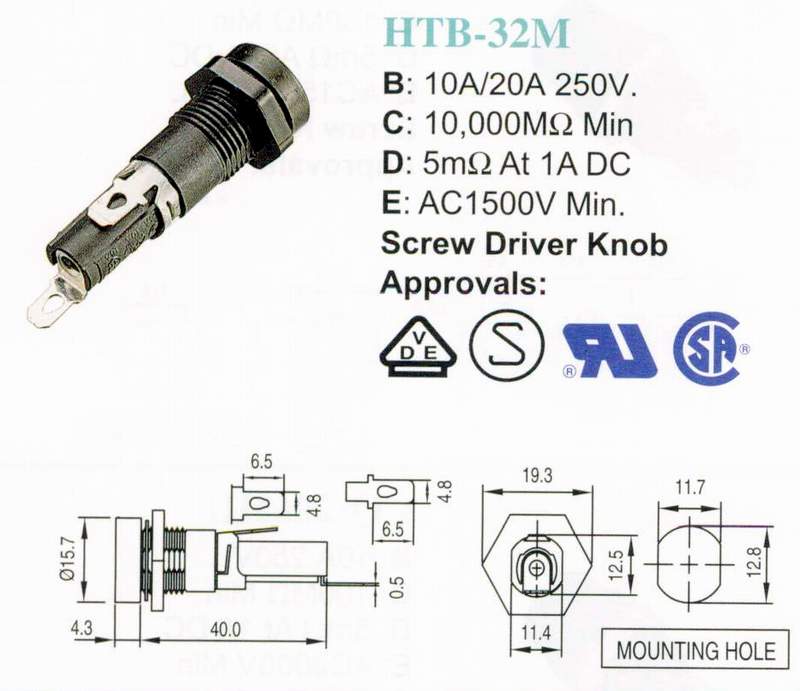

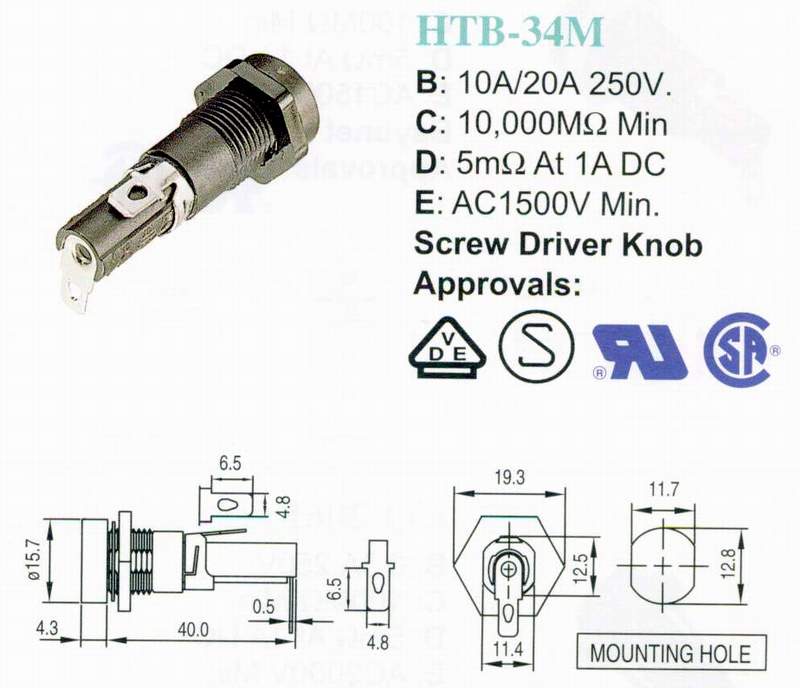

HTB-32M	HTB-34M	CQ-206
Rated Current : 10A/20A 250V Insulation Resistance At 500VDC :10,000ΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA,VDE,SEMKO Screw Driver Knob*	Rated Current : 10A/20A 250V Insulation Resistance At 500VDC :10,000ΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA,VDE,SEMKO Screw Driver Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Screw Knob

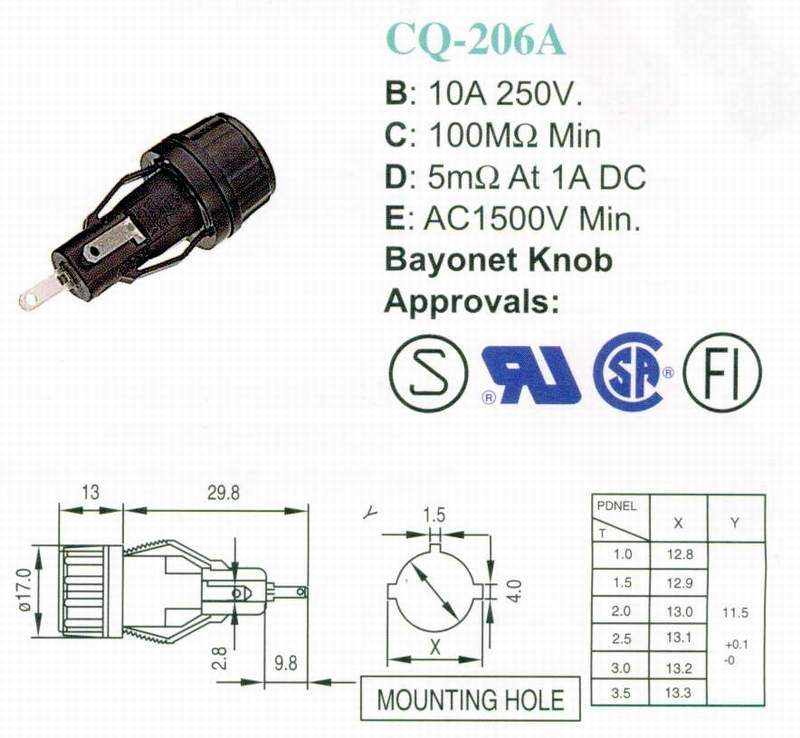

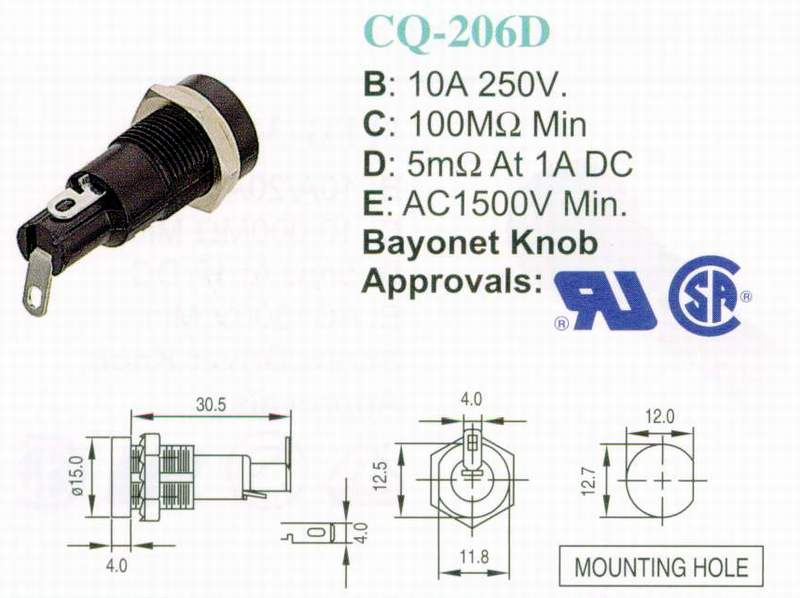

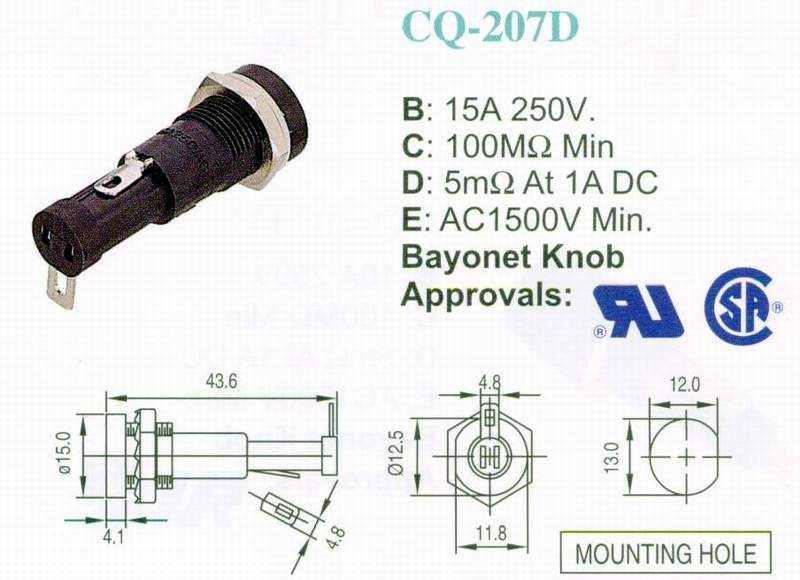

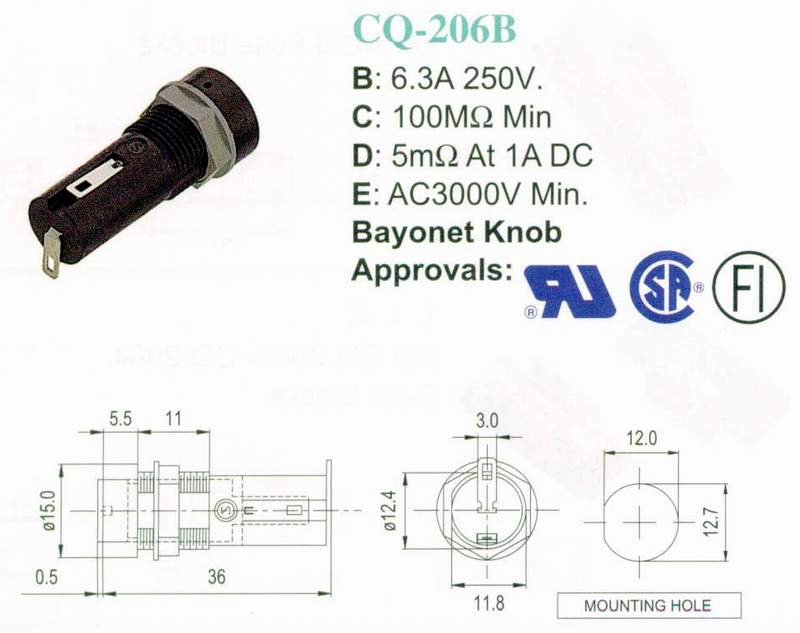

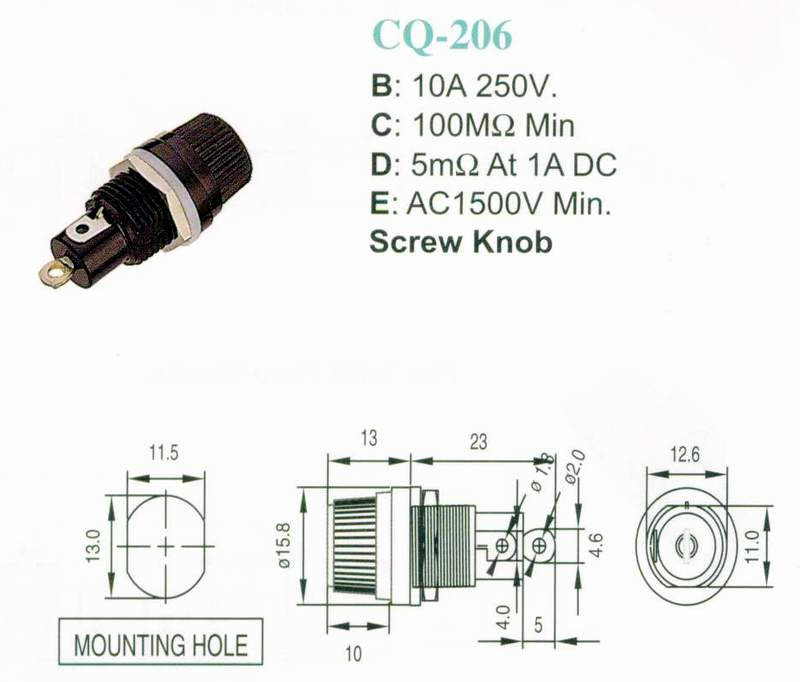

CQ-206A	CQ-206B	CQ-206D
Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :10mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Bayonet Knob*	Rated Current : 6.3A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Approvals :RU,CSA Bayonet Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Bayonet Knob*

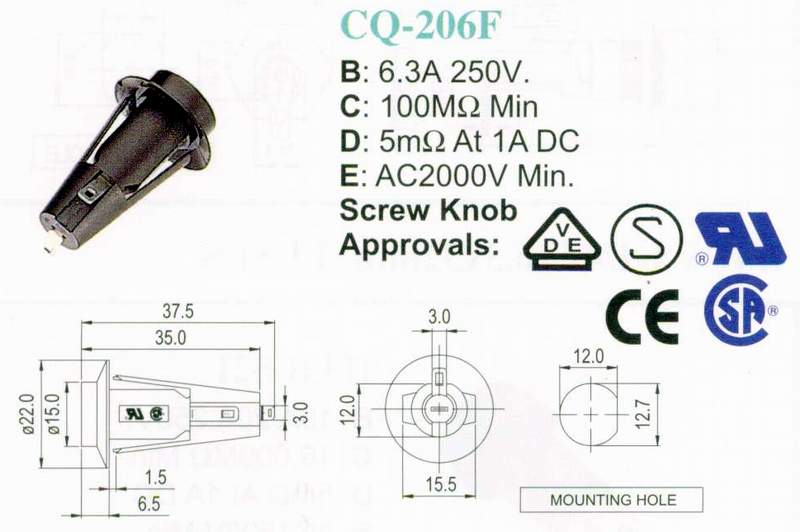

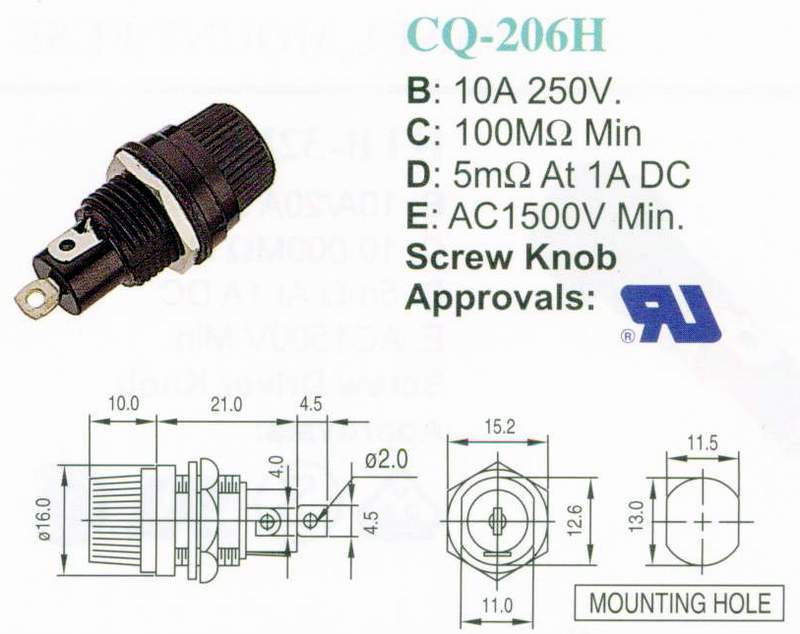

CQ-206E	CQ-206F	CQ-206H
Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Bayonet Knob	Rated Current : 6.3A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Approvals :RU,CSA,SEMKO Screw Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU Screw Knob*

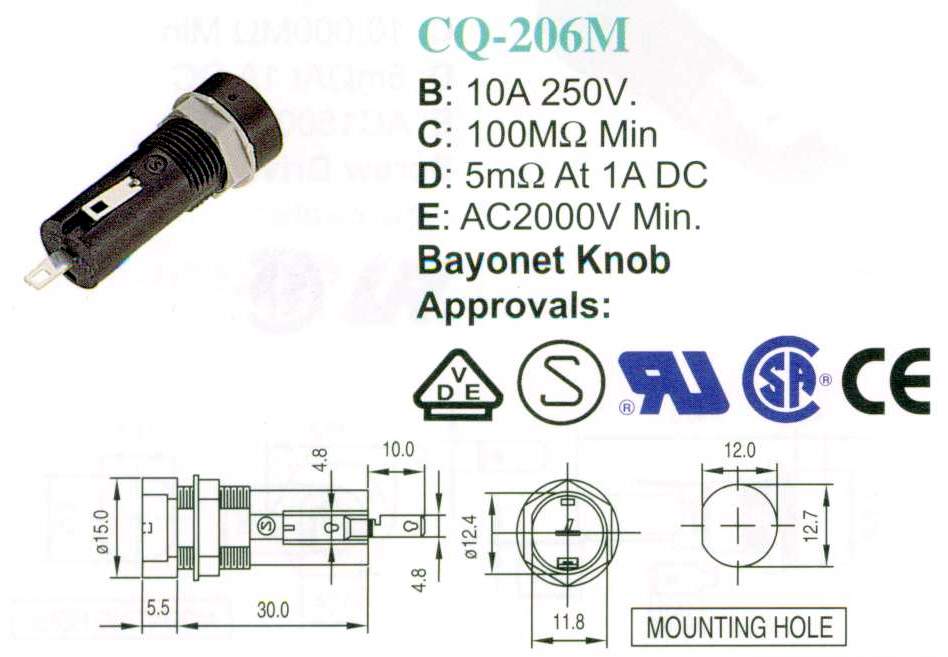

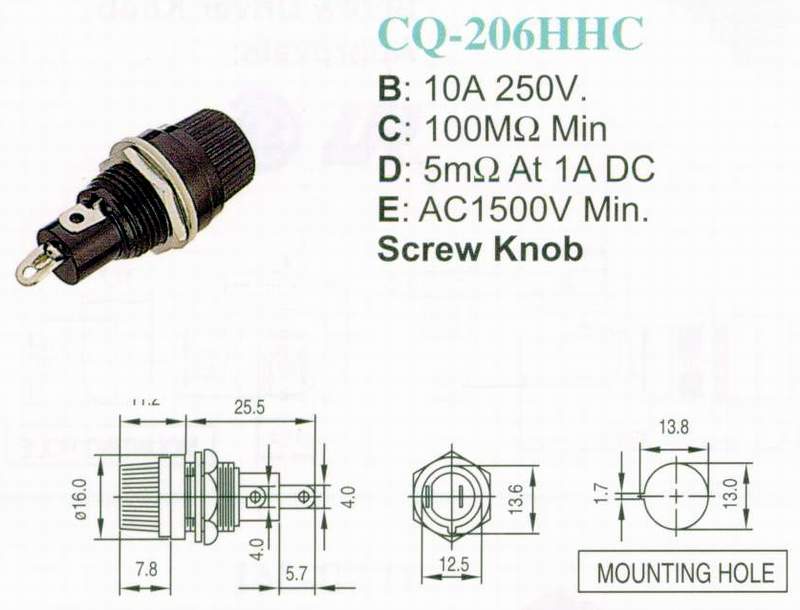

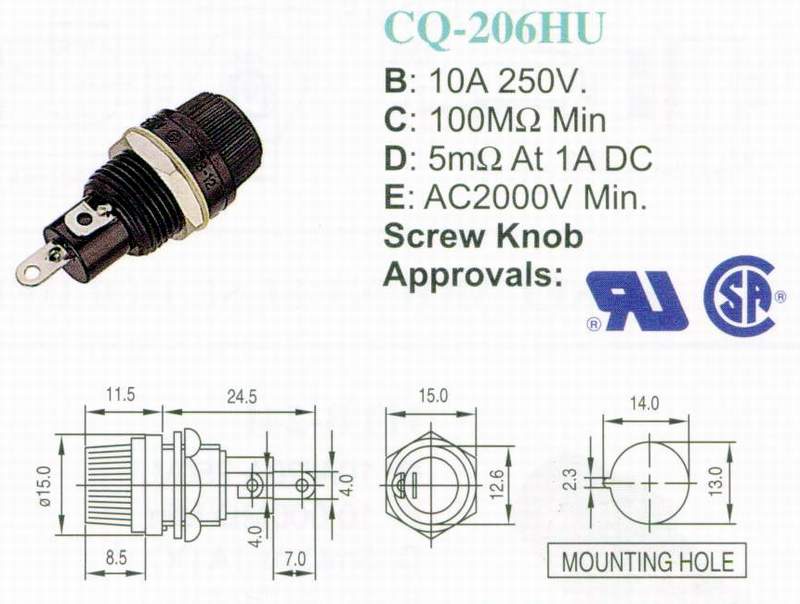

CQ-206HHC	CQ-206HU	CQ-206M
Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Screw Knob	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Screw Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Approvals :RU,CSA,SEMKO Bayonet Knob*

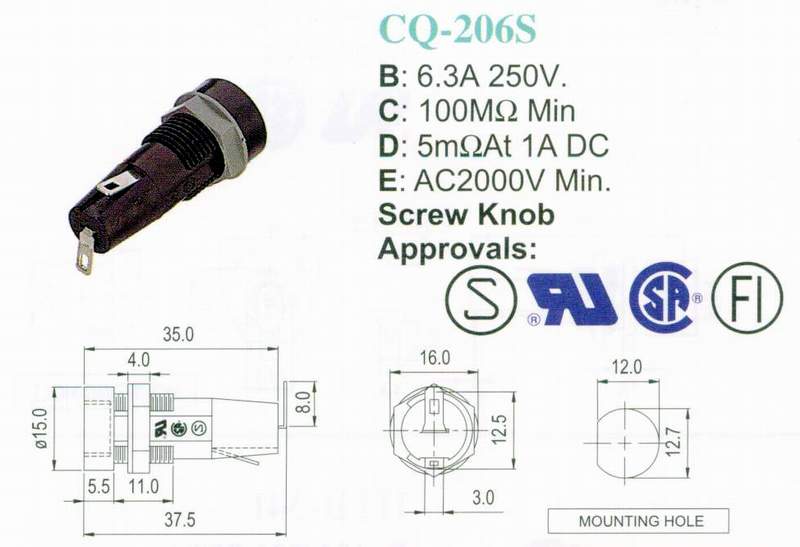

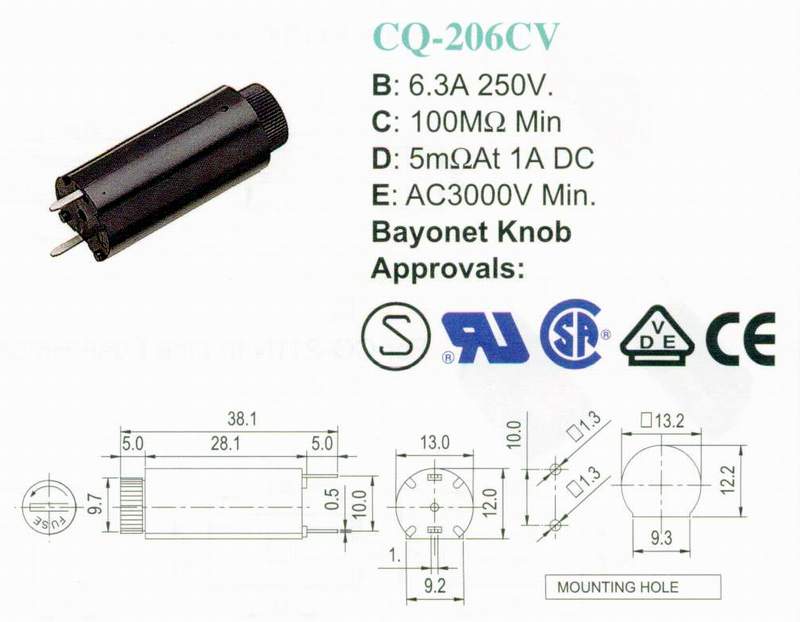

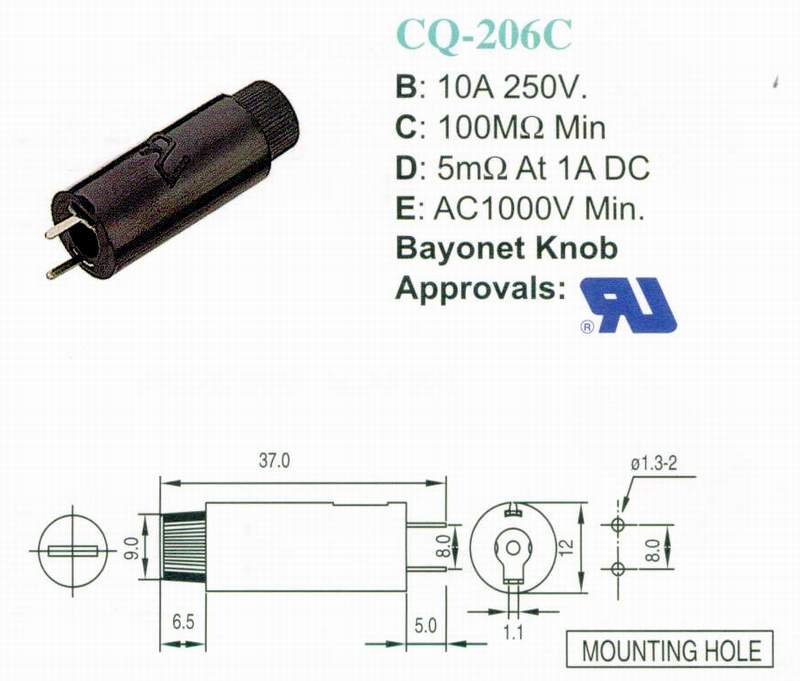

CQ-206S	CQ-206CV	CQ-206C
Rated Current : 6.3A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Approvals :RU,CSA,SEMKO,FEMKO Screw Knob*	Rated Current : 6.3A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Approvals :RU,CSA,SEMKO,FEMKO Bayonet Knob*	Rated Current : 6.3A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Approvals :RU Bayonet Knob*

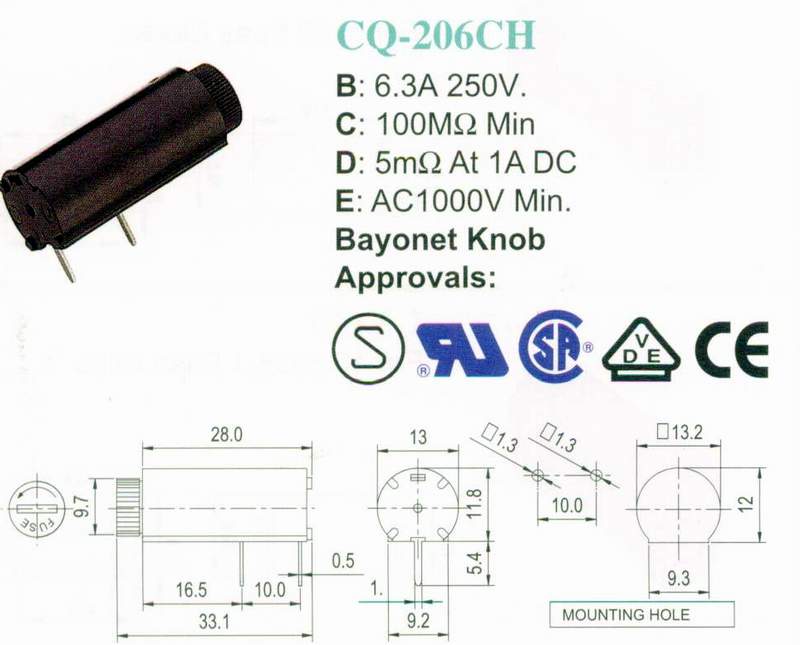

CQ-206CH
Rated Current : 6.3A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Approvals :RU,CSA,SEMKO,FEMKO Bayonet Knob*

PANEL MOUNT FUSE HOLDER FOR 1/4"x1-1/4(6.3x32mm) FUSES

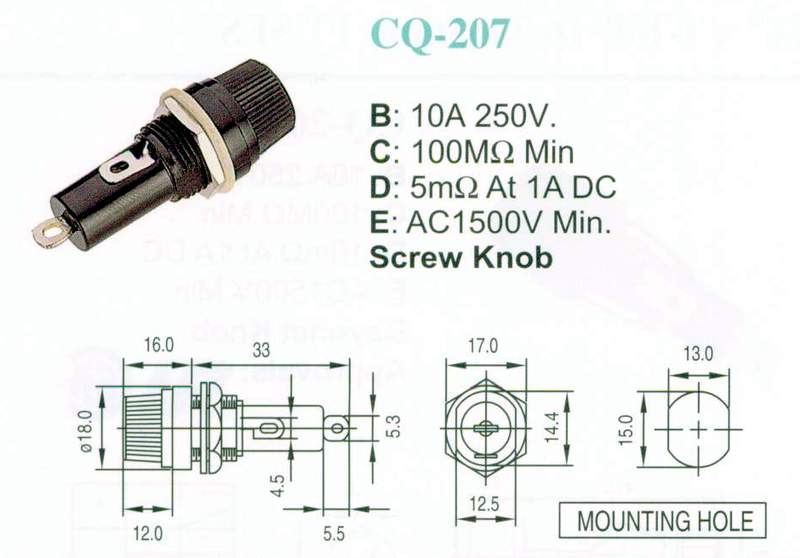

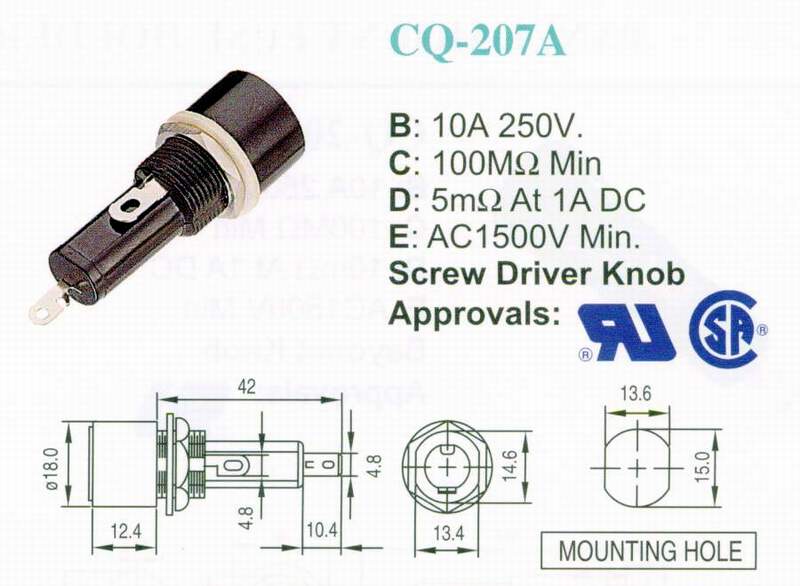

CQ-207	CQ-207A	CQ-207D
Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Screw Knob	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Screw Driver Knob*	Rated Current : 15A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Bayonet Knob*

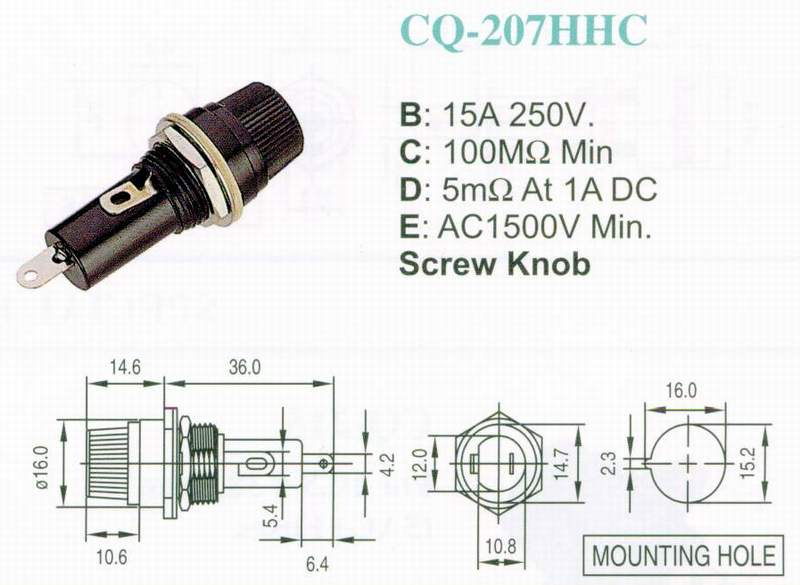

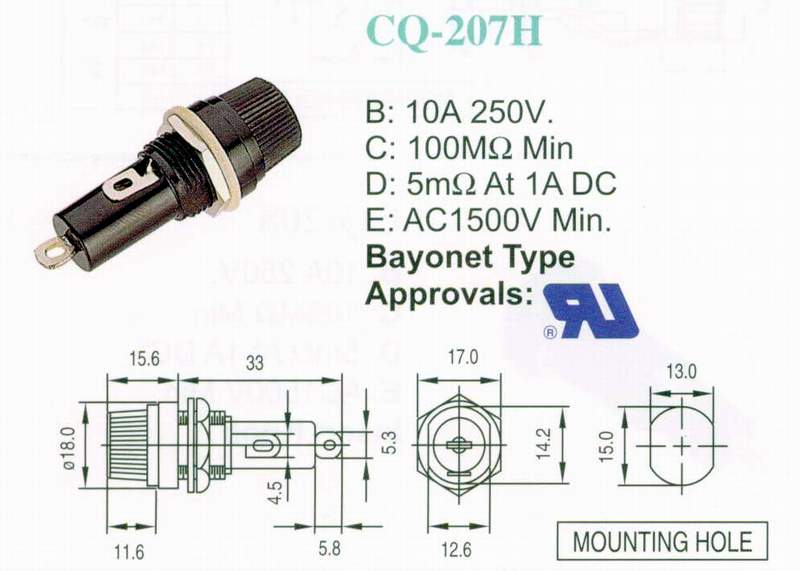

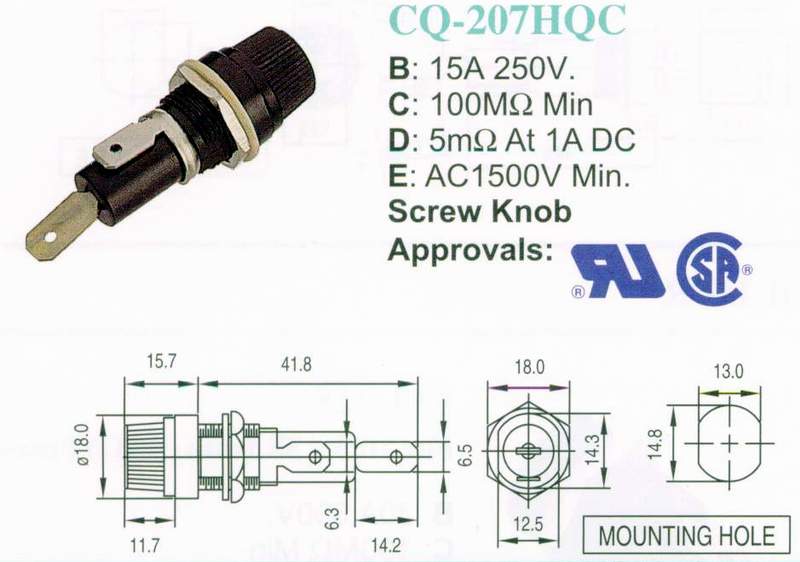

CQ-207H	CQ-207HHC	CQ-207HQC
Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU Bayonet Type*	Rated Current : 15A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Screw Knob	Rated Current : 15A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Screw Knob

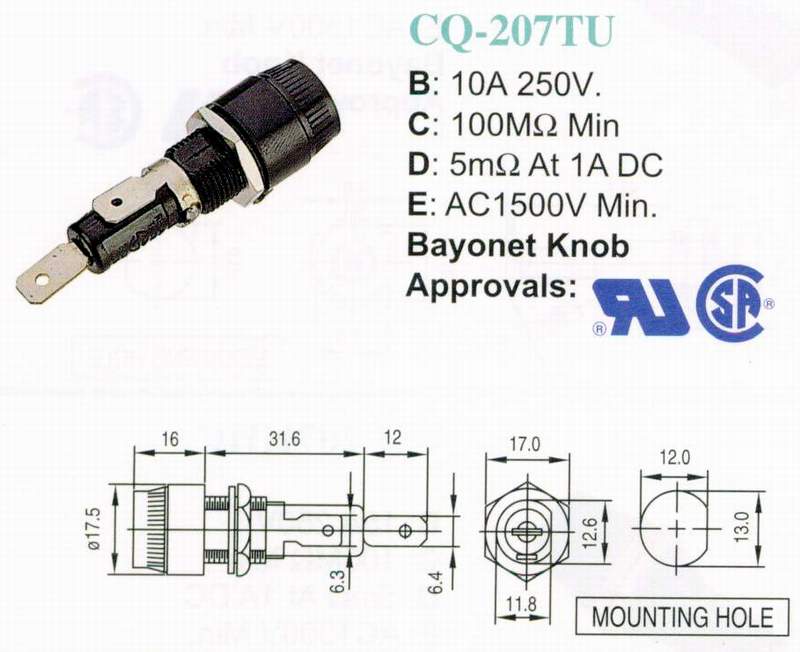

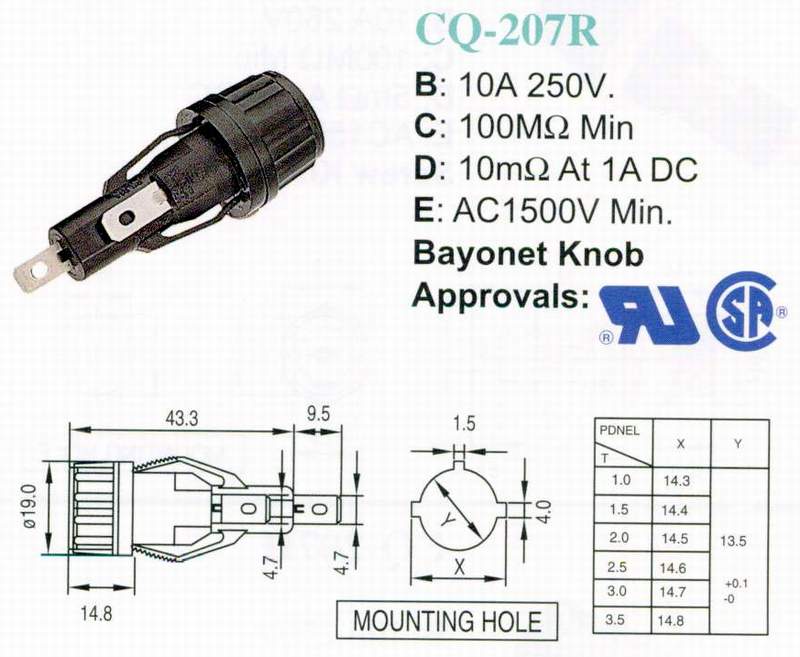

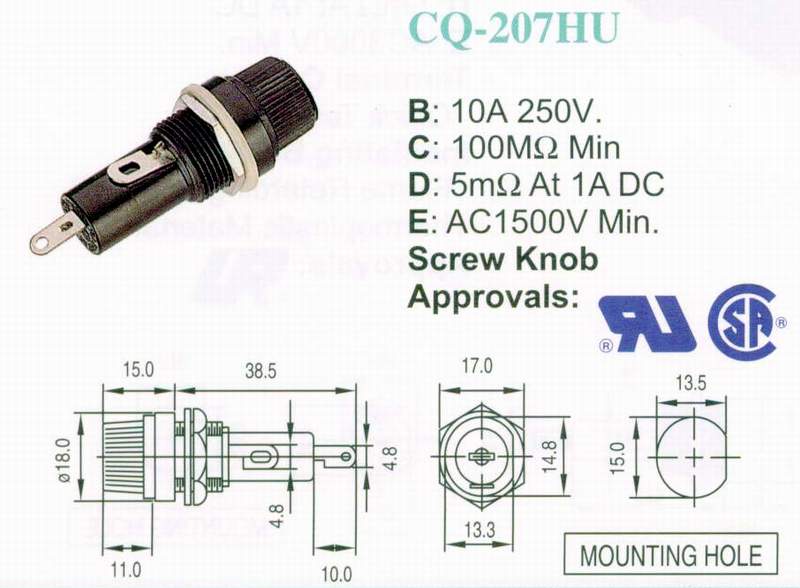

CQ-207HU	CQ-207R	CQ-207TU
Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Screw Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :10mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Bayonet Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA Bayonet Knob*

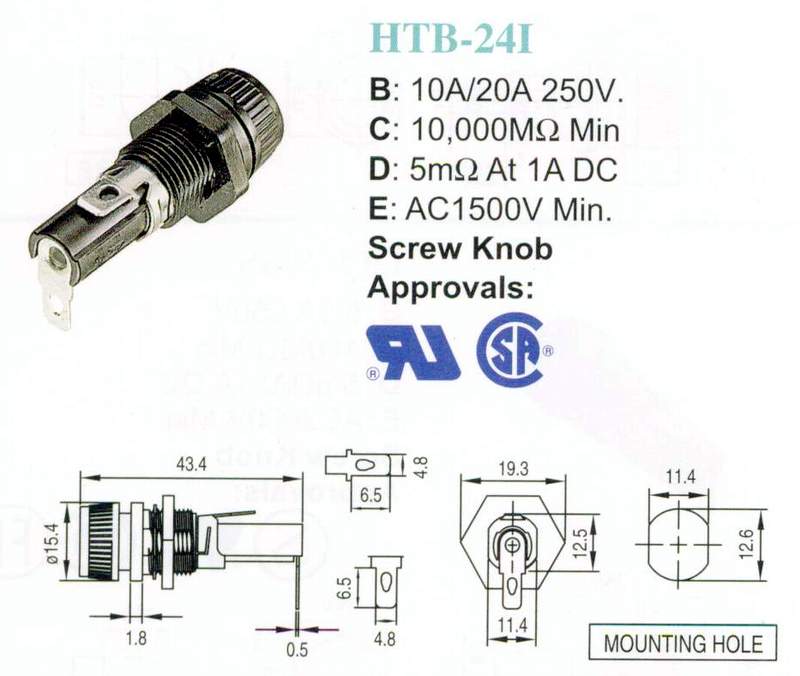

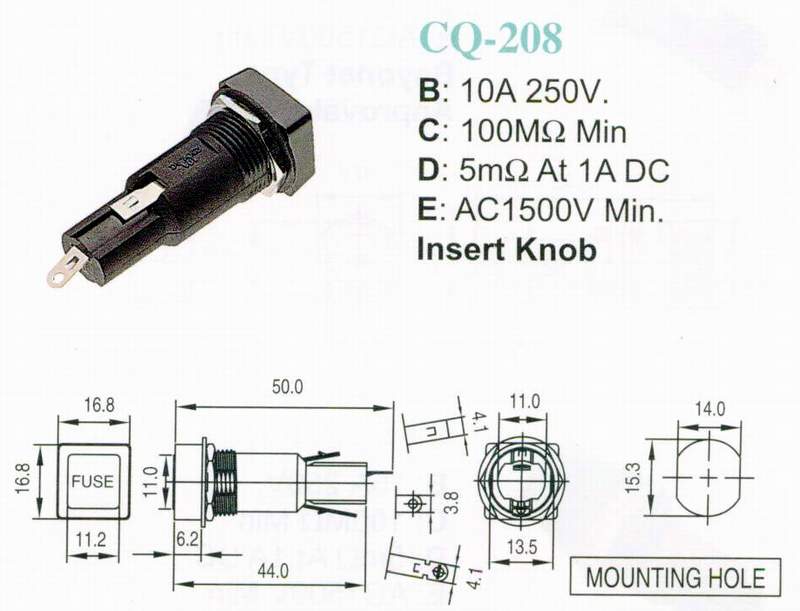

CQ-207B	CQ-208	HTB-24I
Rated Current : 15A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Approvals :RU,CSA Bayonet Knob*	Rated Current : 10A 250V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Insert Knob	Rated Current : 10A/20A 250V Insulation Resistance At 500VDC :10,000ΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA,VDE,SEMKO Screw Knob*

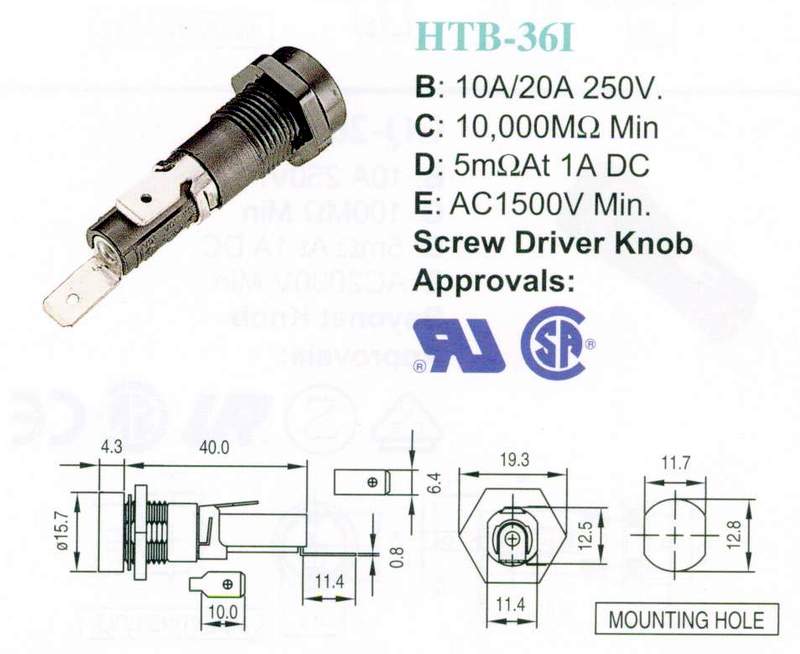

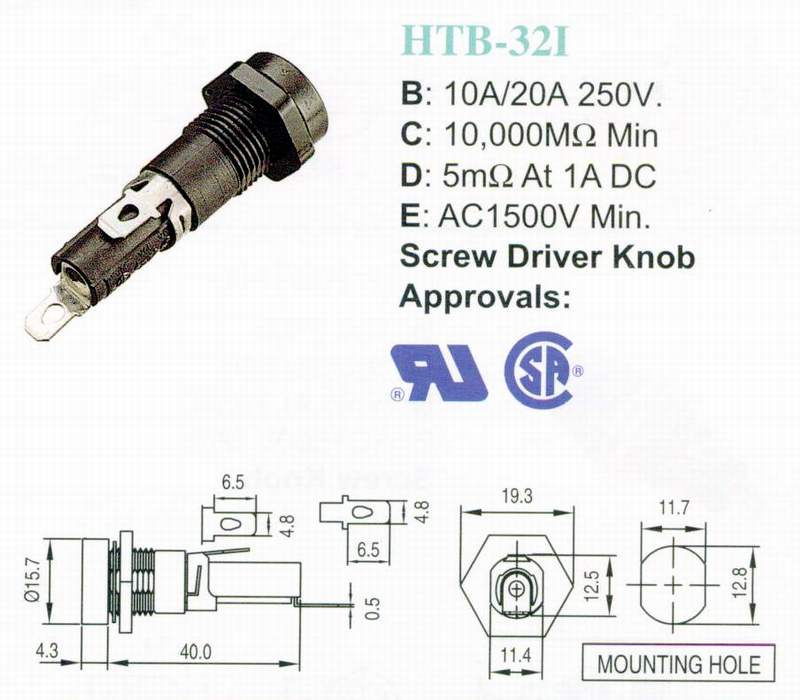

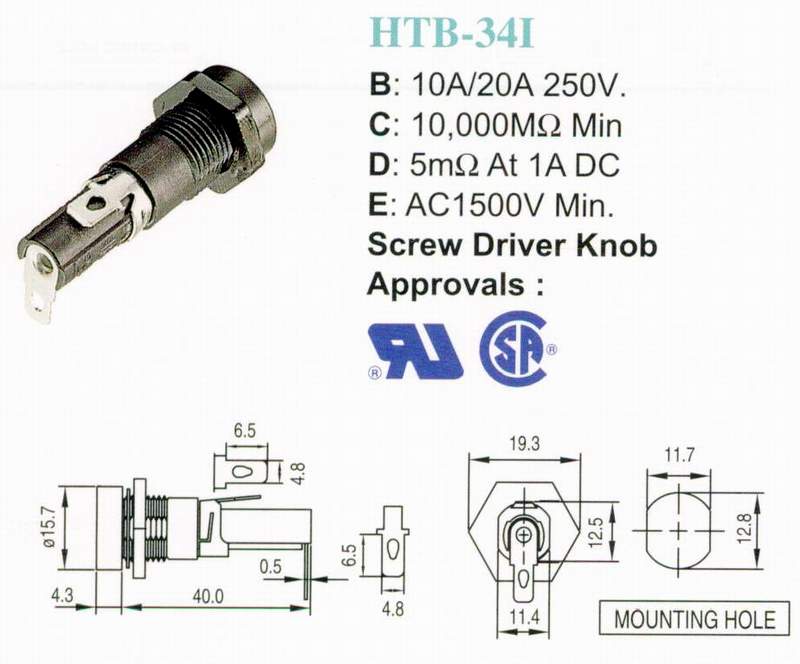

HTB-32I	HTB-34I	HTB-36I
Rated Current : 10A/20A 250V Insulation Resistance At 500VDC :10,000ΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA,VDE,SEMKO Screw Driver Knob*	Rated Current : 10A/20A 250V Insulation Resistance At 500VDC :10,000ΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA,VDE,SEMKO Screw Driver Knob*	Rated Current : 10A/20A 250V Insulation Resistance At 500VDC :10,000ΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Approvals :RU,CSA,VDE,SEMKO Screw Driver Knob*

FUSE BLOCKS FOR 5x20mm FUSES

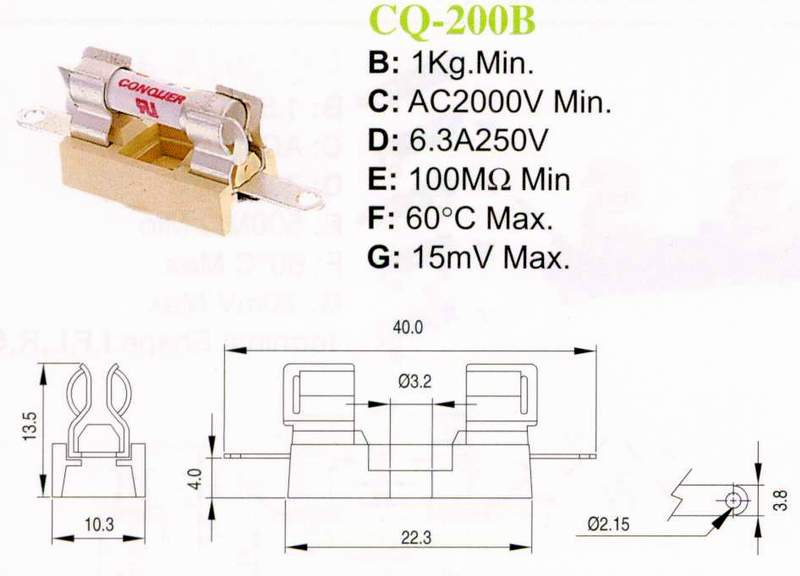

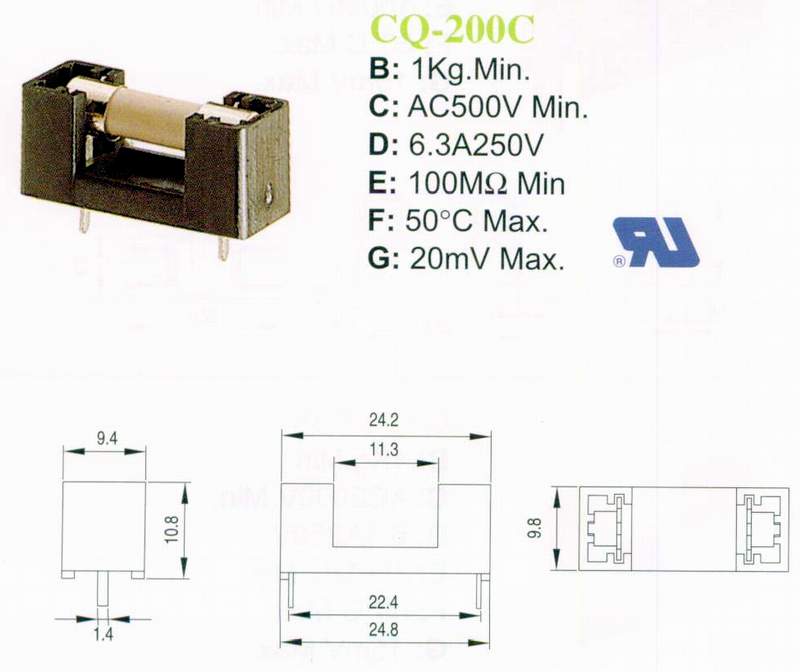

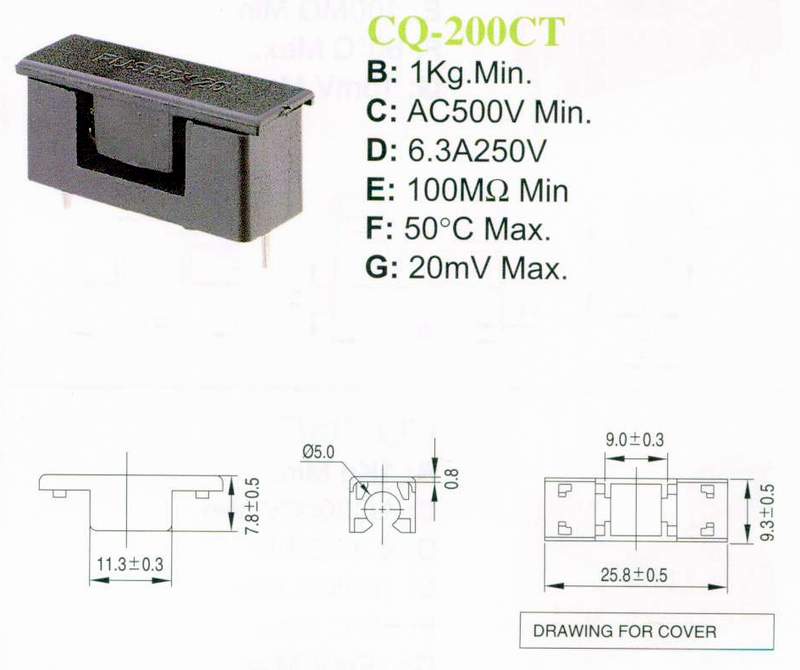

CQ-200C	CQ-200CT	CQ-200B
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000VMin. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.

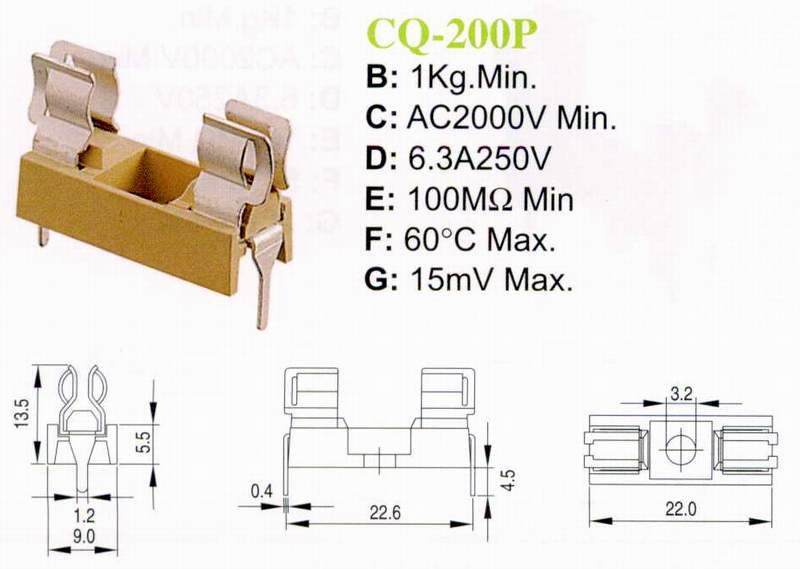

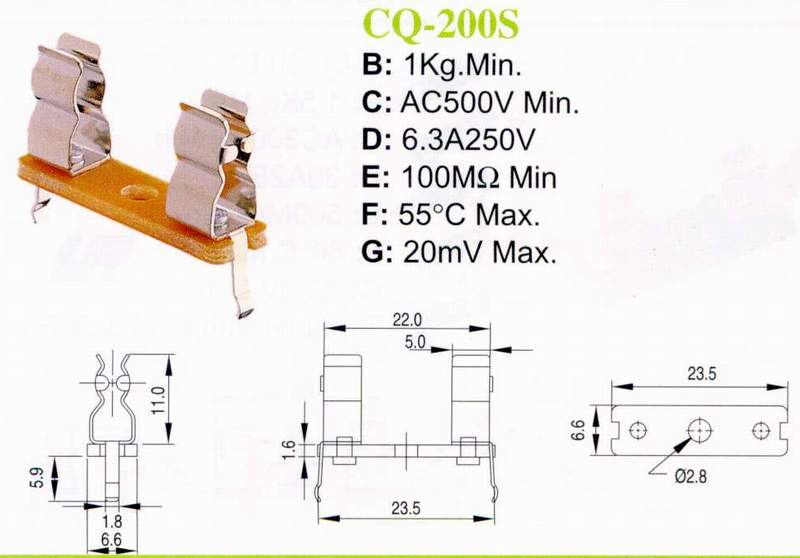

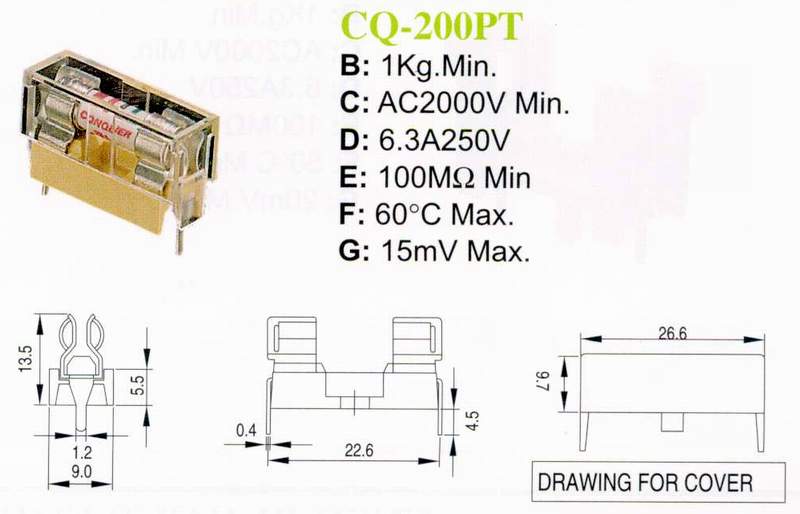

CQ-200S	CQ-200P	CQ-200PT
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:55°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:00MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.

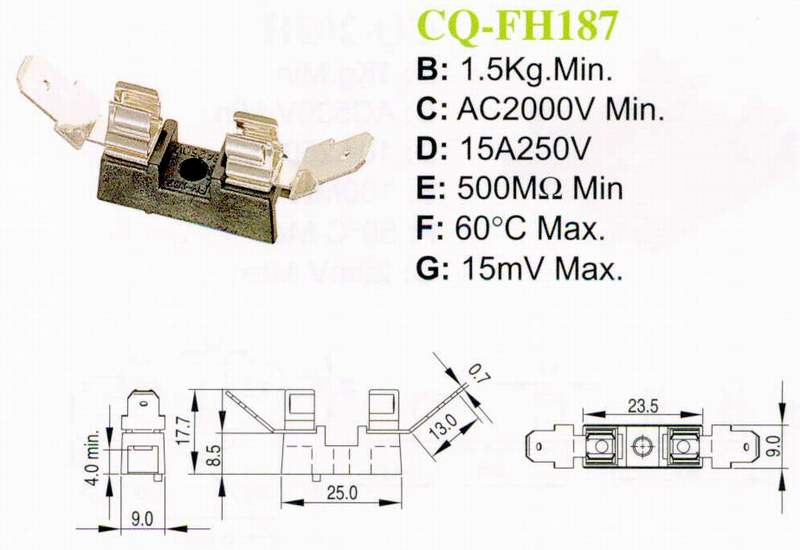

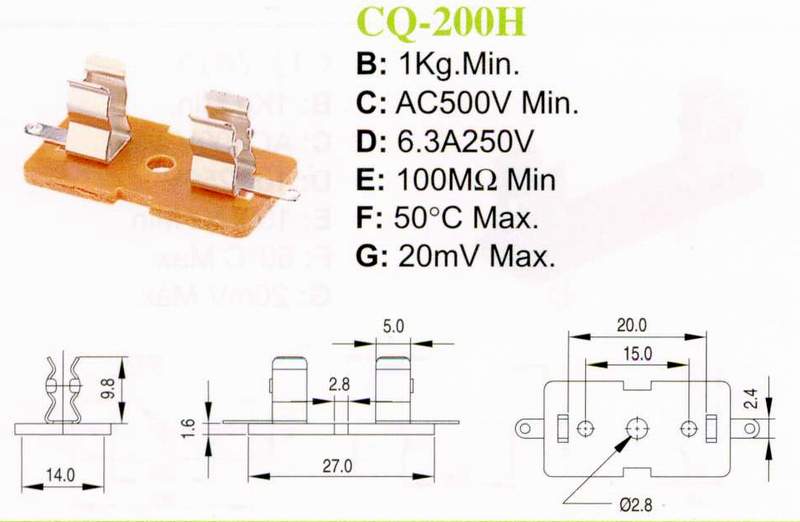

CQ-200N	CQ-FH187	CQ-200H
Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 15A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 15A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.

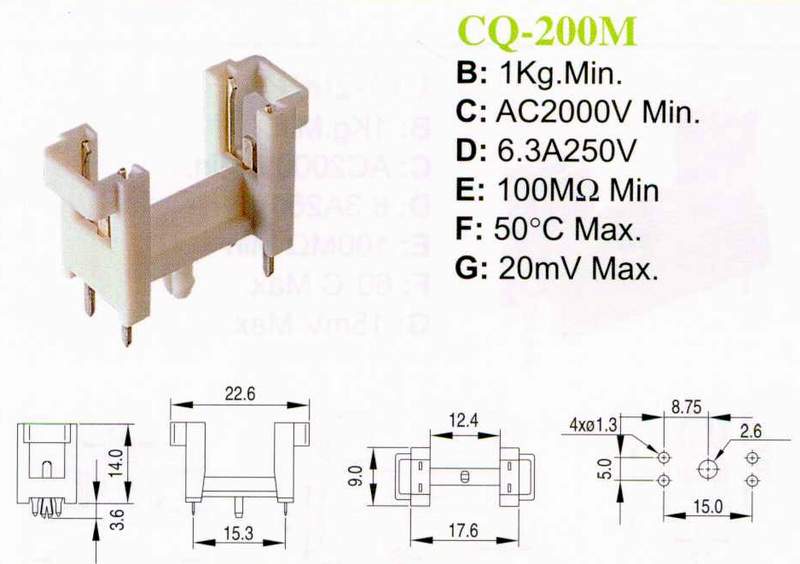

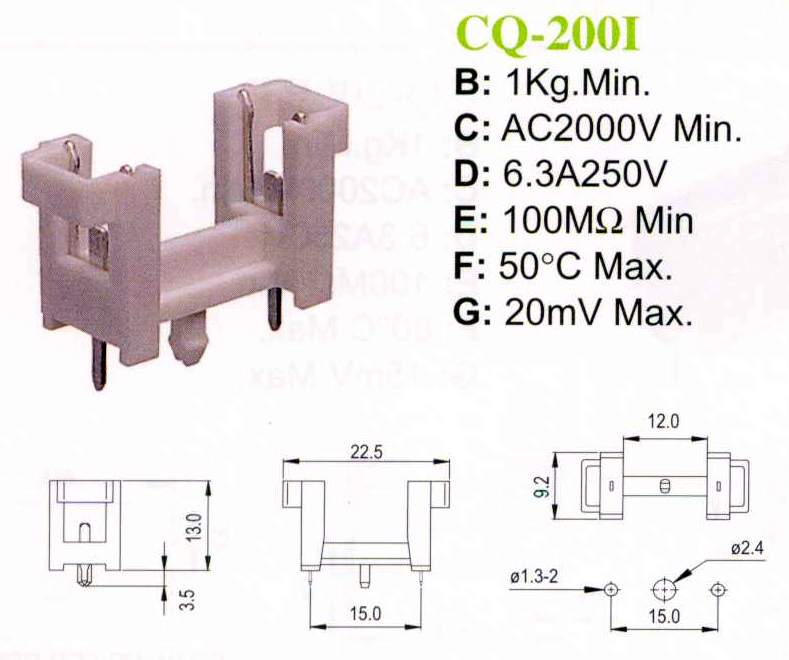

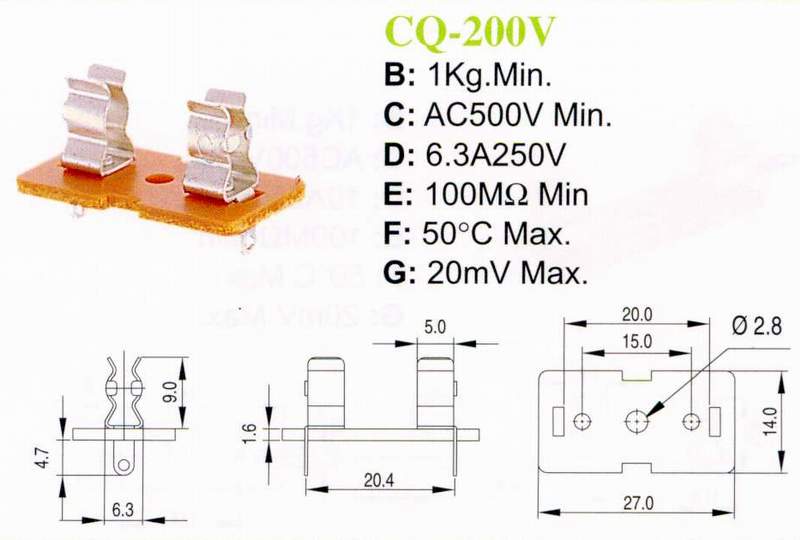

CQ-200V	CQ-200I	CQ-200M
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.

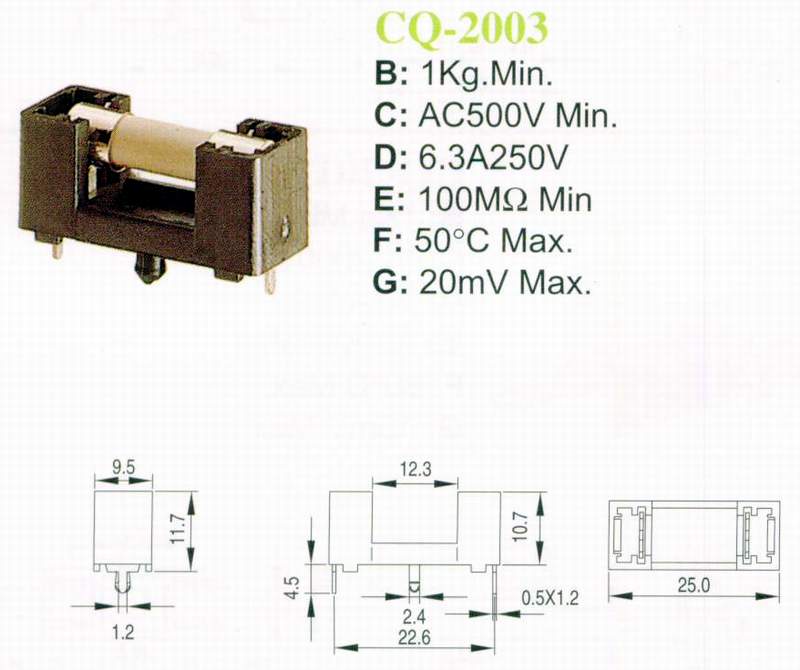

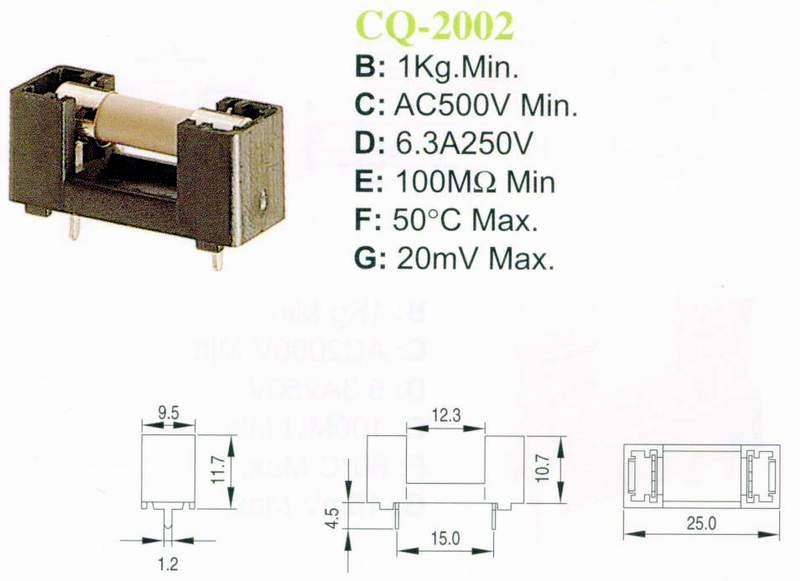

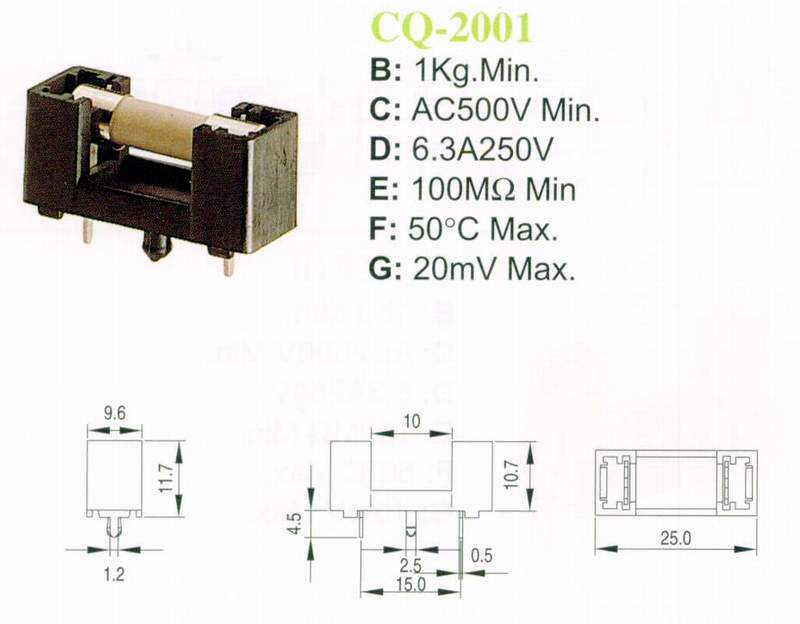

CQ-2001	CQ-2002	CQ-2003
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.

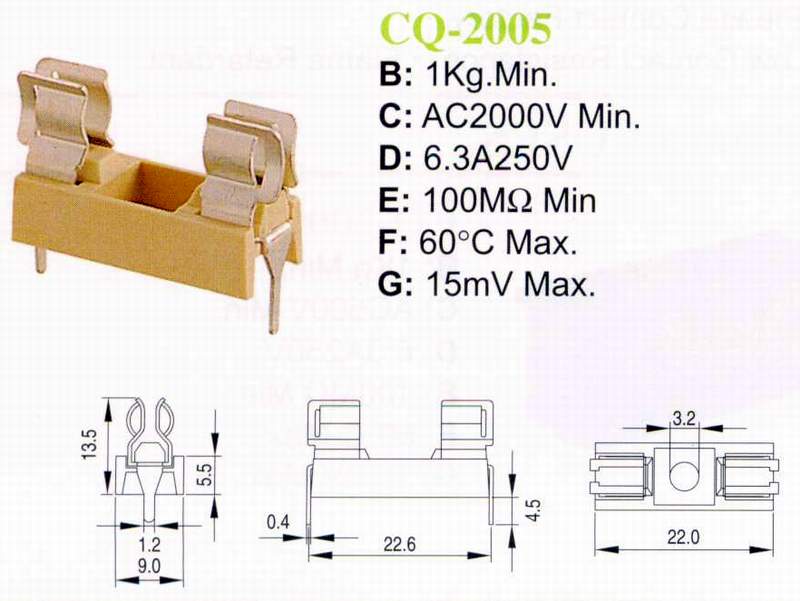

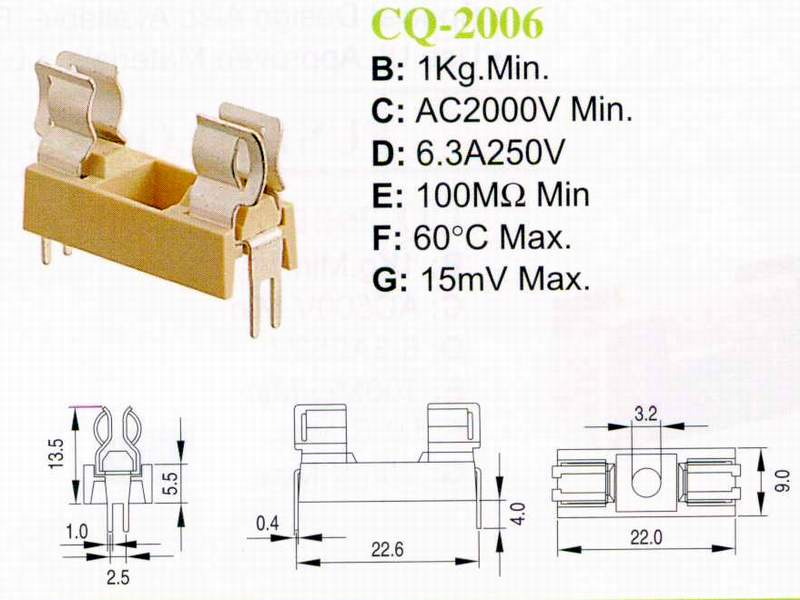

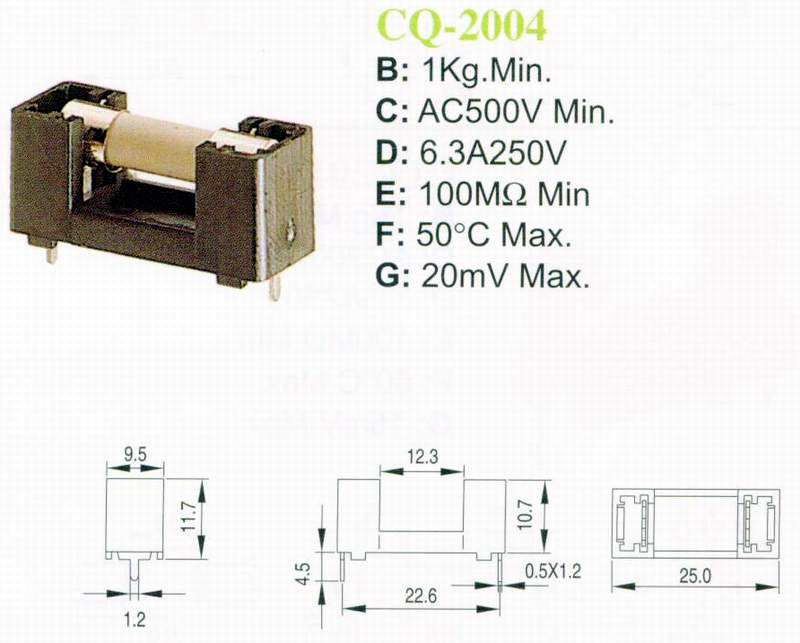

CQ-2004	CQ-2005	CQ-2006
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.

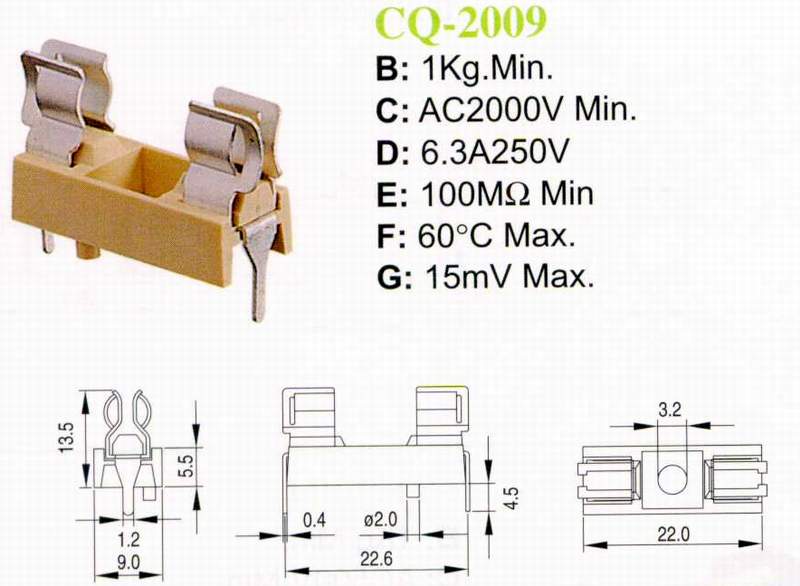

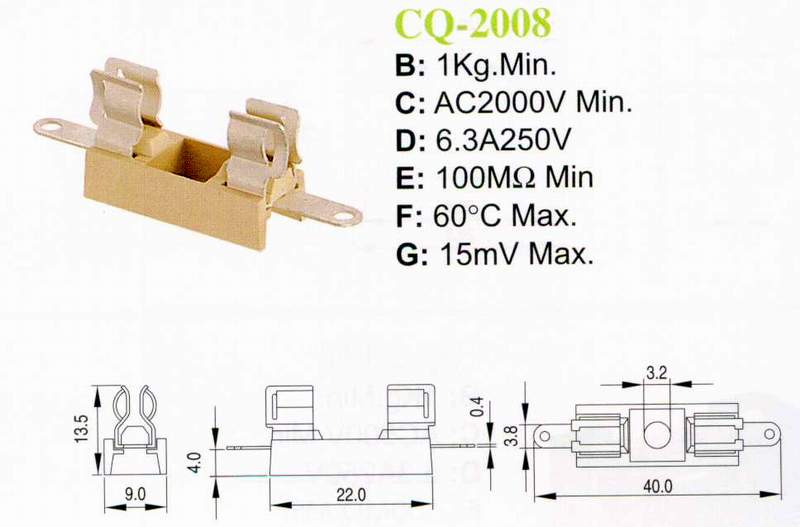

CQ-2007	CQ-2008	CQ-2009
Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.

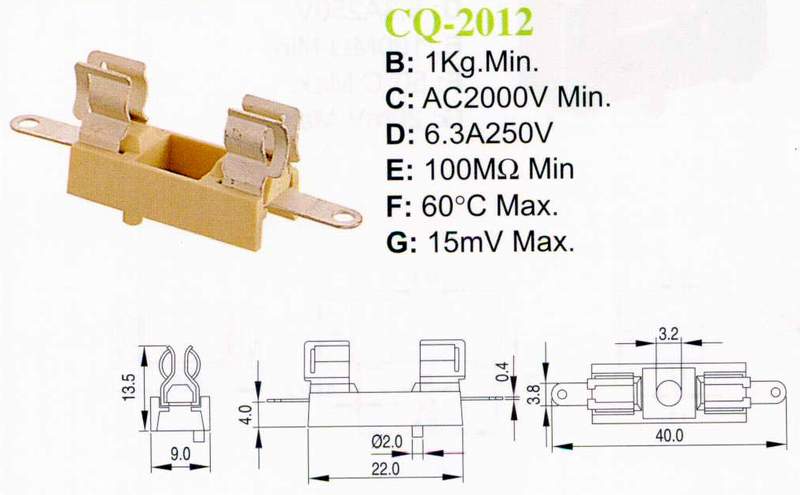

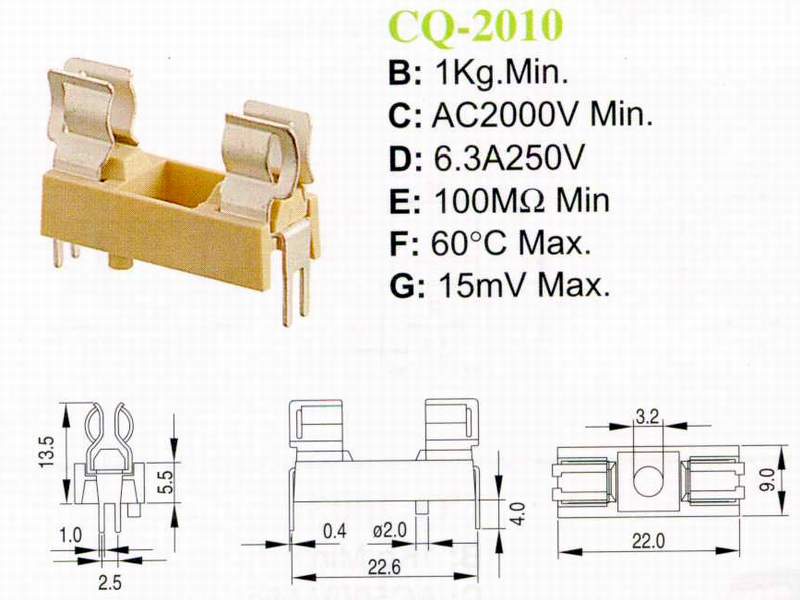

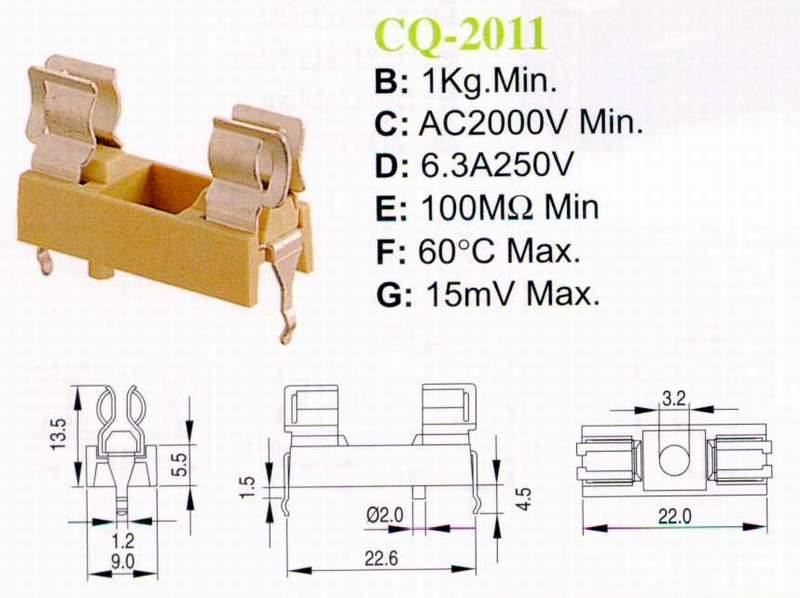

CQ-2010	CQ-2011	CQ-2012
Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 6.3A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.

FUSE BLOCKS FOR 1/4"x1-1/4 (6.3x32mm) FUSES

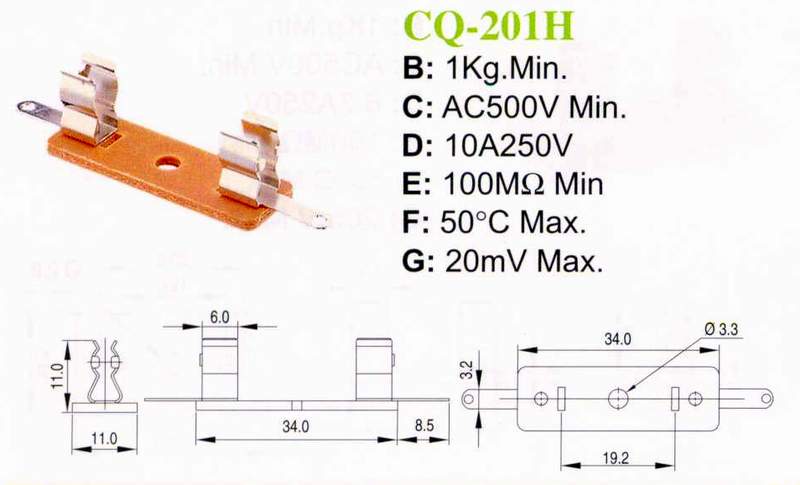

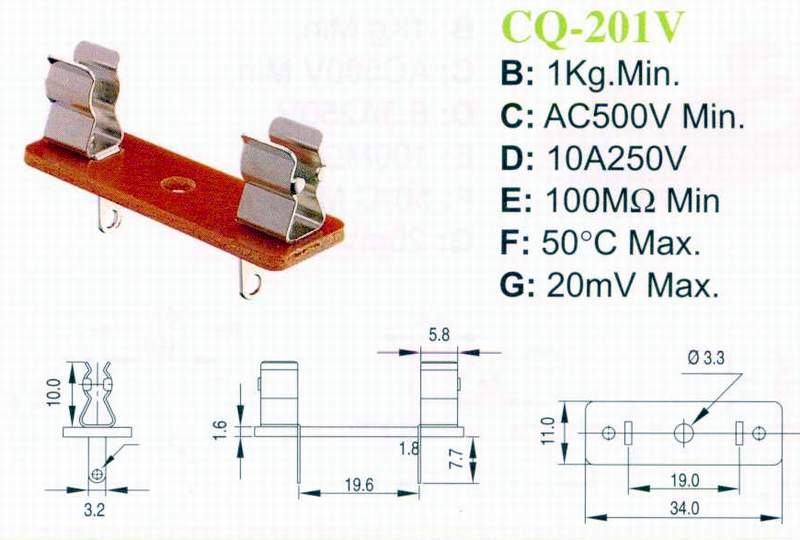

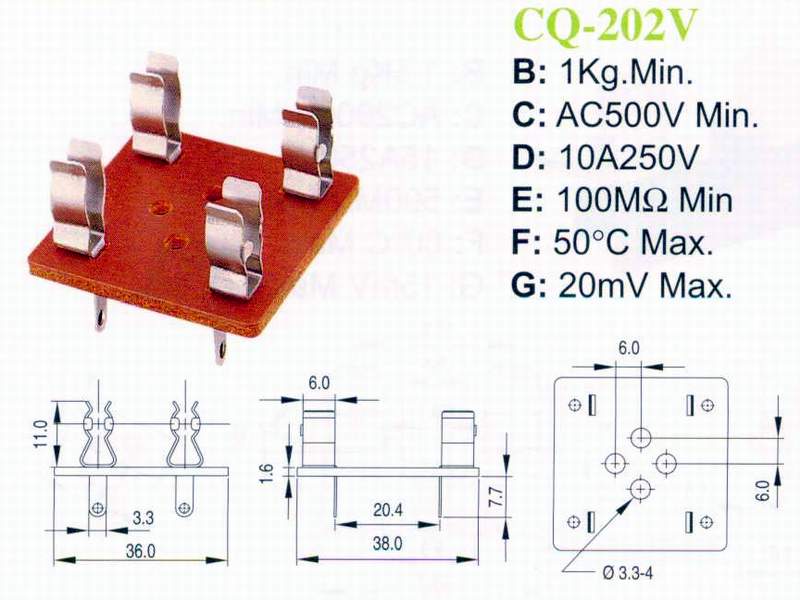

CQ-201H	CQ-201V	CQ-202V
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC 500V Min. Suitable Rated Current : 10A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC 500V Min. Suitable Rated Current : 10A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC 500V Min. Suitable Rated Current : 10A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.

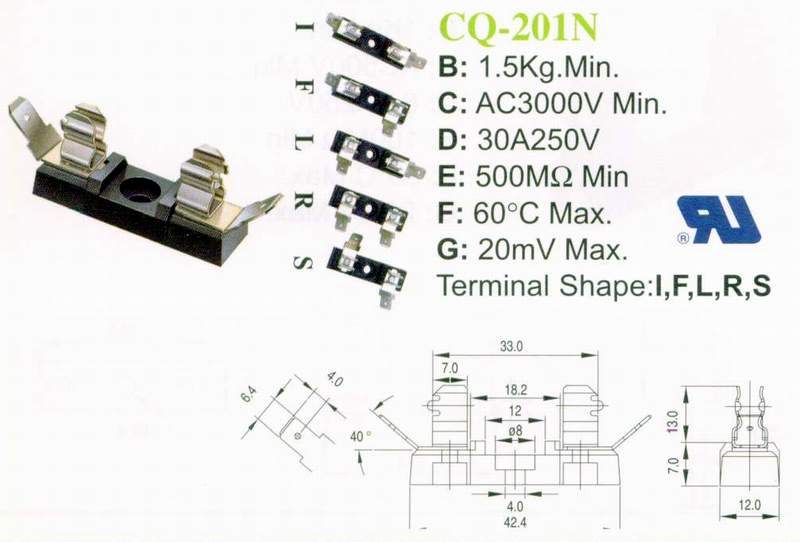

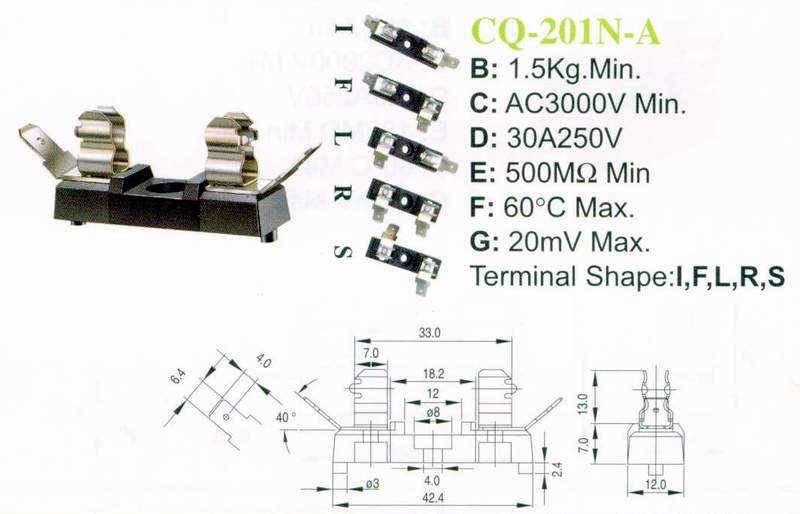

CQ-201N	CQ-201N-A
Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC3000V Min. Suitable Rated Current : 30A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.	Insertion & Extrraction Force:1.5Kg.Min. Dielectric Strength For 60 Sec:AC3000V Min. Suitable Rated Current : 30A250V Insulation Resistance At500VDC:500MΩMin Temperature Rise:60°C Max. Voltage Drop:15mV Max.

P.C. BOARD MOUNT FUSE CLIPS FOR 5mm DIAMETER FUSES

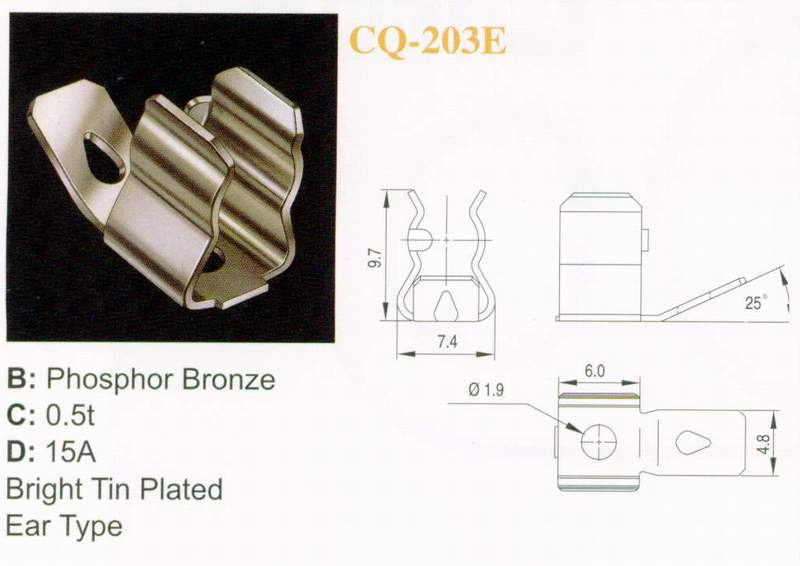

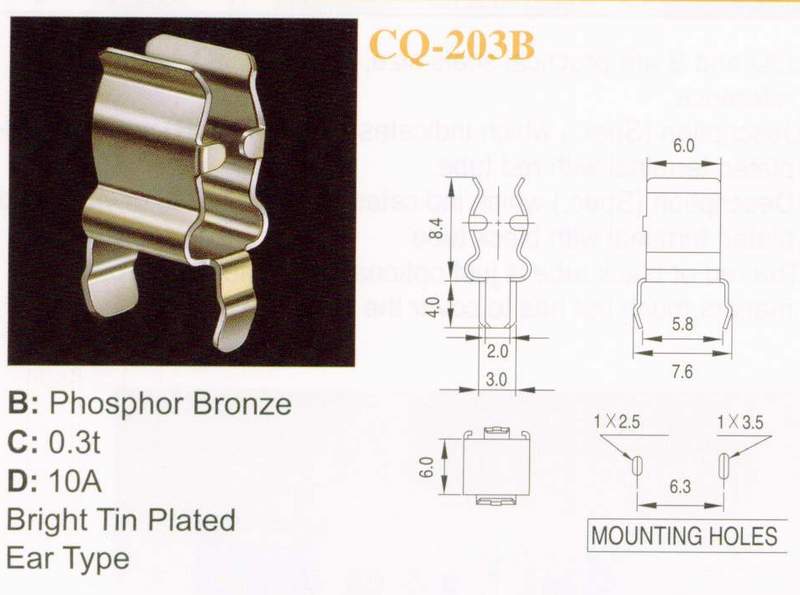

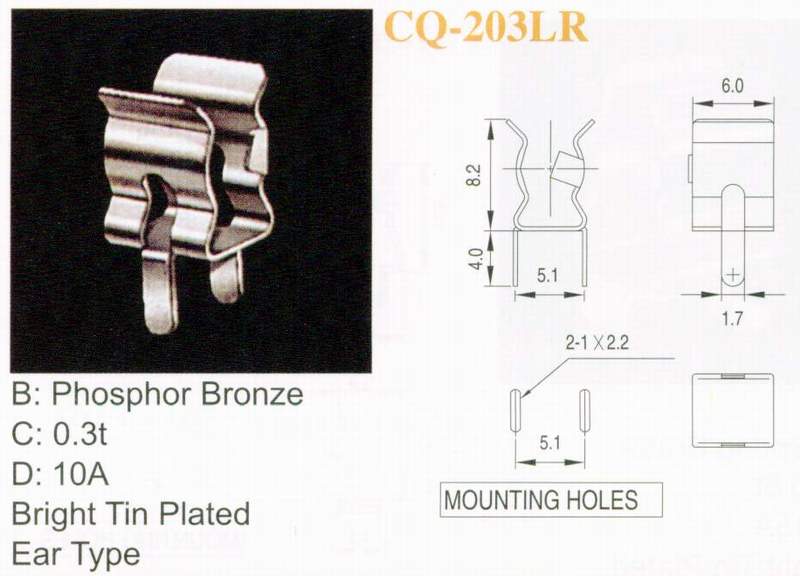

CQ-203B	CQ-203E	CQ-203LR
Metal Material : Phosphor Bronze Material Thickness : 0.3t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Phosphor Bronze Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Ear Type	Metal Material : Phosphor Bronze Material Thickness : 0.3t *Suitable Rated Current : 10A Bright Tin Plated Ear Type

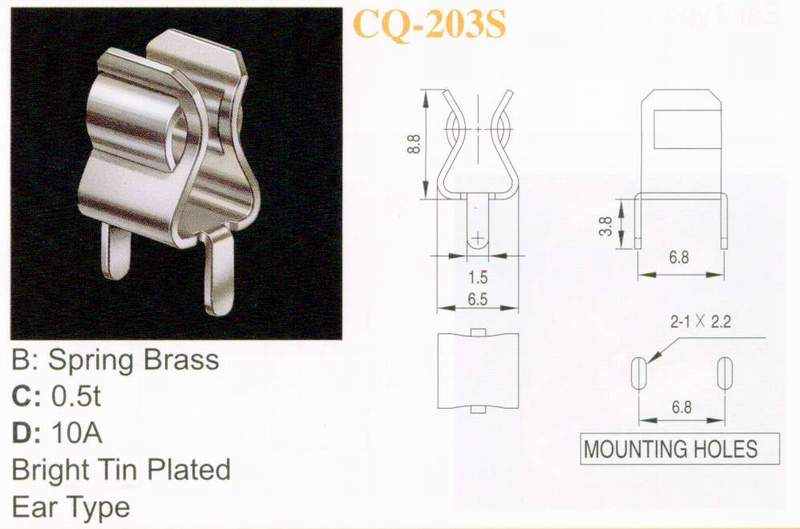

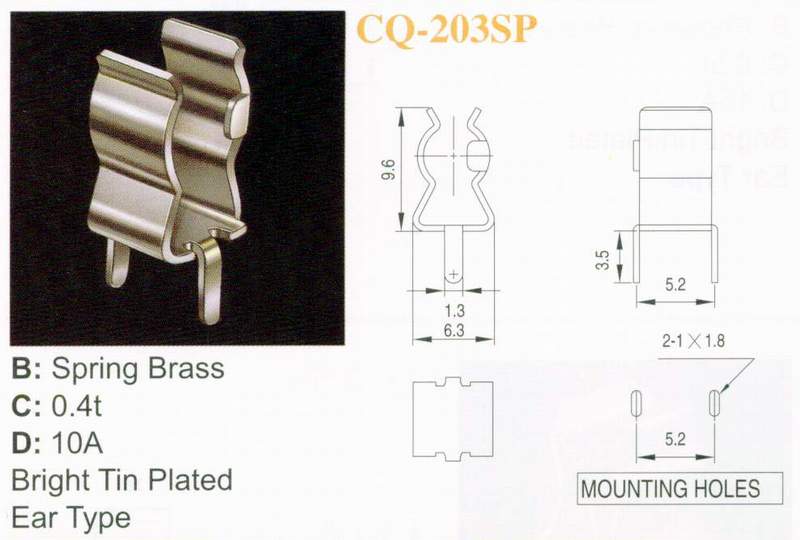

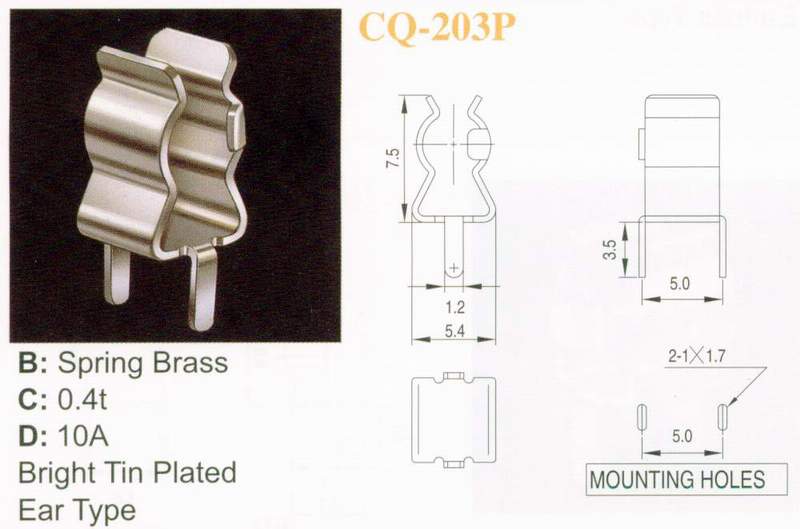

CQ-203P	CQ-203SP	CQ-203S
Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Ear Type

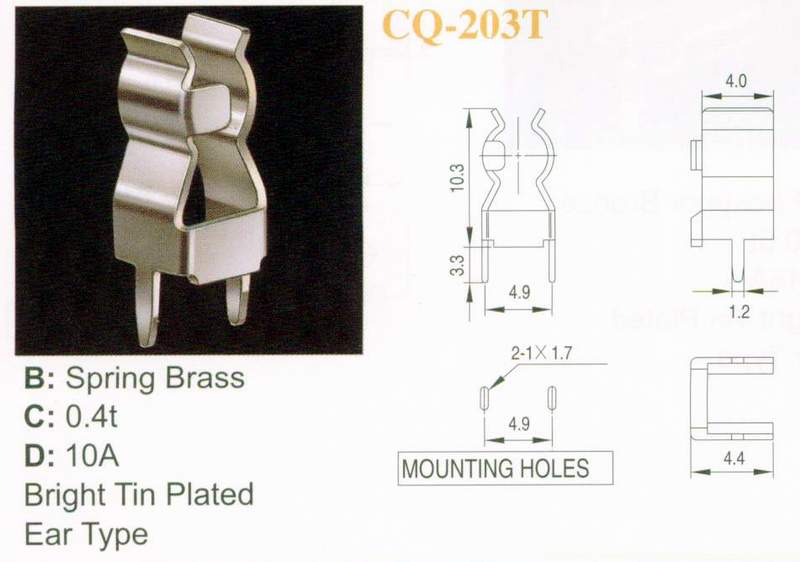

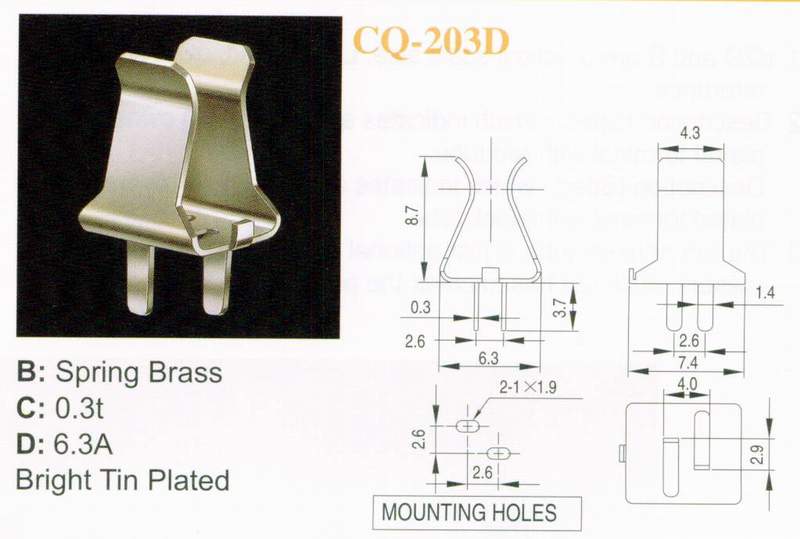

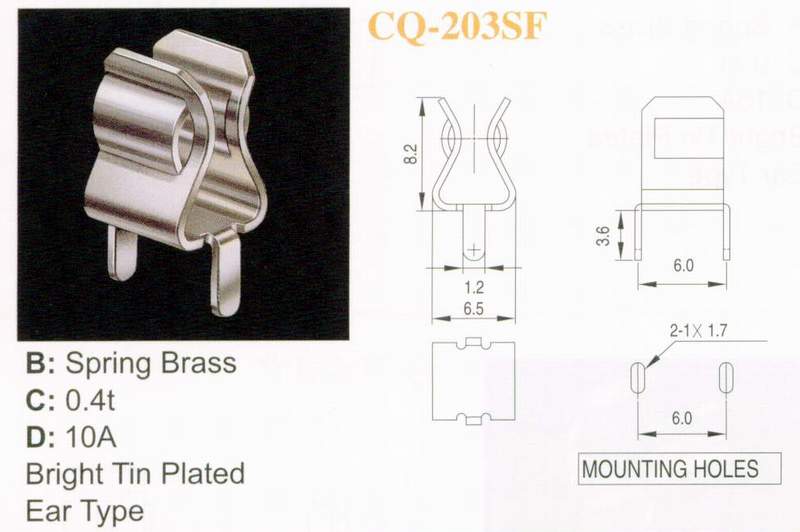

CQ-203SF	CQ-203T	CQ-203D
Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.3t *Suitable Rated Current : 15A Bright Tin Plated

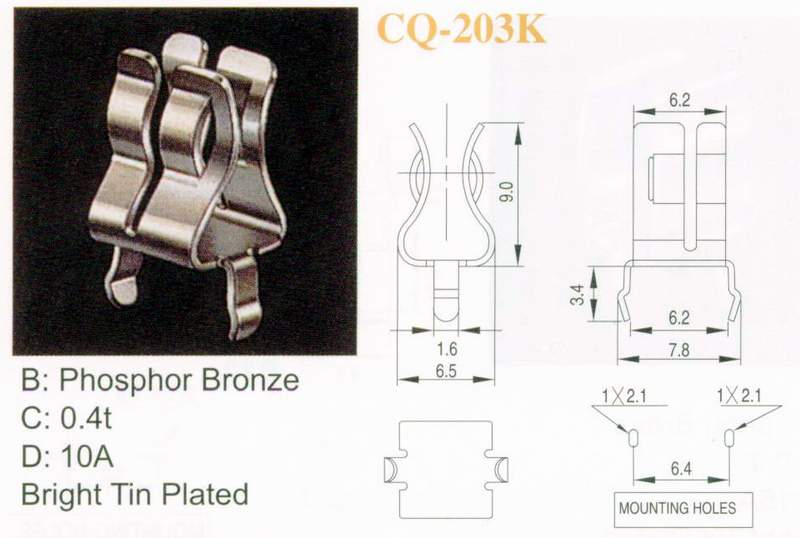

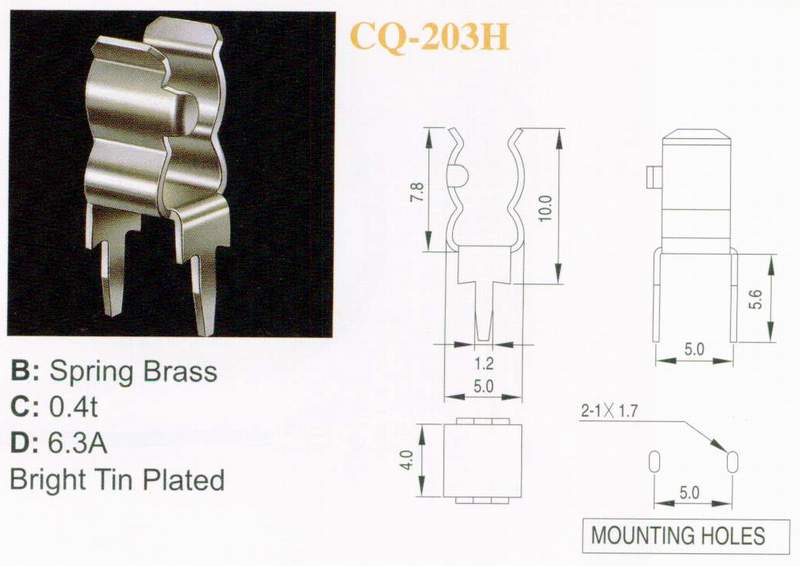

CQ-203K	CQ-203H
Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated	Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 6.3A Bright Tin Plated

P.C. BOARD MOUNT SPECIAL FUSE CLIPS

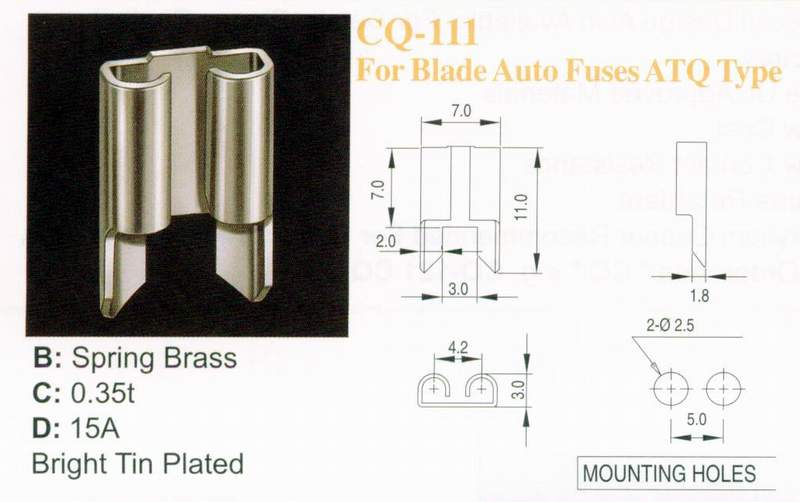

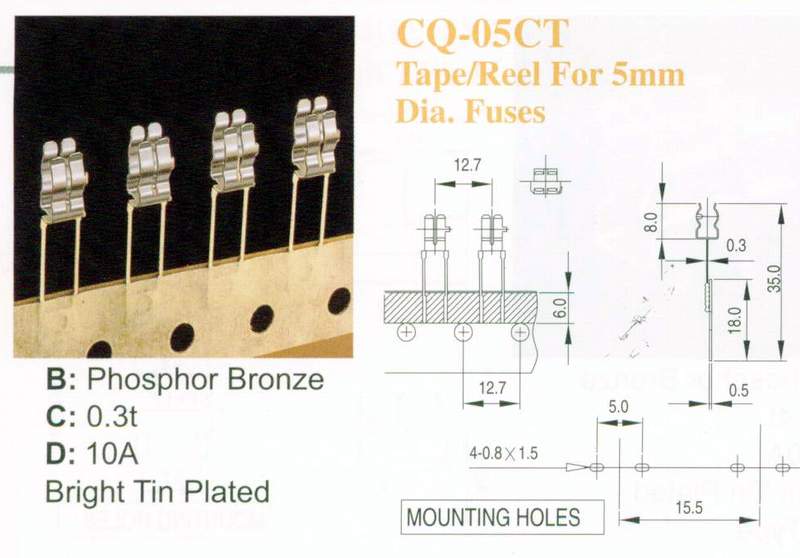

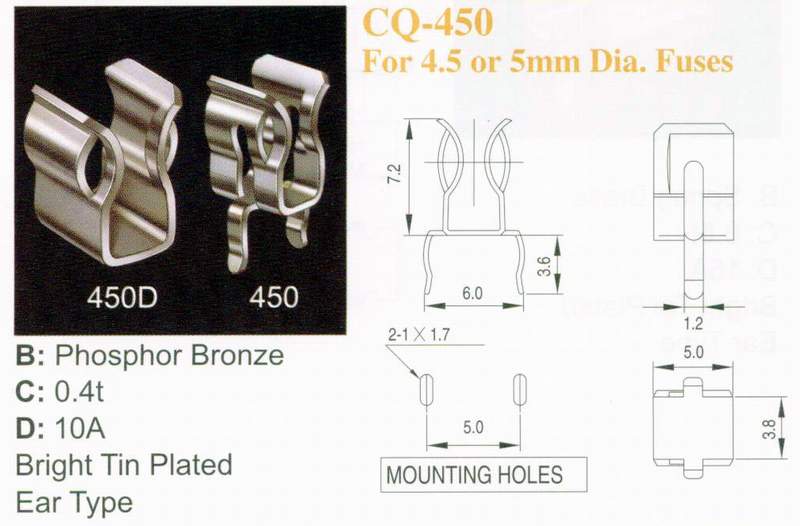

CQ-450	CQ-111	CQ-05CT
For 4.5 or 5mm Dia. Fuses	For Blade Auto Fuses ATQ Type	Tape/Reel For 5mm Dia. Fuses
Metal Material : Phosphor Bronze Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.35t *Suitable Rated Current : 15A Bright Tin Plated	Metal Material : Phosphor Bronze Material Thickness : 0.3t *Suitable Rated Current : 10A Bright Tin Plated Ear Type

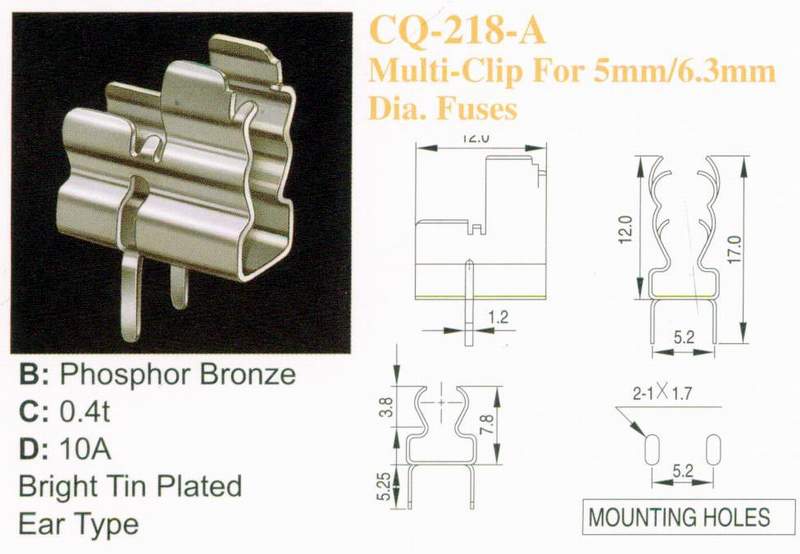

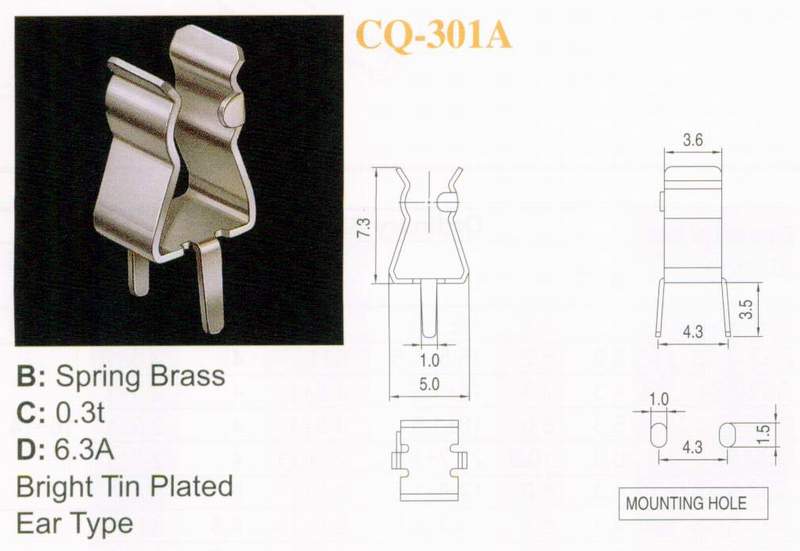

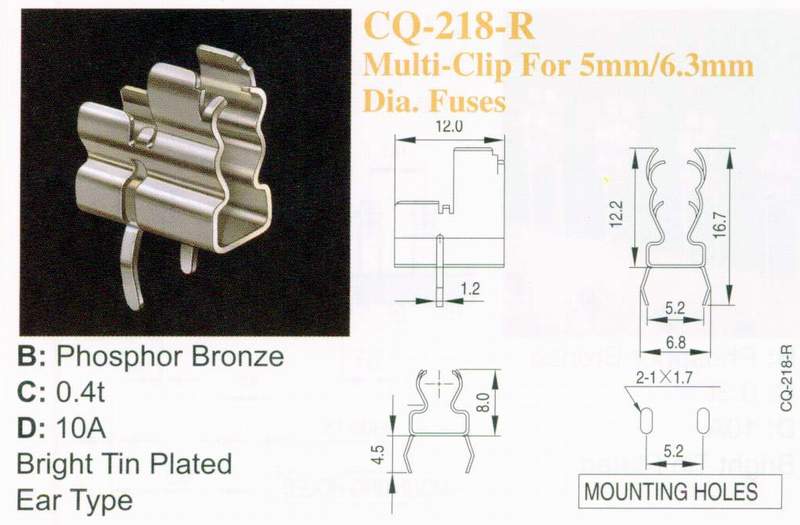

CQ-301A	CQ-218-A	CQ-218-R
For 3.6mm Dia. Fuses	Multi-Clip For 5mm/6.3mm Dia.Fuses	Multi-Clip For 5mm/6.3mm Dia.Fuses
Metal Material : Spring Brass Material Thickness : 0.3t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Phosphor Bronze Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Phosphor Bronze Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type

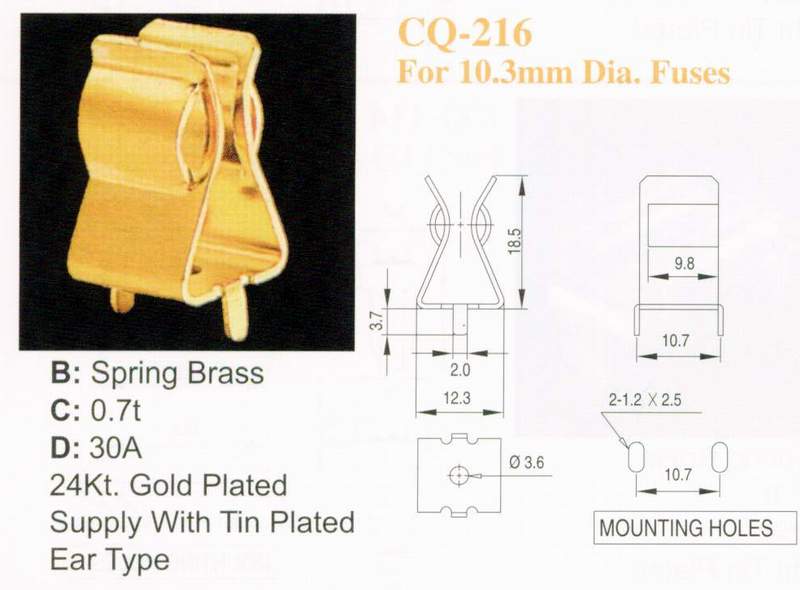

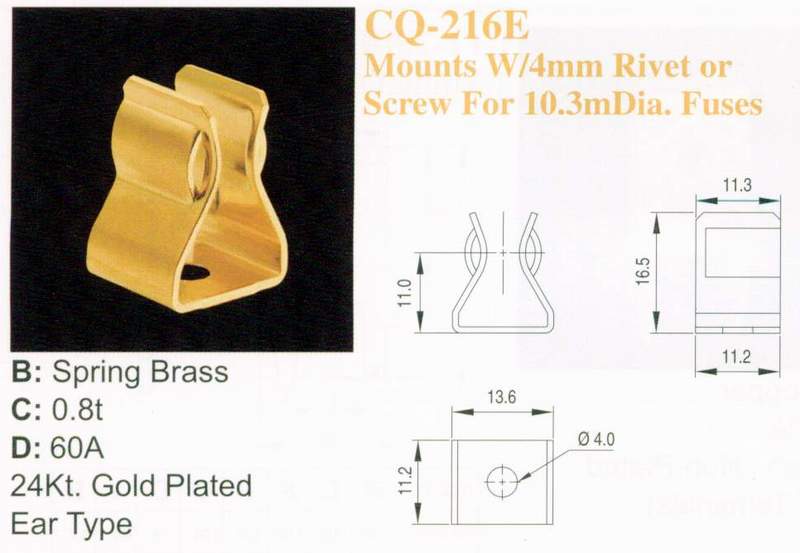

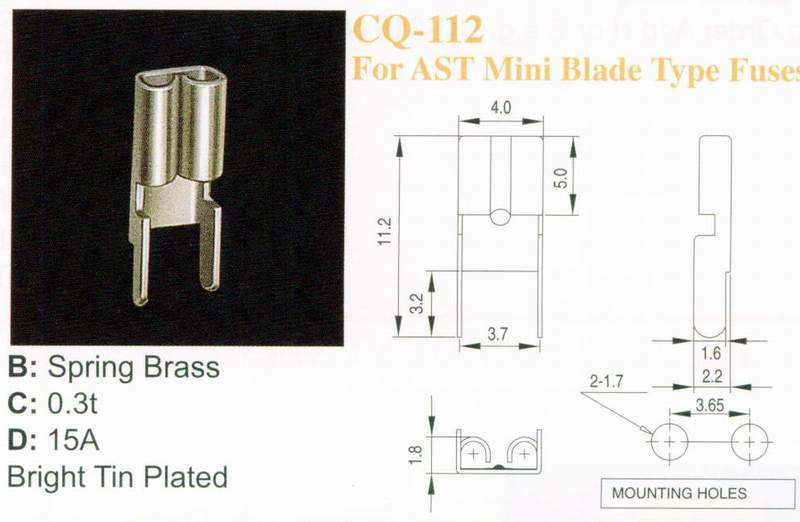

CQ-216	CQ-216E	CQ-112
For 10.3mm Dia. Fuses	For 10.3mm Dia. Fuses	For AST Mini Blade Type Fuses
Metal Material : Spring Brass Material Thickness : 0.7t *Suitable Rated Current : 30A Bright Tin Plated Option:Gold Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.8t *Suitable Rated Current : 60A 24Kt. Gold Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.3t *Suitable Rated Current : 15A Bright Tin Plated

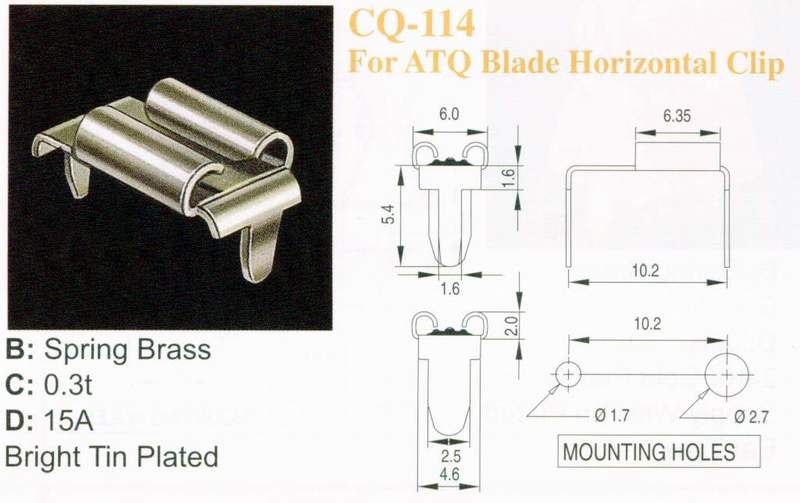

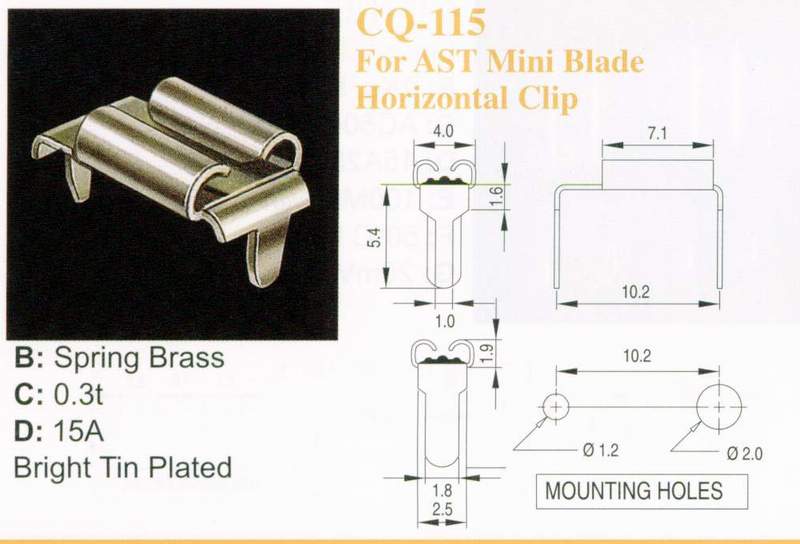

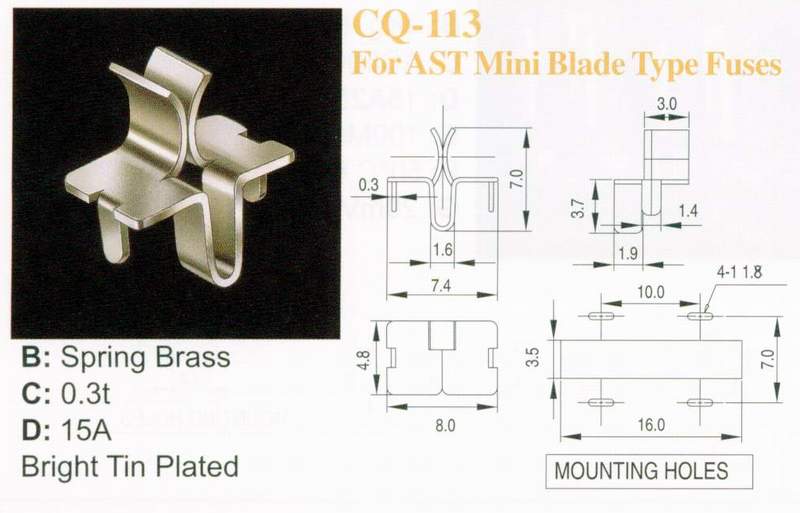

CQ-113	CQ-114	CQ-115
For AST Mini Blade Type Fuses	For ATQ Blade Horizontal Clip	For AST Mini Blade Horizontal Clip
Metal Material : Spring Brass Material Thickness : 0.3t *Suitable Rated Current : 15A Bright Tin Plated	Metal Material : Spring Brass Material Thickness : 0.3t *Suitable Rated Current : 15A Bright Tin Plated	Metal Material : Spring Brass Material Thickness : 0.3t *Suitable Rated Current : 15A Bright Tin Plated

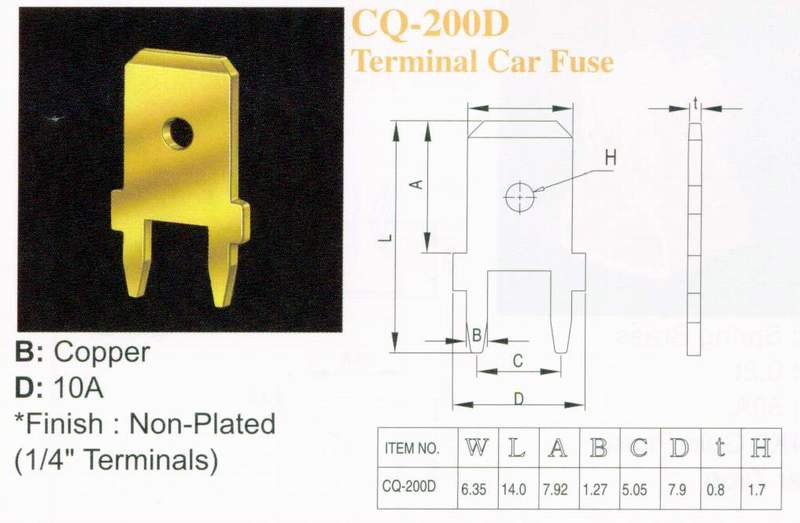

CQ-200D
Terminal Car Fuse
Suitable Rated Current : 10A Metal Material:Copper *Finsh : Non-Plated (1/4" Terminals)

IN-LINE FUSE HOLDER FOR BLADE TYPE FUSES

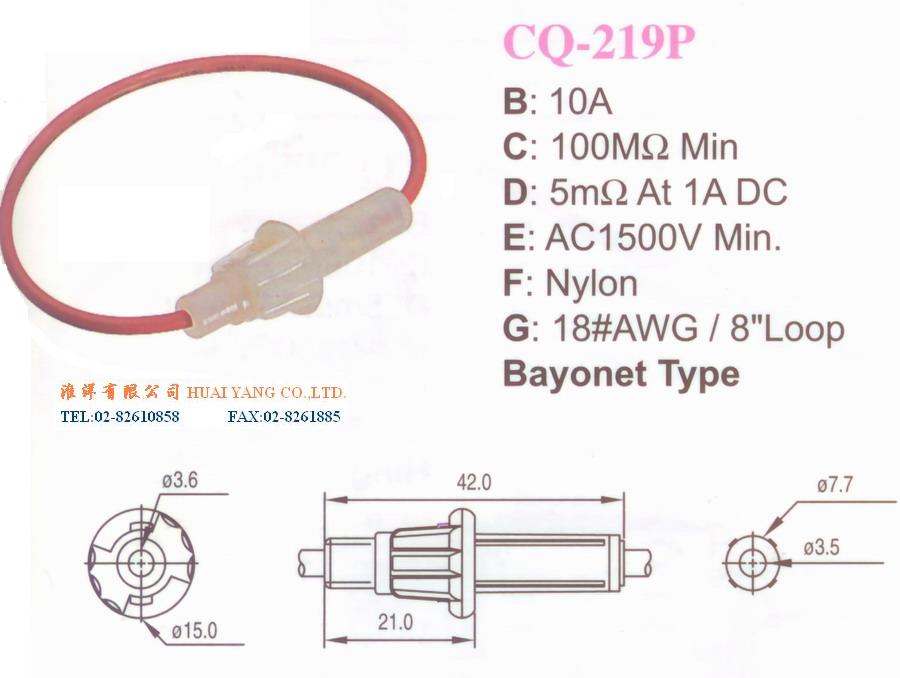

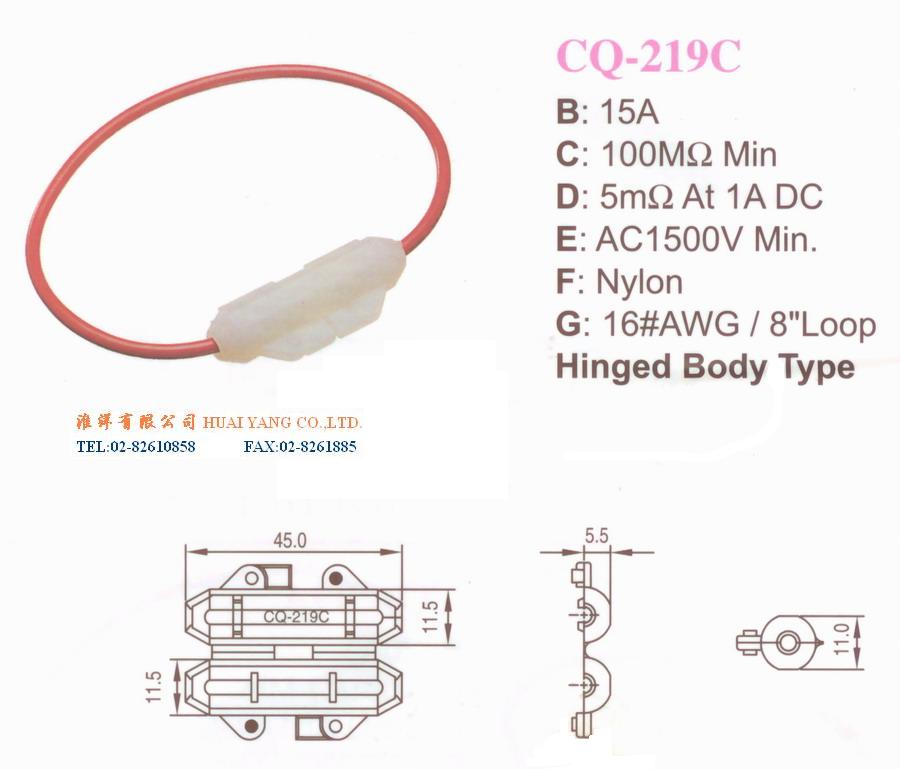

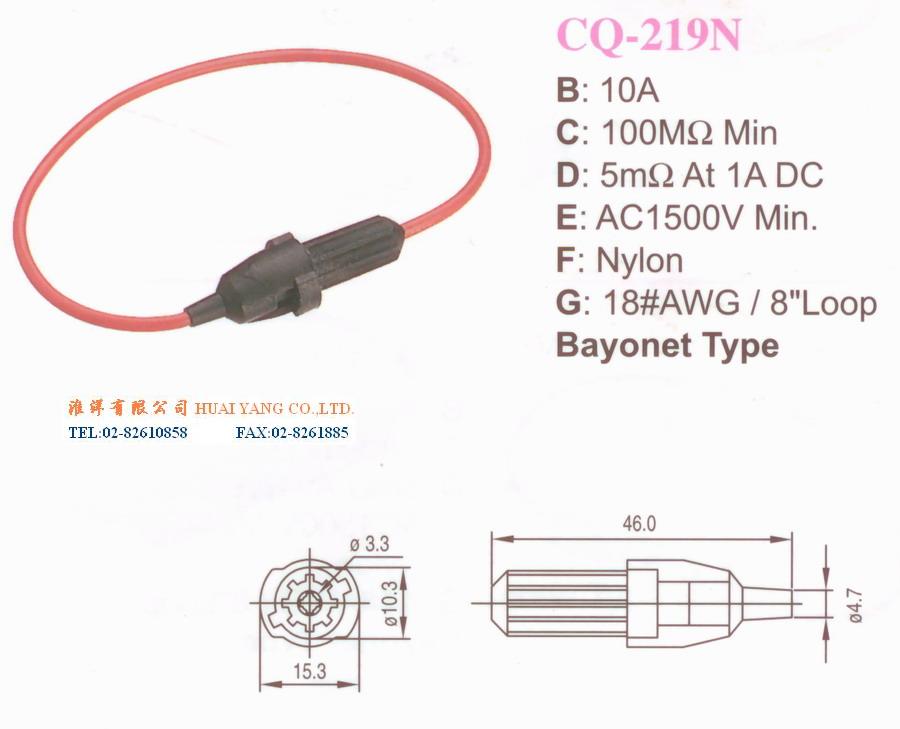

CQ-219C	CQ-219P	CQ-219N
Rated Current : 15A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon PA 66 Supply Standard UL Wire-AWG/Length: 16#AWG / 8"Loop Hinged Body Type	Rated Current : 10A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Supply Standard UL Wire-AWG/Length: 18#AWG / 8"Loop Bayonet Type	Rated Current : 10A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon 94 V0 Supply Standard UL Wire-AWG/Length: 18#AWG / 8"Loop Bayonet Type

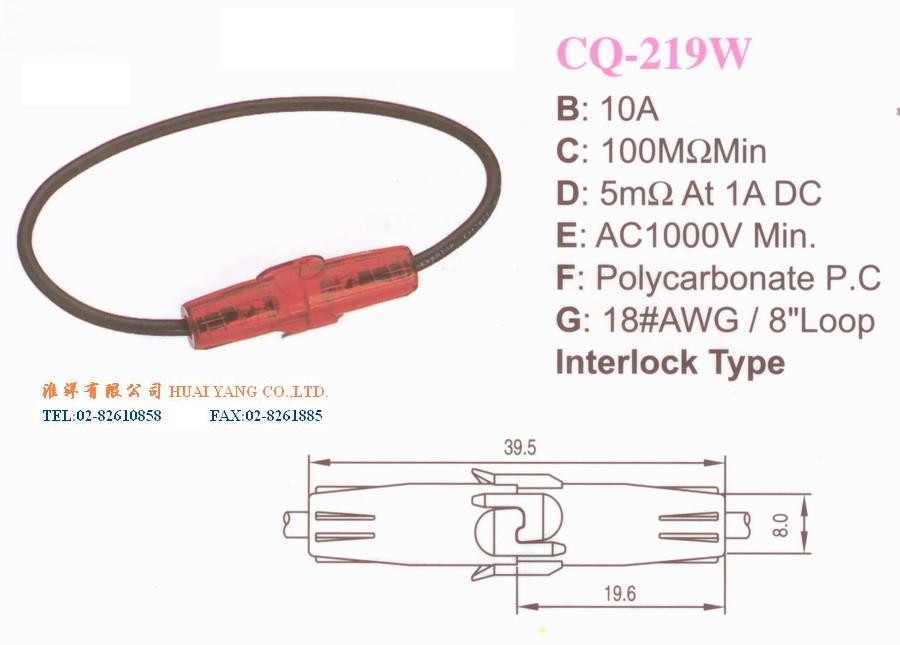

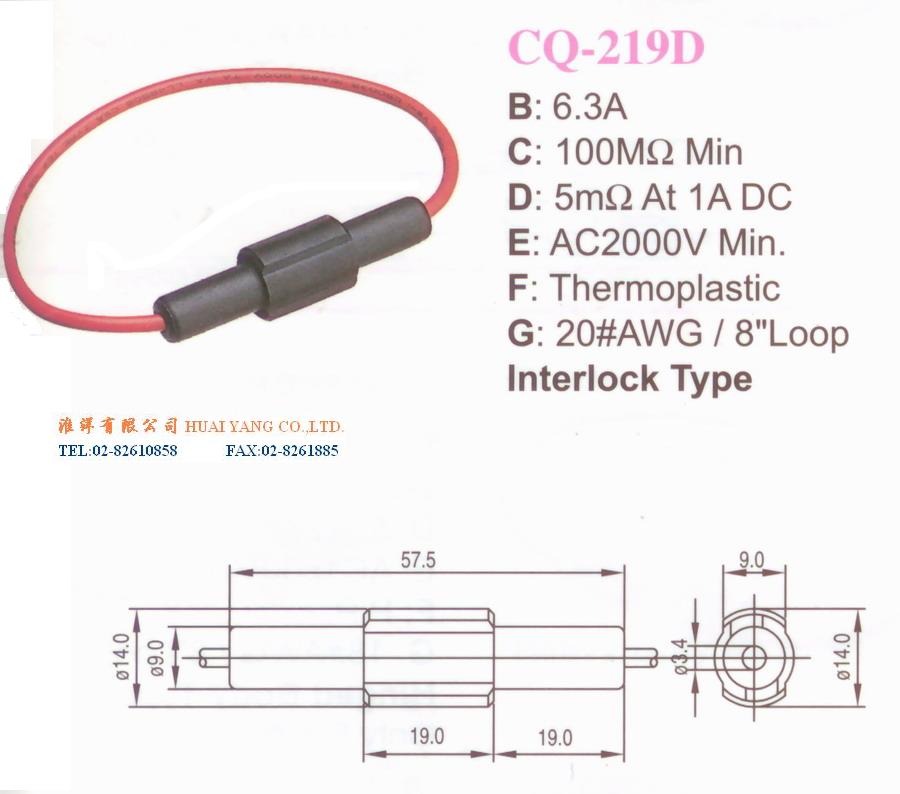

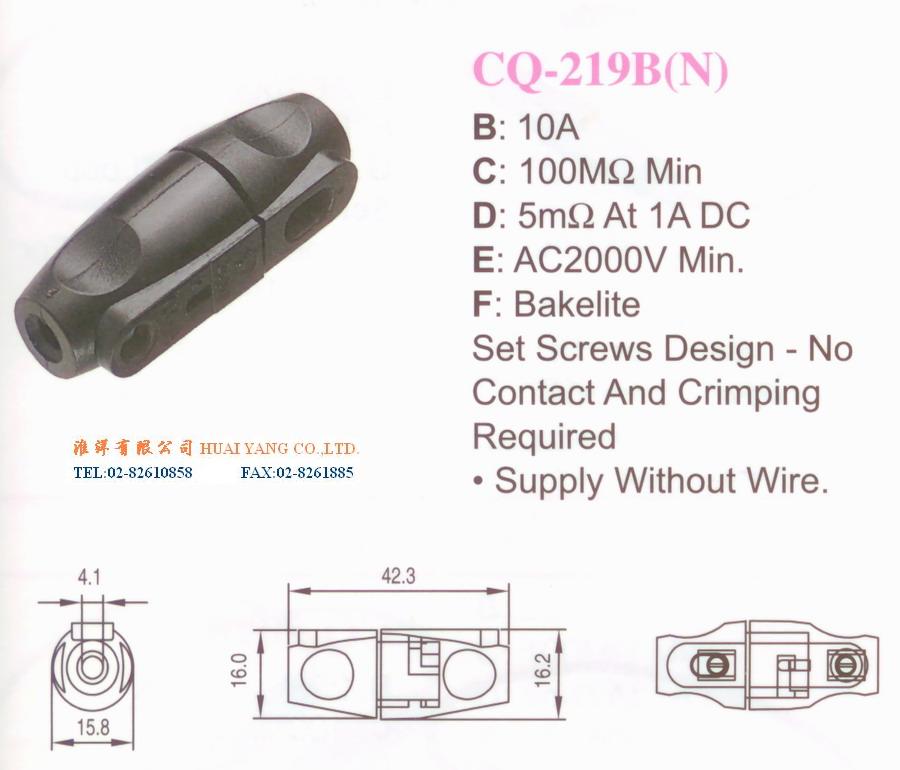

CQ-219W	CQ-219B(N)	CQ-219D
Rated Current : 10A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Body Material : Polycarbonate P.C Supply Standard UL Wire-AWG/Length: 18#AWG / 8"Loop Interlock Type	Rated Current : 10A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. *Body Material : Bakelite	Rated Current : 6.3A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Body Material :Termoplastic Supply Standard UL Wire-AWG/Length: 20#AWG / 8"Loop Interlock Type

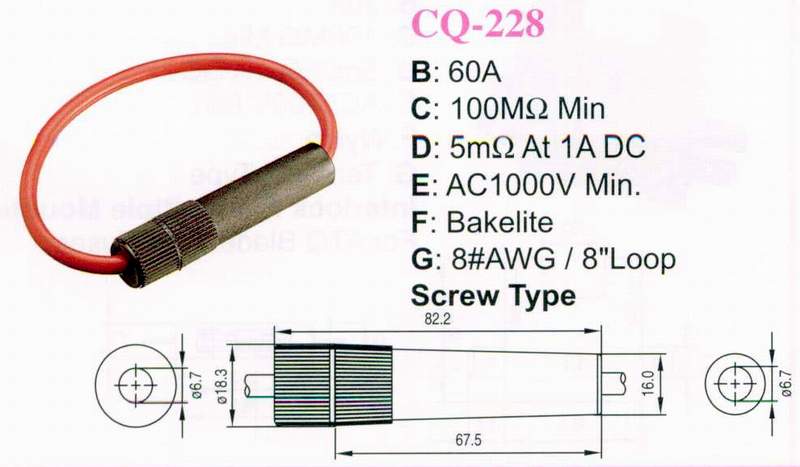

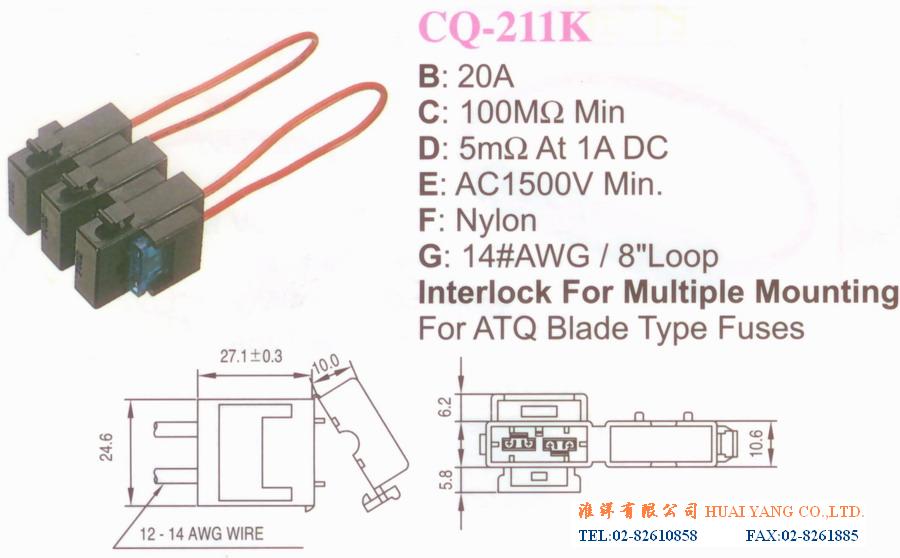

CQ-228	CQ-211N	CQ-211K
AUE In-Line Fuse Holder For (5AG) Fuses	For ATQ Blade Type Fuses	For ATQ Blade Type Fuses
Rated Current : 60A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Body Material : Bakelite Supply Standard UL Wire-AWG/Length: 8#AWG / 8"Loop Screw Type	Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Body Material : Nylon With Glass Fiber Supply Standard UL Wire-AWG/Length: 12#AWG / 8"Loop Heavy Duty Type	Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Supply Standard UL Wire-AWG/Length: 14#AWG / 8"Loop Interlock For Multiple Mounting

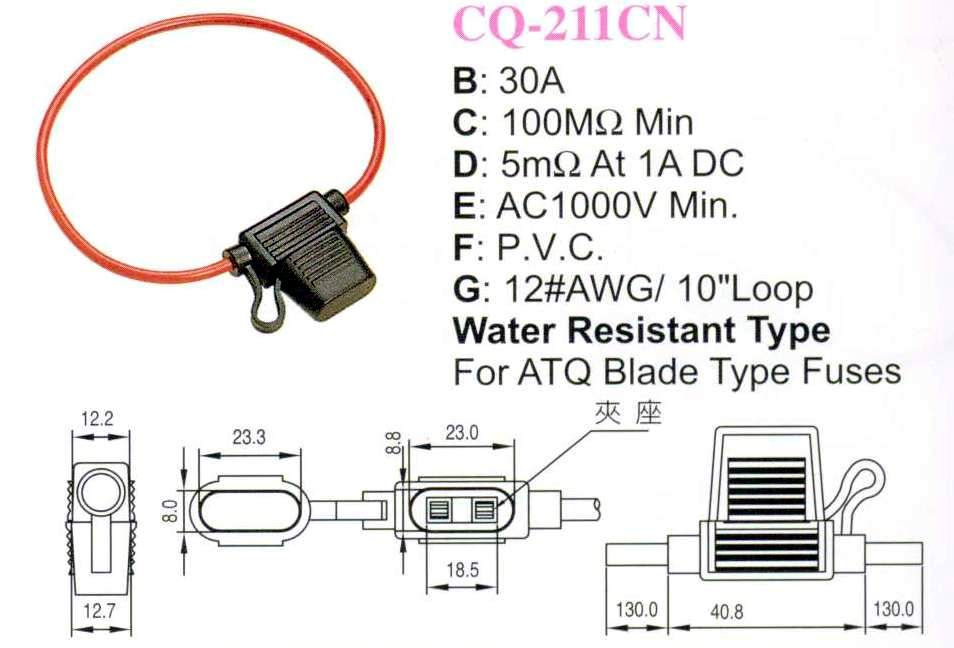

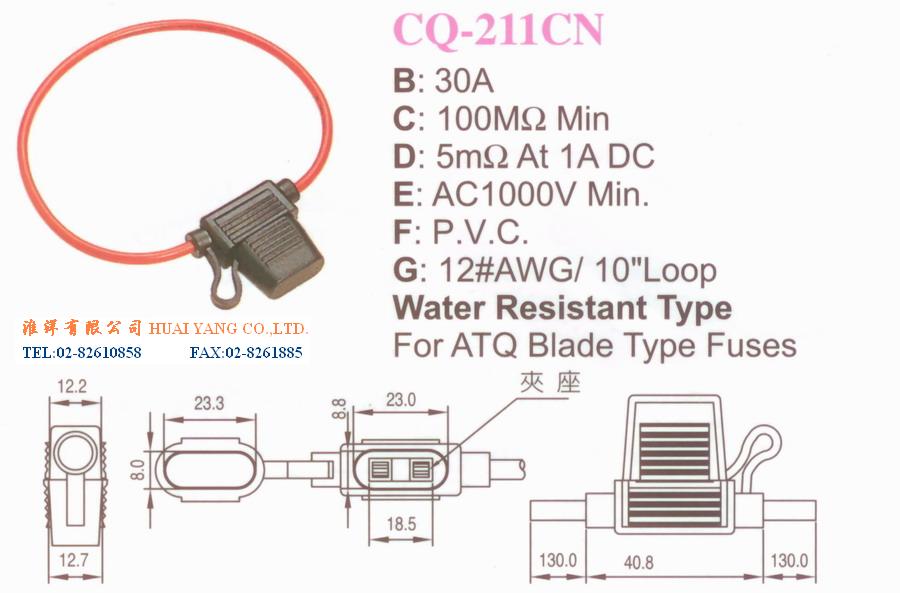

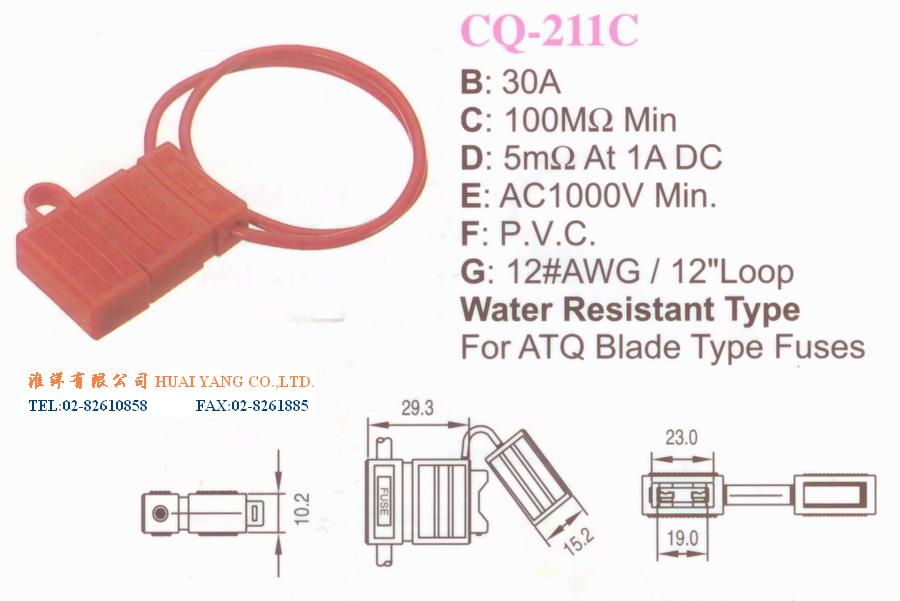

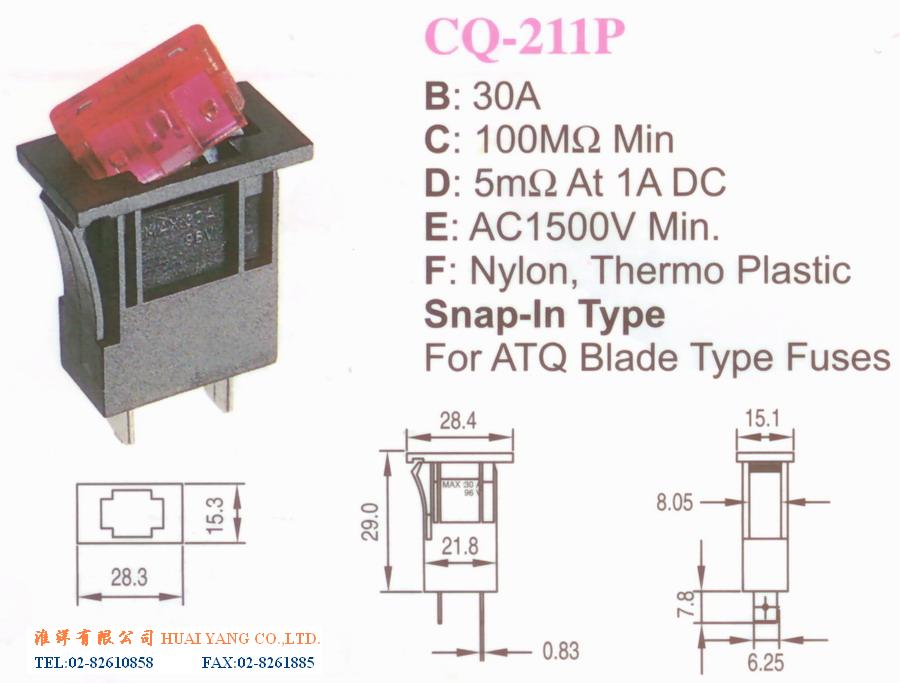

CQ-211C	CQ-211CN	CQ-211P
For ATQ Blade Type Fuses	For AMT(MAX) Blade Type Fuses	For ATQ Blade Type Fuses
Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Body Material : P.V.C. Supply Standard UL Wire-AWG/Length: 12#AWG / 12"Loop Water Resistant Type	Rated Current : 60A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC3000V Min. Body Material : P.V.C. Supply Standard UL Wire-AWG/Length: 8#AWG / 12"Loop Water Resistant Type	Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Thermo Plastic Snap-In Type*

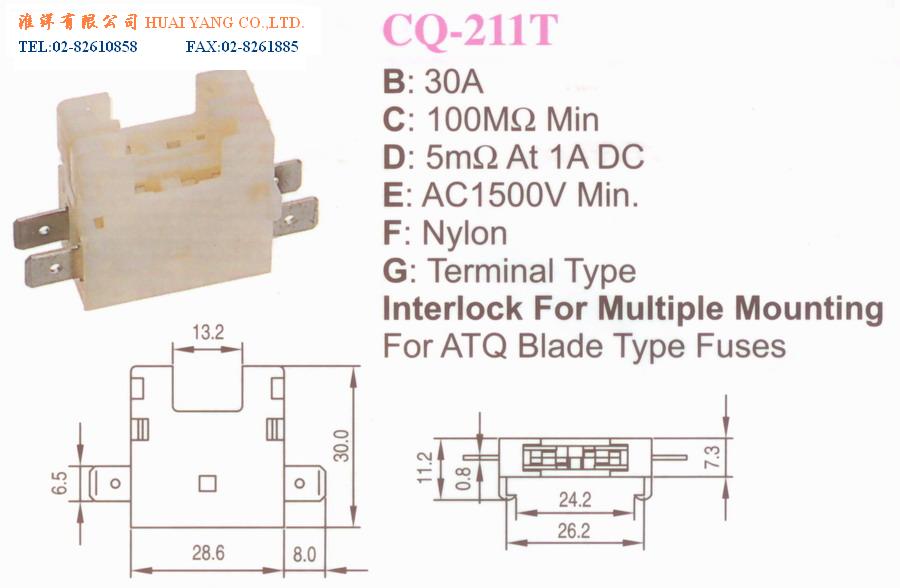

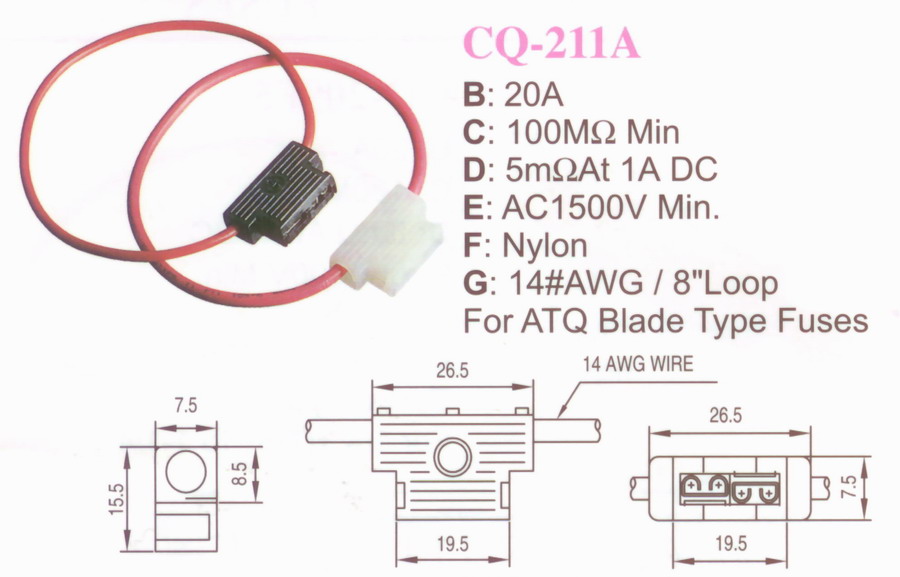

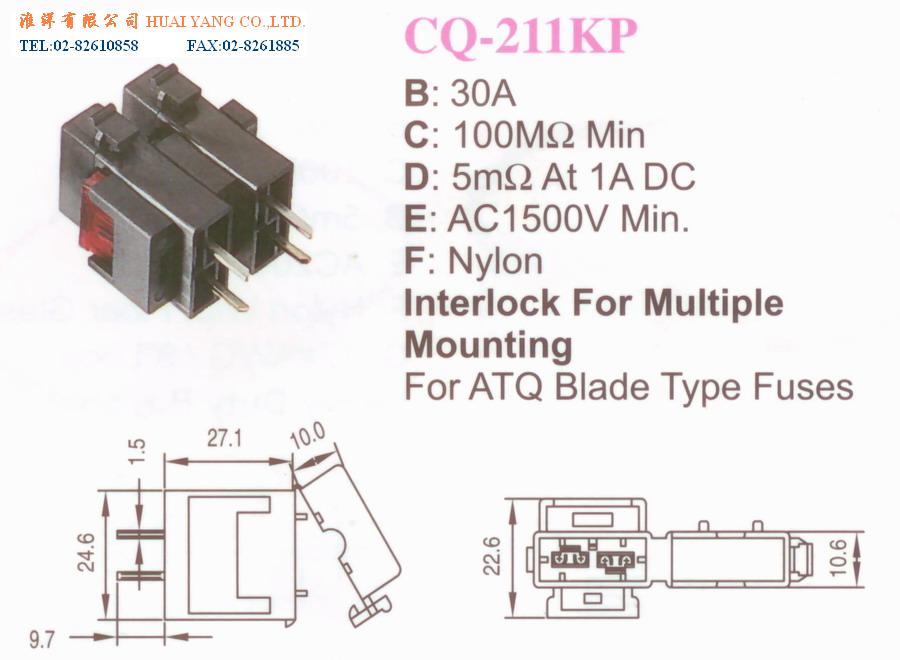

CQ-211A	CQ-211T	CQ-211KP
For ATQ Blade Type Fuses	For ATQ Blade Type Fuses	For ATQ Blade Type Fuses
Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Supply Standard UL Wire-AWG/Length: 14#AWG / 8"Loop	Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Terminal Type Interlock For Multiple Mounting*	Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Interlock For Multiple Mounting*

IN-LINE FUSE HOLDER FOR 1/4"x1-1/4 (6.3x32mm or 6.3x30mm) FUSES

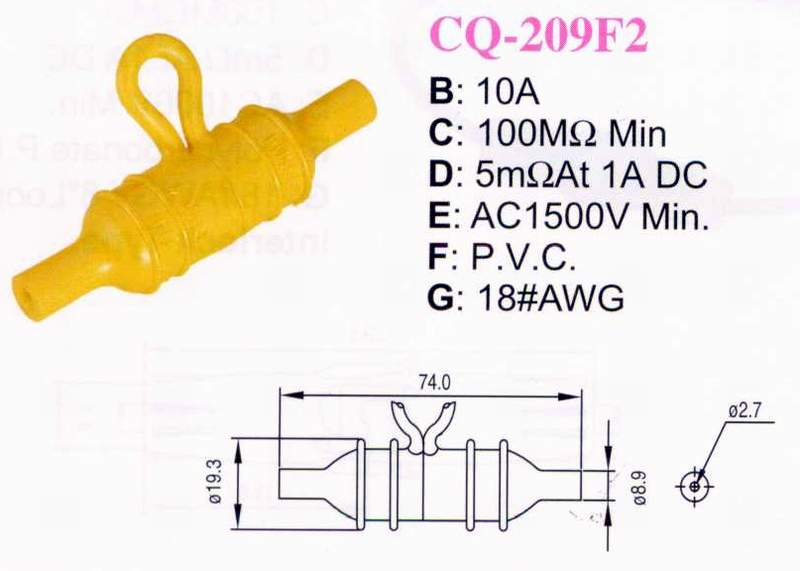

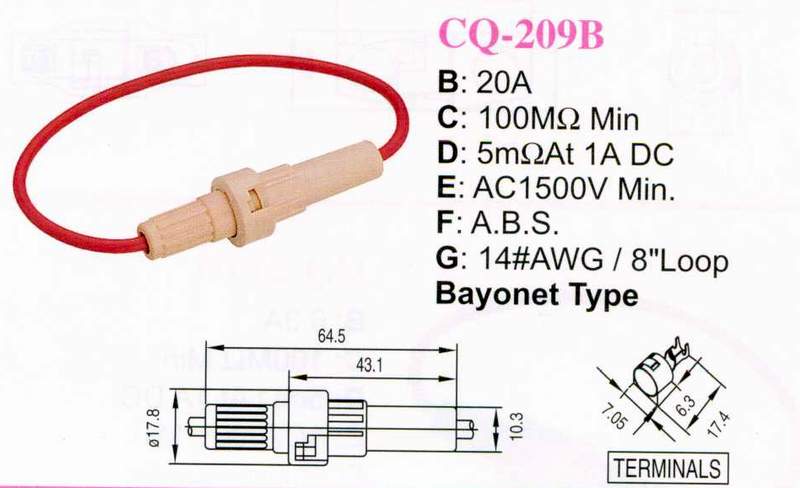

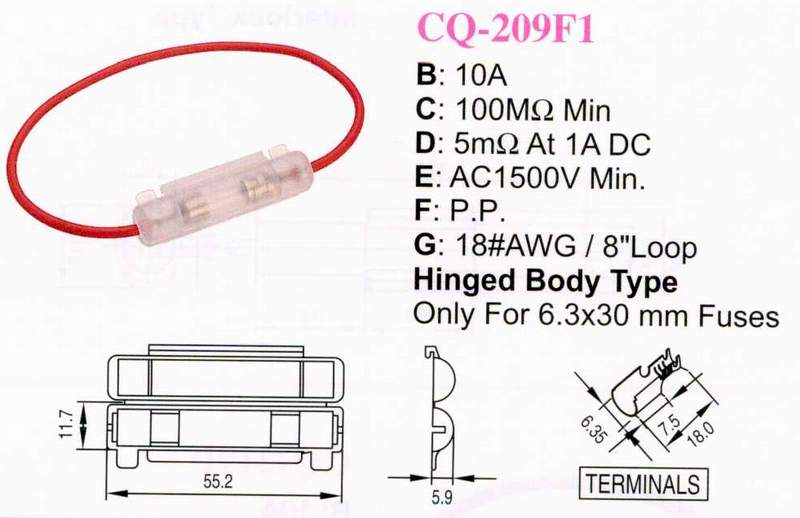

CQ-209B	CQ-209F1 Only For 6.3x30 mm Fuses	CQ-209F2
Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : ABS Supply Standard UL Wire-AWG/Length: 14# AWG / 8"Loop Bayonet Type	Rated Current : 10A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : P.P Supply Standard UL Wire-AWG/Length: 18# AWG / 8" Loop Hinged Body Type	Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Supply Standard UL Wire-AWG/Length: 12# To 18#AWG Wire

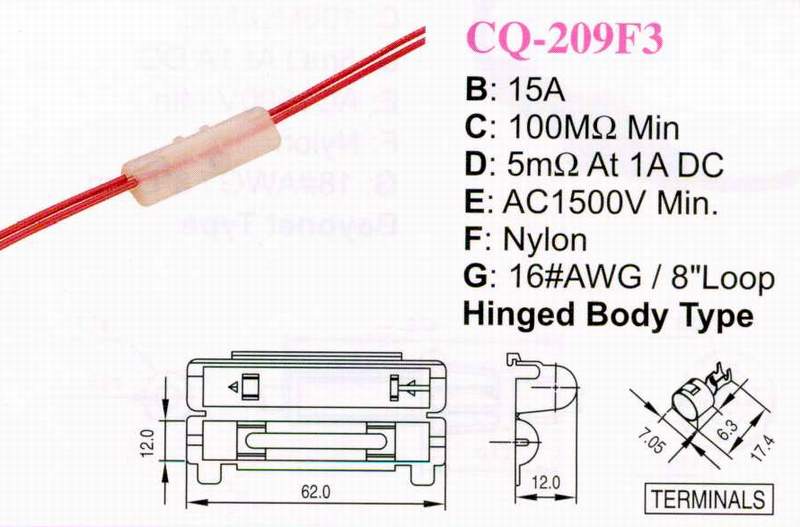

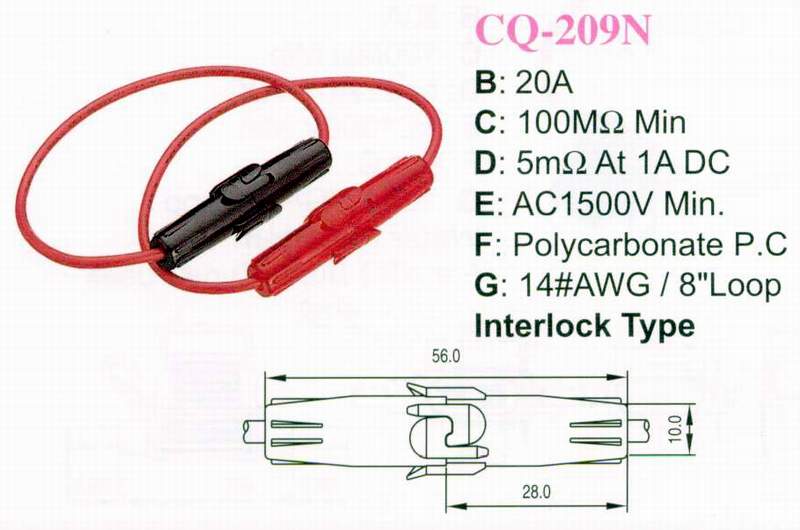

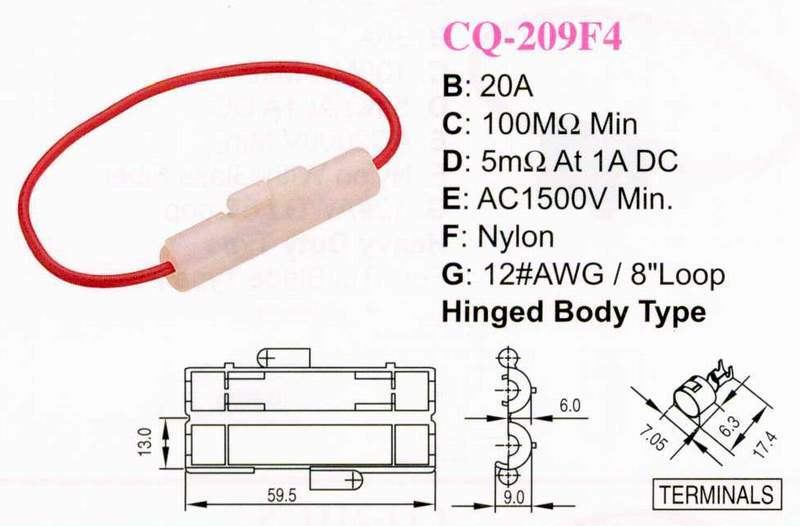

CQ-209F3	CQ-209F4	CQ-209N
Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon PA 66 Supply Standard UL Wire-AWG/Length: 16#AWG / 8"Loop Hinged Body Type	Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon PA 6 Supply Standard UL Wire-AWG/Length: 12#AWG / 8"Loop Hinged Body Type	Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Polycarbonate P.C Supply Standard UL Wire-AWG/Length: 14#AWG / 8"Loop Interlock Type

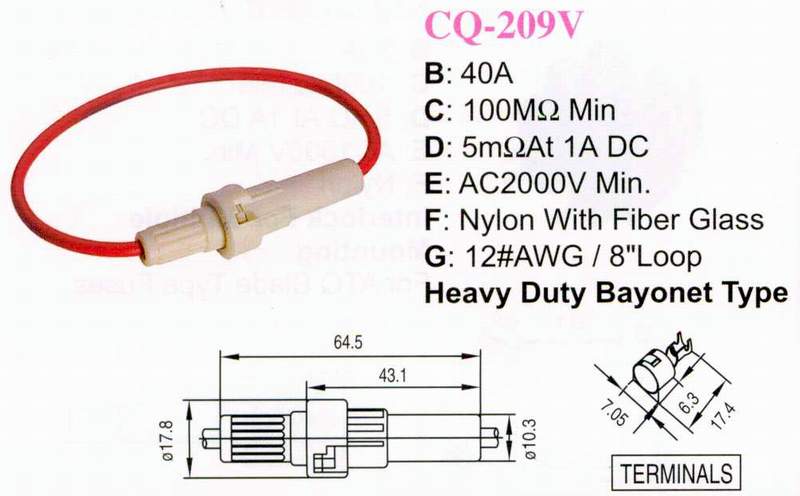

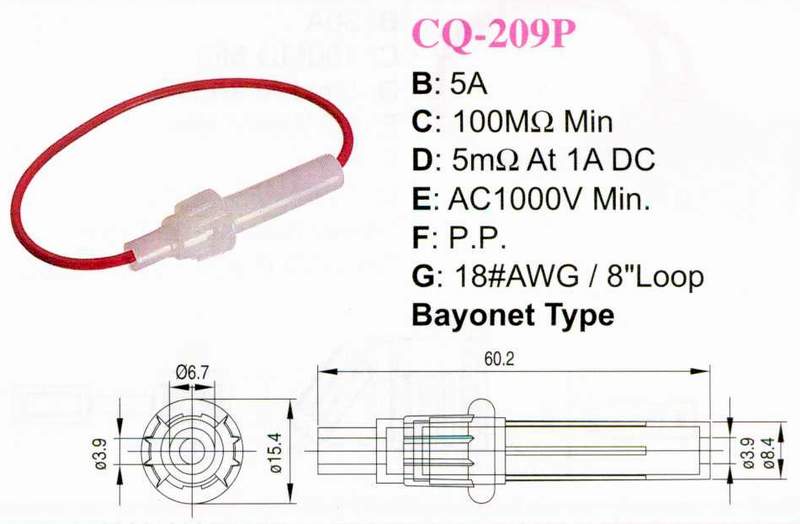

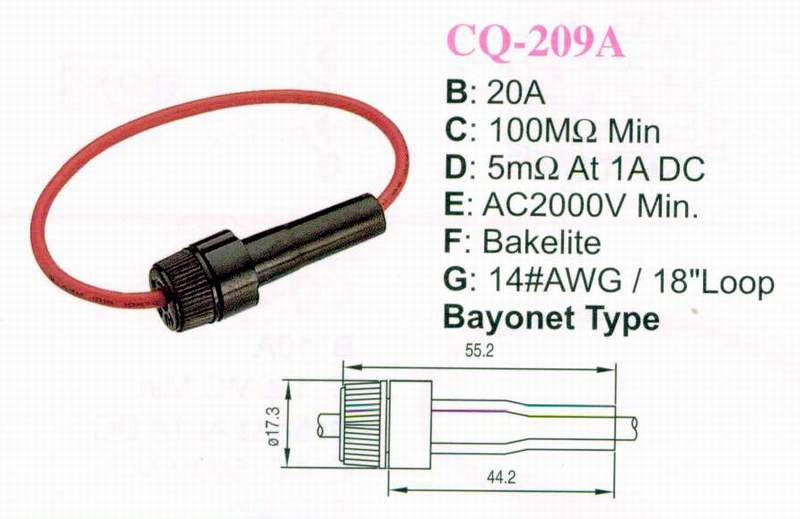

CQ-209P	CQ-209V	CQ-209A
Rated Current : 5A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Body Material : P.P Supply Standard UL Wire-AWG/Length: 18#AWG / 8"Loop Bayonet Type	Rated Current : 40A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Body Material : Nylon With Fiber Glass Supply Standard UL Wire-AWG/Length: 12#AWG / 8"Loop Heavy Duty Bayonet Type	Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Bakelite Supply Standard UL Wire-AWG/Length: 14#AWG / 8"Loop Bayonet Type

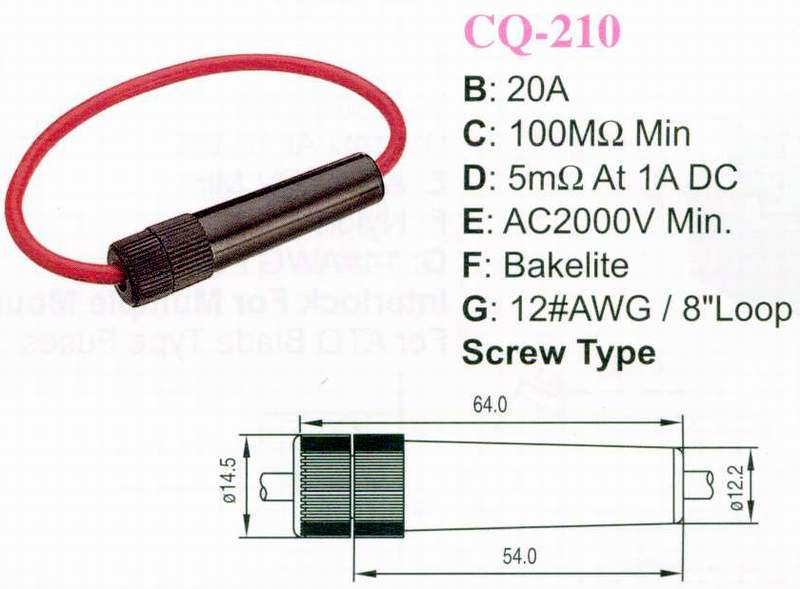

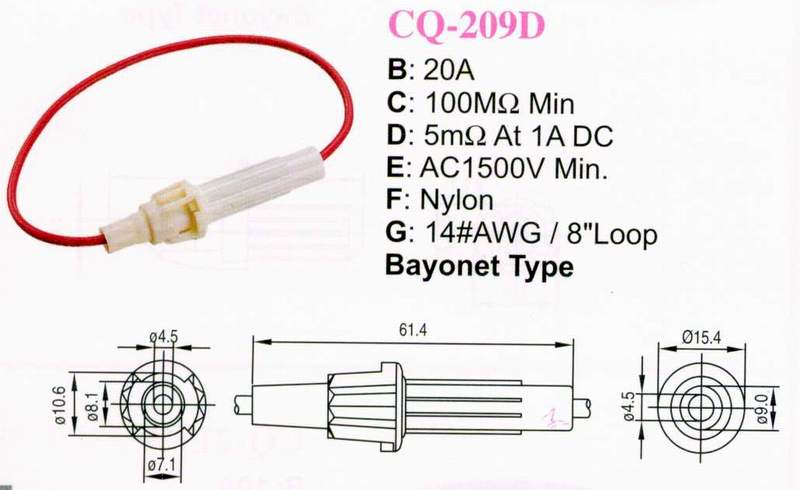

CQ-210	CQ-209D
Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC2000V Min. Body Material : Bakelite Supply Standard UL Wire-AWG/Length: 12#AWG / 8"Loop Screw Type	Rated Current : 20A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material : Nylon Supply Standard UL Wire-AWG/Length: 14#AWG / 8"Loop Bayonet Type

☆ 品質 ☆ 專業 ☆ 誠實 ☆ 服務 ☆
☆ High Quality, Professional, Honest and Best Service. ☆

SPECLAL FUSE HOLDER

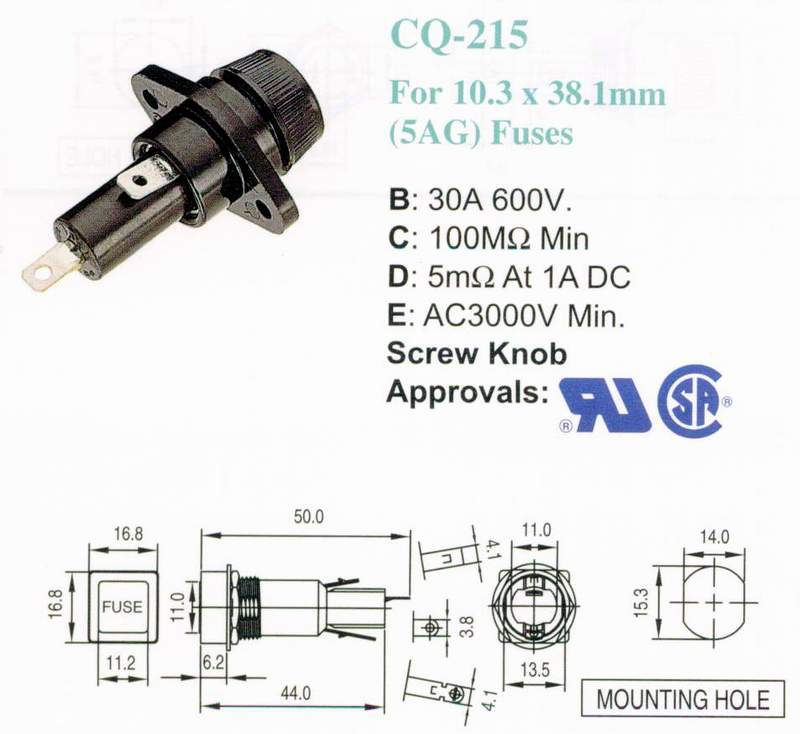

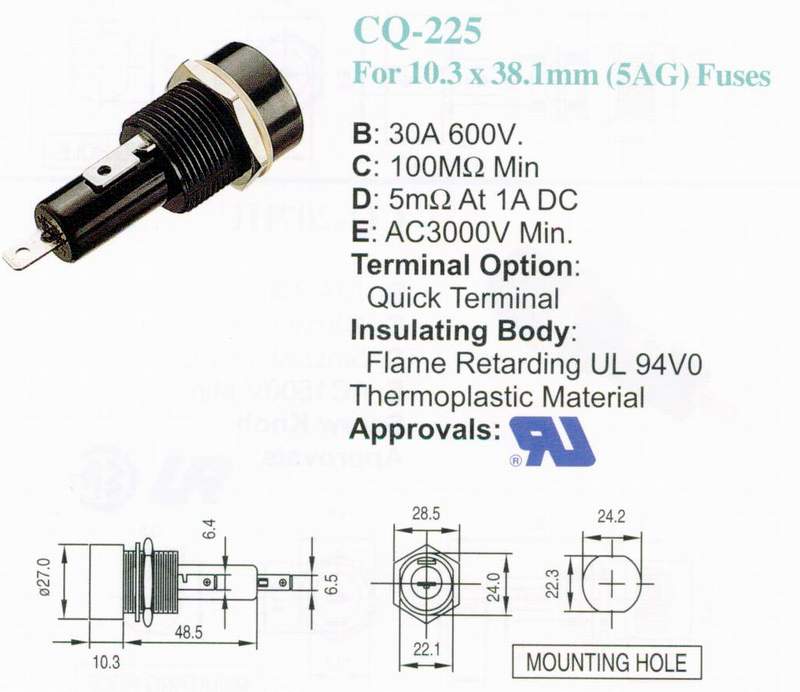

CQ-215	CQ-225
For 10.3 x 38.1mm(5AG) Fuses	For 10.3 x 38.1mm(5AG) Fuses
Rated Current : 30A 600V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC3000V Min. Approvals :RU,CSA Screw Knob*	Rated Current : 30A 600V Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC3000V Min *Terminal Option :Quick Terminal

COVERS FOR FUSE BLOCKS
CV-1		CV-2		CV-2A
	For 5x20 Fuse Blocks		For CQ -2005~CQ-2007 CQ-2009~CQ-2011 Fuse blocks Material SAN		For CQ -2005~CQ-2007 CQ-2009~CQ-2011 Fuse blocks Material PC UL 94V0

CV-3		CV-4		CV-5
	For 5x20 Fuse Blocks		For 5x20 Fuse Blocks		For 5x20 Fuse Blocks

CV-6		CV-7		CV-8
	For 5x20 Fuse Blocks		For 6x32 Fuse Blocks		For CQ-2001~CQ-2004 Fuse Blocks

CV-9		CV-10		CV-11
	For 4.6x15 Fuse Blocks		For 6x30 Fuse Blocks		For CQ-211N In Line Fuse Holder

P.C. BOARD MOUNT FUSE CLIPS FOR 1/4" (6.3mm) DIAMETER FUSES

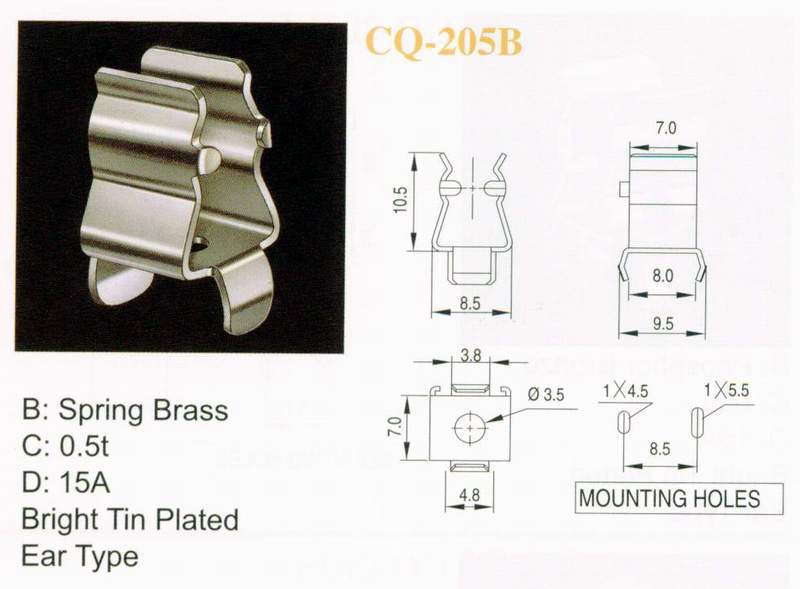

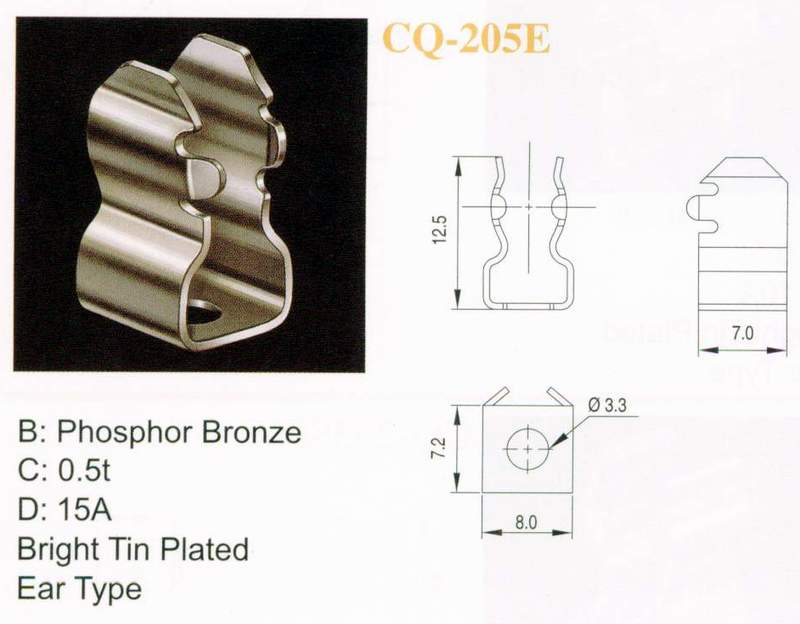

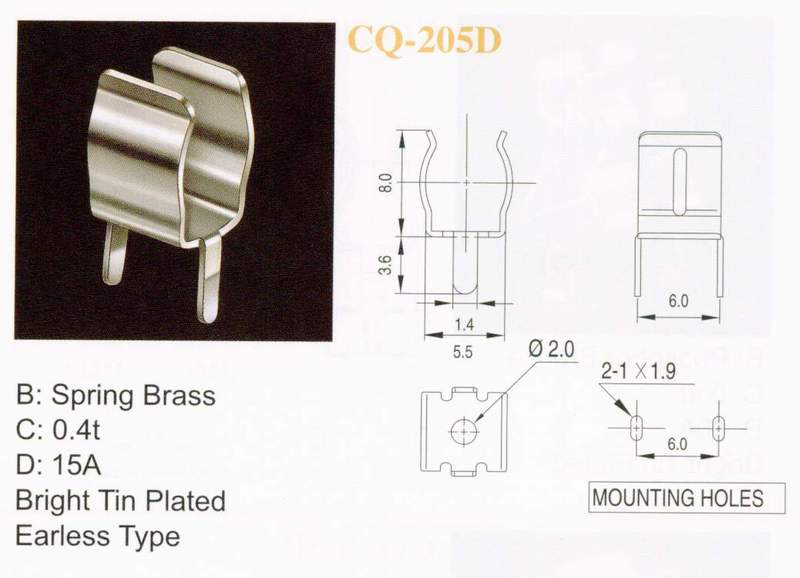

CQ-205B	CQ-205D	CQ-205E
Metal Material : Spring Brass Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 15A Bright Tin Plated Earless Type	Metal Material : Phosphor Bronze Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Ear Type

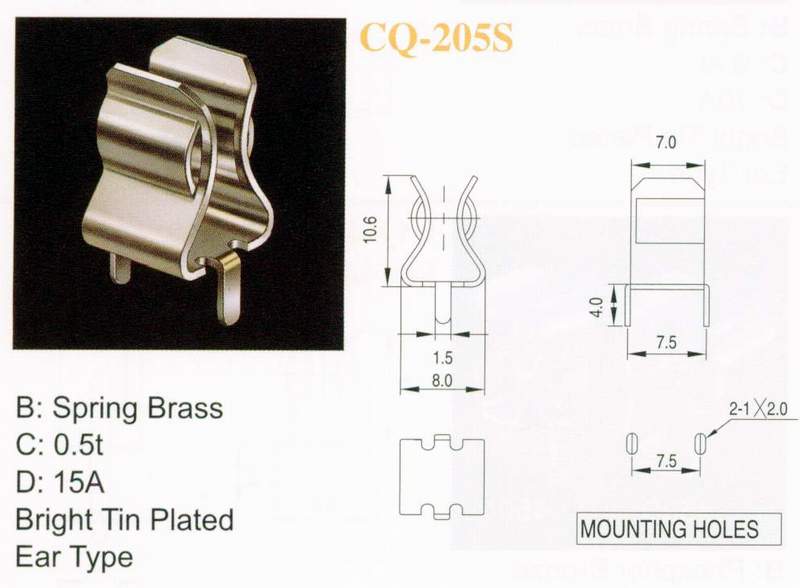

CQ-205DH	CQ-205S	CQ-205ST
Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 15A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Ear Type	Metal Material : Spring Brass Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Earless Type

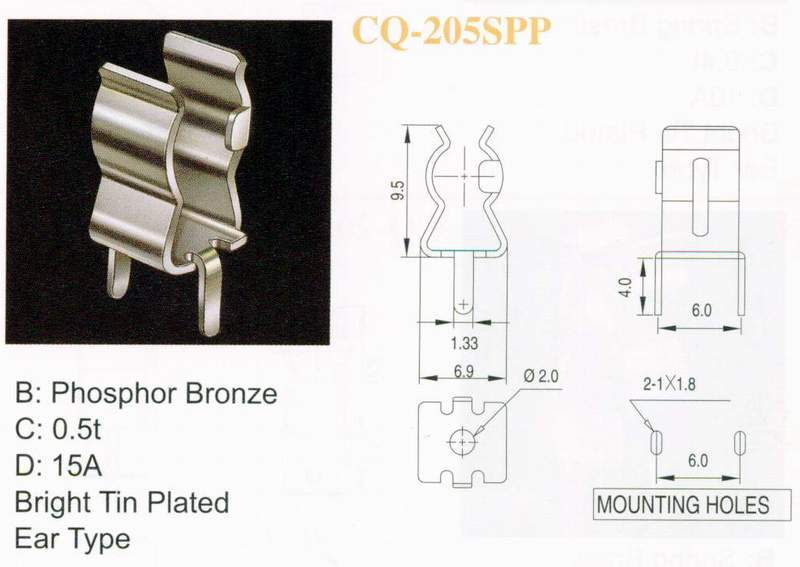

CQ-205P	CQ-205SPP
Metal Material : Spring Brass Material Thickness : 0.4t *Suitable Rated Current : 10A Bright Tin Plated Ear Type	Metal Material : Phosphor Bronze Material Thickness : 0.5t *Suitable Rated Current : 15A Bright Tin Plated Ear Type

FOR BLADE AUTO FUSES BLOCKS

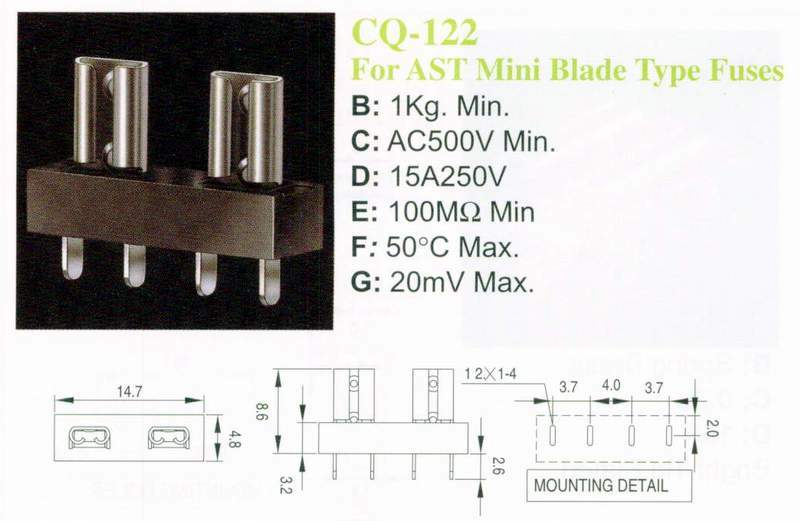

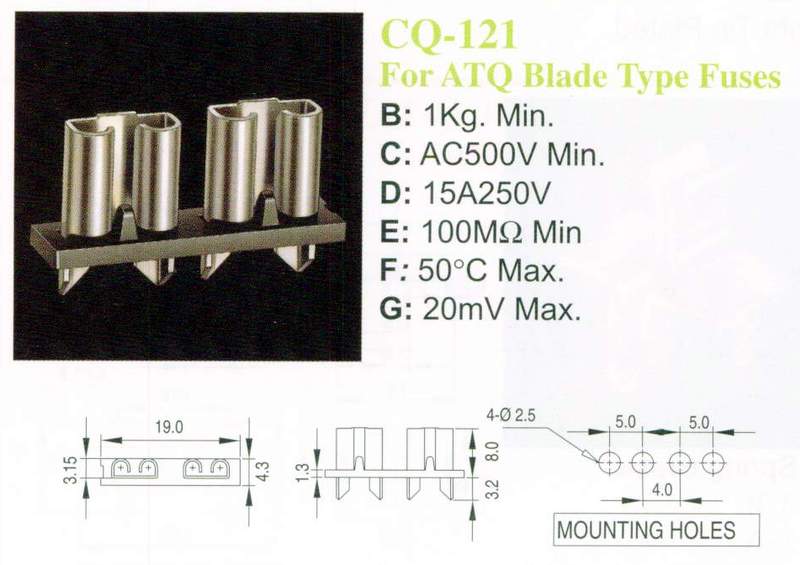

CQ-121	CQ-122
For ATQ Blade Type Fuses	For AST Mini Blade Type Fuses
Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC500V Min. Suitable Rated Current :15A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.	Insertion & Extrraction Force:1Kg.Min. Dielectric Strength For 60 Sec:AC2000V Min. Suitable Rated Current : 20A250V Insulation Resistance At500VDC:100MΩMin Temperature Rise:50°C Max. Voltage Drop:20mV Max.

IN-LINE FUSE HOLDER FOR AUE (5AG) FUSES

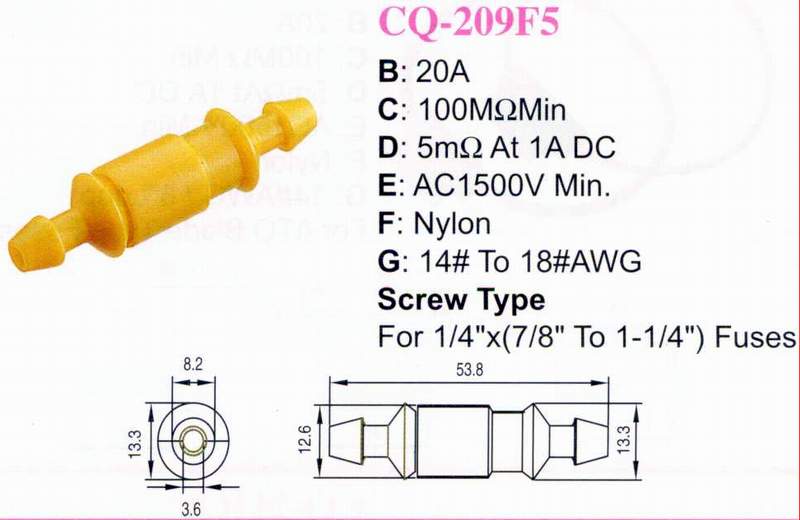

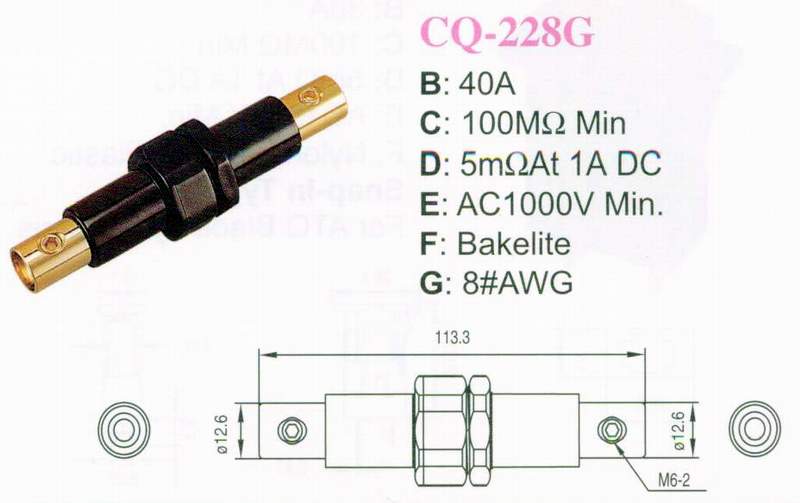

CQ-228G	CQ-209F5
Rated Current : 60A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1000V Min. Body Material :Bakelite Supply Standard UL Wire-AWG/Length :8# AWG	Rated Current : 30A Insulation Resistance At 500VDC :100MΩMin Contact Resistance :5mΩ At 1A DC Dielectric Strength For 60 Sec :AC1500V Min. Body Material :Nylon 94V2 Supply Standard UL Wire-AWG/Length :16#~20# AWG
