FLOAT SENSOR

Standard

FS8-35-M-ABS	FS8-35-M-PP	FS8-35-M-PVDF
Power Rating 10VA (Max.) Switching Current(Max.)- 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage(Max.)- 200 VDC	Power Rating 10VA (Max.) Switching Current(Max.)- 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage(Max.)- 200 VDC	Power Rating 10VA (Max.) Switching Current(Max.)- 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage(Max.)- 200 VDC
High Voltage

FS8-35-1-M-ABS	FS8-35-1-M-PP	FS8-35-1-M-PVDF
Power Rating - 70W Switching Current - 1.5 Amps DC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps DC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps DC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC
Standard

FS8-35-N-ABS	FS8-35-N-PP	FS8-35-N-PVDF
Power Rating - 10W Switching Current - 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage - 200 VDC	Power Rating - 10W Switching Current - 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage - 200 VDC	Power Rating - 10W Switching Current - 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage - 200 VDC
High Voltage

FS8-35-1-N-ABS	FS8-35-1-N-PP	FS8-35-1-N-PVDF
Power Rating - 70W Switching Current - 1.5 Amps DC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps DC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps DC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC

Standard

FS8-88-M-ABS	FS8-88-M-PP	FS8-88-M-PVDF
Power Rating 10VA (Max.) Switching Current(Max.)- 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage(Max.)- 200 VDC	Power Rating 10VA (Max.) Switching Current(Max.)- 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage(Max.)- 200 VDC	Power Rating 10VA (Max.) Switching Current(Max.)- 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage(Max.)- 200 VDC
High Voltage

FS8-88-1-M-ABS	FS8-88-1-M-PP	FS8-88-1-M-PVDF
Power Rating - 70W Switching Current - 1.5 Amps AC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps AC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps AC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC
Standard

FS8-88-N-ABS	FS8-88-N-PP	FS8-88-N-PVDF
Power Rating - 10W Switching Current - 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage - 200 VD	Power Rating - 10W Switching Current - 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage - 200 VD	Power Rating - 10W Switching Current - 0.5 Amps DC Carry Current - 1.5 Amps DC Switching Voltage - 200 VD
High Voltage

FS8-88-1-N-ABS	FS8-88-1-N-PP	FS8-88-1-N-PVDF
Power Rating - 70W Switching Current - 1.5 Amps AC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps AC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC	Power Rating - 70W Switching Current - 1.5 Amps AC Carry Current - 2.5 Amps DC Switching Voltage - 300 VDC

Mode of operation:
When the float ball rises or falls with the liquid to the level of the switch (Inside the bar),the magnetic force of the magnet will cause the reed switch to turn ON. As the float ball moves away from the reed switch, the loss of magnetic force will cause the reed switch to turn OFF.

Features:

	Non contact sensing avoids false action due to complicated mechanism.
	Low cost	Long life.
	Simple installation.	Wide applications.

Application:
1.Electric appliances

Humidifier-------

Drinking water dispenser.

Water tank control of micon toilet.

Water displacing system of air conditioner.

2.Automatic control

Environmental control equipment.

Cooling water tank.

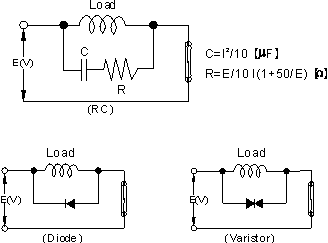

Contact protection circuit:
When a reed switch is connected to an inductive load (such as magnetic valve, electromagnetic relay, motor, etc.),a protective circuit is required to prolong its operating life.

1.Inductive loads 電感性負載：

2.Capacitive loads 電容性負載:
