TA-series

Toggle Switches with Wires up to 3A 125 " L " Rating, Nameplate Optional


Different shape of toggle actuator available
  • Rating : 6A 125VAC, 3A 250VAC (UL,CSA)
  • 3A 125VAC "L" (UL,CSA )
  • Initial contact resistance : 50m ohm (max.)
  • Insulation resistance : 500VDC 100M ohm (min)
  • Dielectric strength : 1,000VAC for 1 minute
  • Life cycle : 10,000 cycles
  • Temperature range : 0 to + 65 degrees in Celsius
  • Switching function : ON-OFF
  • Toggle actuator : Nickel-plated brass
  • Base : Phenolic, UL94V-0

　
  • Spring : Steel wire
  • Bushing : Nickel-plated brass
  • On-Off indicator plate: Nickel-plated steel, keyed to bushing
  • Base cover : Phenolic laminate
  • Nuts : Nickel-plated brass
  • Moving contact : Silver-plated brass
  • Fixed contact : Silver-plated copper alloy
  • Wire : 18 AWG, 6"  long, end stripped 3/4", wire length customized

　

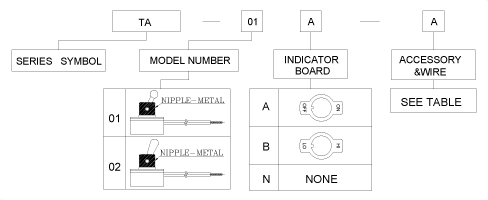

How to order


TA round-ball actutaor
