2M  Sub-Miniature Toggle Switches

Specification：

Contact Ration: Dependent upon contact material
(Q) Fixed terminal: Silver plated copper alloy
Moving contact: Silver plated copper alloy
Rating: 3 Amps @ 120VAC or 28VDC
1 Amps @ 250 VAC
(R) Fixed Terminal: Copper alloy with gold plate over nickel plate
Moving contact: Copper alloy with gold plate over nickel plate
Rating: 0.4 VA max. @ 20VAC or DC max
Electrical Life: 30,000 make-and-break cycles at full load.
Contact Resistance: 20 milli ohm max. initial @ 2- 4 VDC,
100 mA for both silver and gold plated contacts.
Insulation Resistance: 1,000 M ohm min.
Dielectric Strength: 1000 V RMS @sea level.
Operating Temperature: -30oC to 85oC
Materials：
　Case: Diallyl phthalate (DAP)(UL94V-0)
　Toggle Handle: Brass, chrome plated
　Bushing: Brass, nickel plated
　Housing: Stainless Steel
　Switch Support: Brass, tin plated
　Terminal/Contact: Brass, with Silver or Gold plated.
　

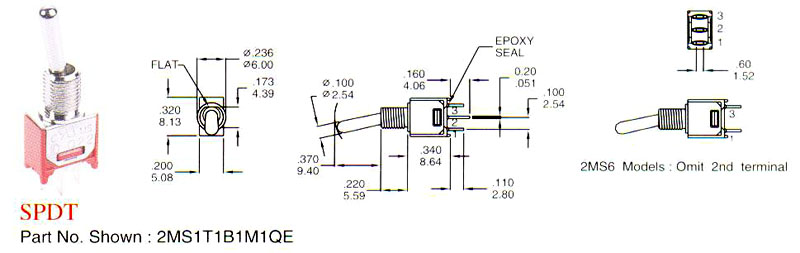

Part number: 2MS1T1B1M1QE

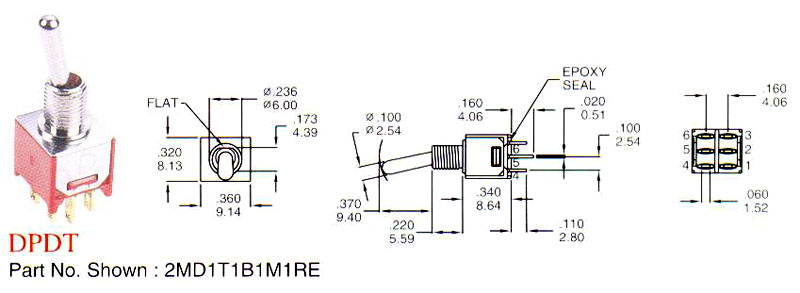

Part number: 2MD1T1B1M1RE
Part number: 2MS1T2B2M6RE

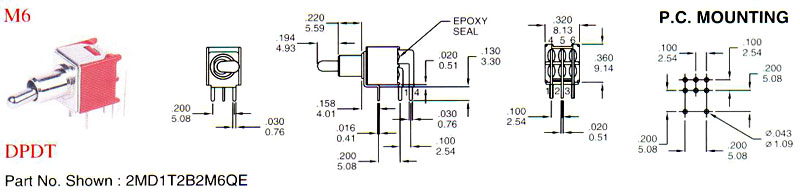

Part number: 2MD1T2B2M6QE

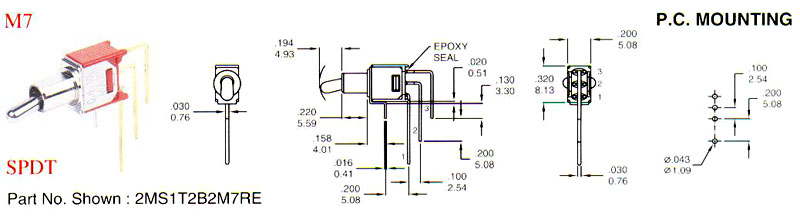

Part number: 2MS1T2B2M7RE

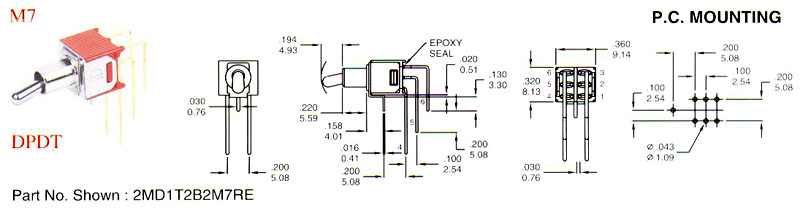

Part number: 2MD1T2B2M7RE
Part number: 2MS1T2B2VS2QE
Part number: 2MD1T2B3VS2QE
( For example ) Q2211-T1-B1-M1-Q-E (= 2MS1-T1-B1-M1-Q-E)
Acurator Options

Bushing Options

　

　

　

　

　

　

Eproxy Options

Termination Options

Model No

Actuator

 Bushing Terminations Contact Materials Seal
UL/CSA
 　

Q2211/

2MS1

T1

B1

M1

Q=Silver

E=Epoxy (Std)

Q2212/

2MS2

T2

B2

M2

R=Gold

N=No Epoxy

Q2213/

2MS3

T3

B3

M6

　

　

Q2214/

2MS4

T4

B4

M6N

 　

　

Q2215/

2MS5

T5

B5

M7

 　

　

Q2216/

2MS6

　

B6

M7N

 　 　

Q2221/

2MD2

　

B7

VS2

 　 　

Q2222/

2MD3

　

B8

V2N

 　 　

Q2223/

2MD4

　

　

VS3

 　 　
SWITCH FUNCTION

NO.
POLES

UL/CSA
MODEL
NO.

MODEL
NO.

SWITCH FUNCTION

CONNECTED TERMINALS

POS.1

POS.2

POS.3

POS.1

POS.2

POS.3

SP

Q2211

2MS1

ON

NONE

ON

OPEN

Q2212

2MS2

ON

NONE

MOM

Q2213

2MS3

ON

OFF

ON

Q2214

2MS4

MOM

OFF

MOM

Q2215

2MS5

ON

OFF

MOM

Q2216

2MS6

OFF

NONE

ON

DP

Q2221

2MD1

ON

NONE

ON

OPEN

Q2222

2MD2

ON

NONE

MOM

Q2223

2MD3

ON

OFF

ON

MOM=MOMENTARY

 　

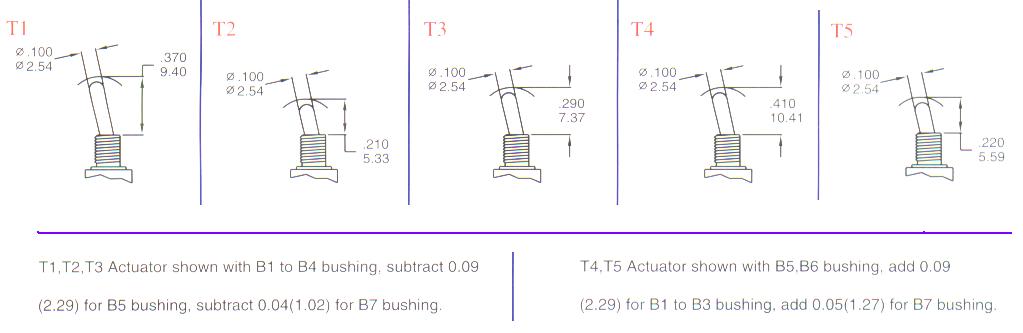

Actuator Options ( Click drawing to enlarge )

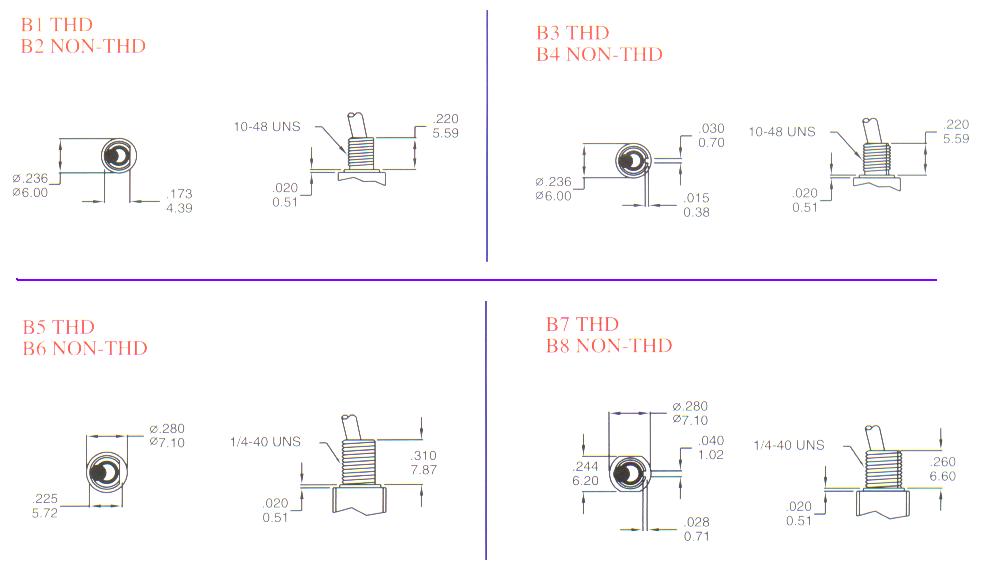

Bushing Options

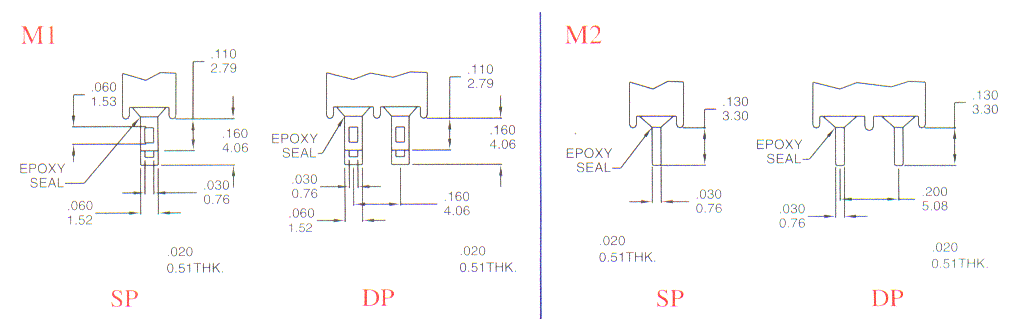

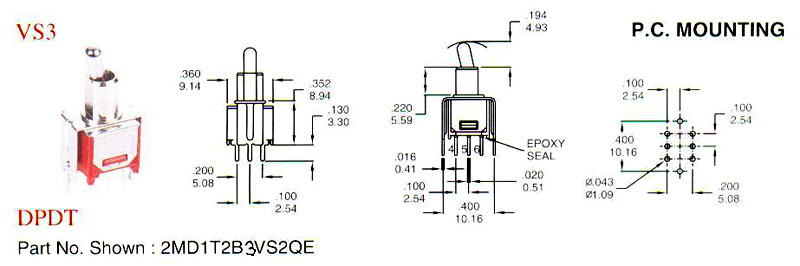

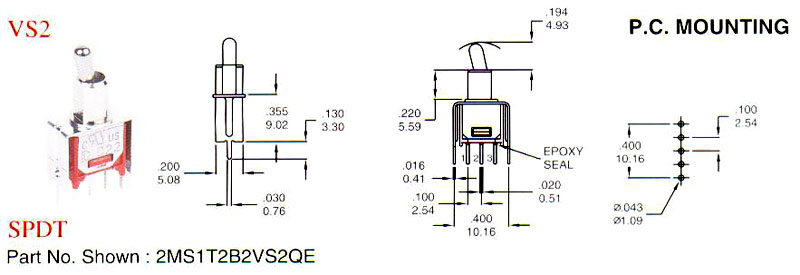

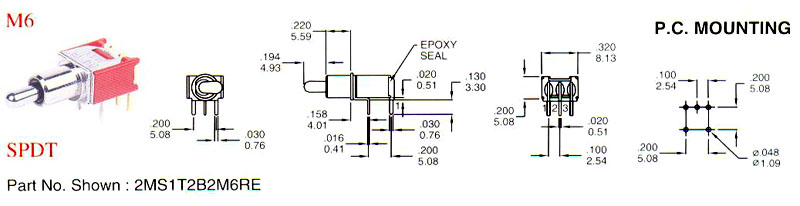

Termination Options ( Click drawing to enlarge )

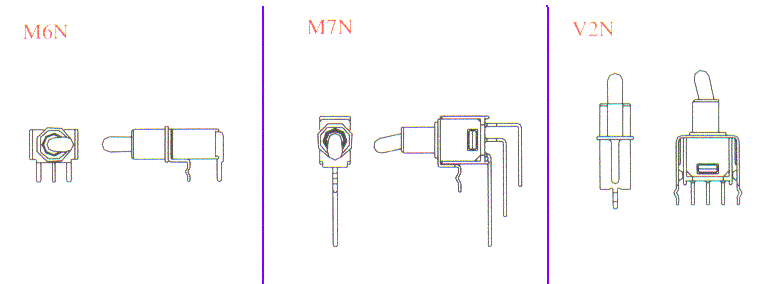

Snap-in Termination options ( Click drawing to enlarge )

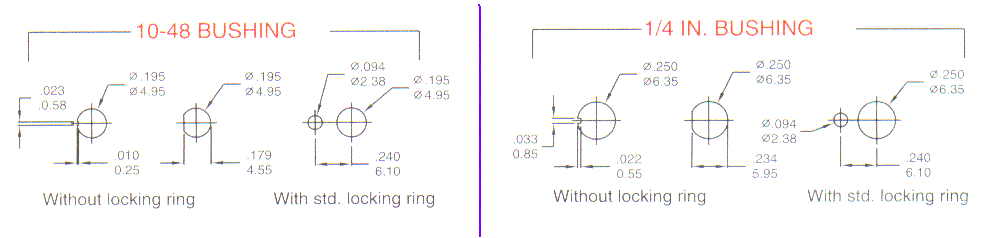

Panel Mounting (Click drawing to enlarge )

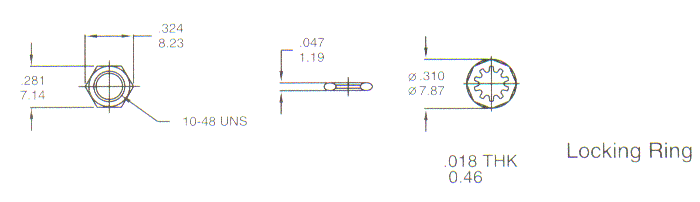

Hardware (Click drawing to enlarge )
