| Contact Ration: |
Dependent upon contact material |
| (Q) Fixed terminal: |
Silver plated copper alloy |
| Moving contact: |
Silver plated copper alloy |
| Rating: |
3 Amps @ 120VAC or 28VDC
1 Amps @ 250 VAC |
| (R) Fixed Terminal: |
Copper alloy with gold plate over nickel
plate |
| Moving contact: |
Copper alloy with gold plate over nickel
plate |
| Rating: |
0.4 VA max. @ 20VAC or DC max |
| Electrical Life: |
50,000 make-and-break cycles at full load. |
| Contact Resistance: |
20 milli ohm max. initial @ 2- 4 VDC,
100 mA for both silver and gold plated contacts. |
| Insulation Resistance: |
1,000 M ohm min. |
| Dielectric Strength: |
1000 V RMS @sea level. |
| Operating Temperature: |
-30oC to 85oC |
Materials：
Case & Bushing: Glass filled nynon6/6,
flame retardant, heat stabilized (UL94V-0)

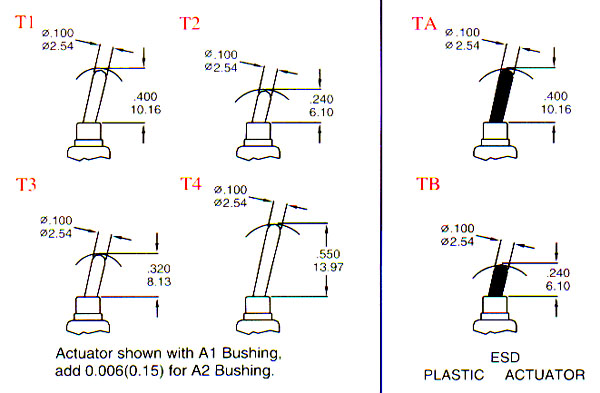

Actuator: Brass, chrome plated, internal o-ring seal. Standard for
all actuators.
Switch Support: Brass, tin plated
Contact/terminals: Silver or Gold plated copper alloy. |
