Specification：
| Contact Ration: |
Dependent upon contact material |
| (Q) Fixed terminal: |
Silver plated copper alloy |
| Moving contact: |
Silver plated copper alloy |
| Rating: |
5 Amps with resistive load @ 120VAC or 28VDC
2 Amps with resistive load @ 250 VAC |
| (R) Fixed Terminal: |
Copper alloy with gold plate over nickel plate |
| Moving contact: |
Copper alloy with gold plate over nickel plate |
| Rating: |
0.4 VA max. @ 20VAC or DC max |
| Electrical Life: |
40,000 make-and-break cycles at full load. |
| Contact Resistance: |
10 milli ohm max. initial @ 2- 4 VDC,
100 mA for both silver and gold plated contacts. |
| Insulation Resistance: |
1,000 M ohm min. |
| Dielectric Strength: |
1000 V RMS @sea level. |
| Operating Temperature: |
-30oC to 85oC |
Materials：
Case: Diallyl phthalate (DAP)(UL94V-0)
Toggle Handle: Brass, chrome plated
Bushing: Brass, nickel plated
Housing: Stainless Steel
Terminal/Switch Support: Brass, tin plated
CONTACT: Silver or gold plated. |
|
|
|

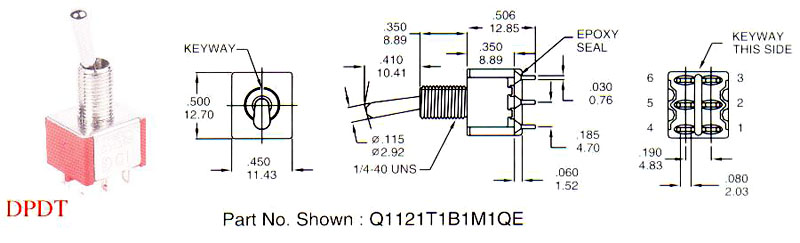

| ( For example ) 4AS1-R1-2-M2-Q-E |
|
|
Acurator
Options
Bushing
Options
Eproxy Options
Termination Options |
|
Model No.
|
Actuator
|
Bushing
|
Terminations
|
Contact Materials
|
Seal
|
|
UL/CSA |
|
|
|
|
|
|
Q1111/ |
1MS1 |
T1 |
B1 |
M1 |
Q=SILVER |
E=EPOXY (STD) |
|
Q1112/ |
1MS2 |
T2 |
B2 |
M2 |
R=GOLD |
N=NO EPOXY |
|
Q1113/ |
1MS3 |
T3 |
B3 |
M3 |
|
|
|
Q1114/ |
1MS4 |
T4 |
B4 |
M5-1 |
|
|
|
Q1115/ |
1MS5 |
T5 |
B5 |
M5-2 |
|
|
|
Q1121/ |
1MD1 |
T6 |
B6 |
M5-3 |
|
|
|
Q1122/ |
1MD2 |
T6-1 |
B7 |
M5-4 |
|
|
|
Q1123/ |
1MD3 |
T6-2 |
B8 |
M6 |
|
|
|
Q1124/ |
1MD4 |
T7 |
B9 |
M6N |
|
|
|
Q1125/ |
1MD5 |
T8 |
B11 |
M7 |
|
|
|
Q1126/ |
1MD6 |
T9 |
B12 |
VS2 |
|
|
|
Q1131/ |
1M31 |
T10 |
B13 |
V2N |
|
|
|
Q1132/ |
1M32 |
|
B15 |
VS3 |
|
|
|
Q1133/ |
1M33 |
|
B16 |
VS4 |
|
|
|
Q1134/ |
1M34 |
|
B17 |
VS5 |
|
|
|
Q1135/ |
1M35 |
|
B20 |
|
|
|
|
Q1141/ |
1M41 |
|
|
|
|
|
|
Q1142/ |
1M42 |
|
|
|
|
|
|
Q1143/ |
1M43 |
|
|
|
|
|
|
Q1144/ |
1M44 |
|
|
|
|
|
|
Q1145/ |
1M45 |
|
|
|
|
|
|
Q1146/ |
1M46 |
|
|
|
|
|
|
| SWITCH FUNCTION |
|
NO.
POLES |
UL/CSA
MODEL
NO. |
MODEL
NO. |
SWITCH FUNCTION |
CONNECTED TERMINALS |
|
POS.1 |
POS.2 |
POS.3 |
POS.1 |
POS.2 |
POS.3 |
|
SP |
Q1111 |
1MS1 |
ON |
NONE |
ON |
 |
OPEN |
 |
|
Q1112 |
1MS2 |
ON |
NONE |
MOM |
|
Q1113 |
1MS3 |
ON |
OFF |
ON |
|
Q1114 |
1MS4 |
MOM |
OFF |
MOM |
|
Q1115 |
1MS5 |
ON |
OFF |
MOM |
|
DP |
Q1121 |
1MD1 |
ON |
NONE |
ON |
 |
OPEN |
 |
|
Q1122 |
1MD2 |
ON |
NONE |
MOM |
|
Q1123 |
1MD3 |
ON |
OFF |
ON |
|
Q1124 |
1MD4 |
MOM |
OFF |
MOM |
|
Q1125 |
1MD5 |
ON |
OFF |
MOM |
|
Q1126 |
1MD6 |
ON |
ON |
ON |
2-3,5-6 |
2-3,
5-4 |
2-1,5-4 |
|
3P |
Q1131 |
1M31 |
ON |
NONE |
ON |
 |
OPEN |
 |
|
Q1132 |
1M32 |
ON |
NONE |
MOM |
|
Q1133 |
1M33 |
ON |
OFF |
ON |
|
Q1134 |
1M34 |
MOM |
OFF |
MOM |
|
Q1135 |
1M35 |
ON |
OFF |
MOM |
|
4P |
Q1141 |
1M41 |
ON |
NONE |
ON |
 |
OPEN |
 |
|
Q1142 |
1M42 |
ON |
NONE |
MOM |
|
Q1143 |
1M43 |
ON |
OFF |
ON |
|
Q1144 |
1M44 |
MOM |
OFF |
MOM |
|
Q1145 |
1M45 |
ON |
OFF |
MOM |
|
Q1146 |
1M46 |
ON |
ON |
ON |
2-3,5-6,8-9,11-12 |
2-3,
5-4,
8-9,
11-10 |
2-1,5-4,8-7,11-10 |
|
MOM=MOMENTARY |
|
|

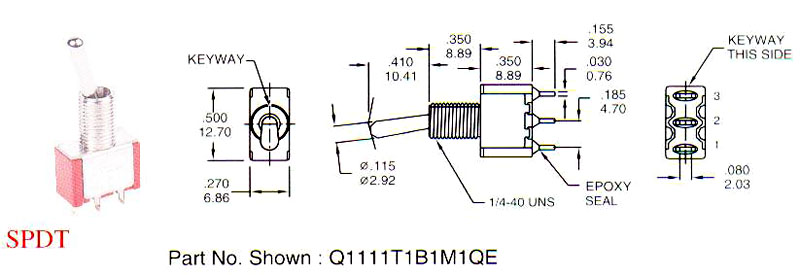

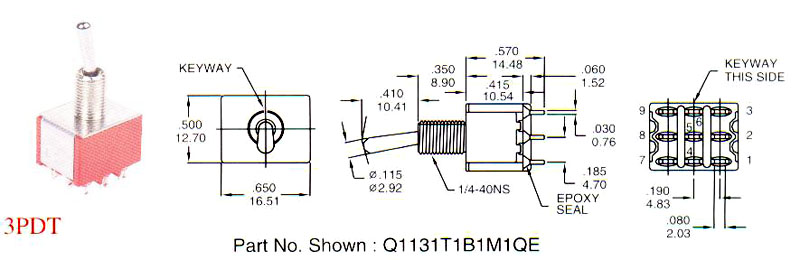

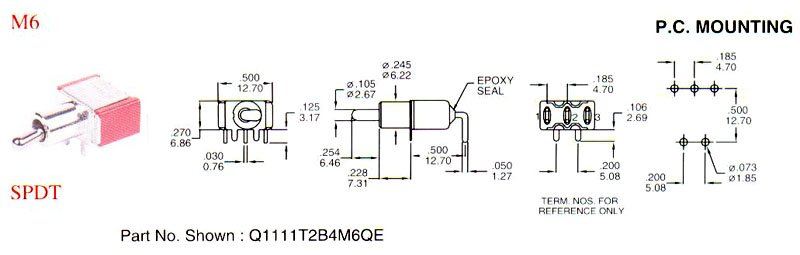

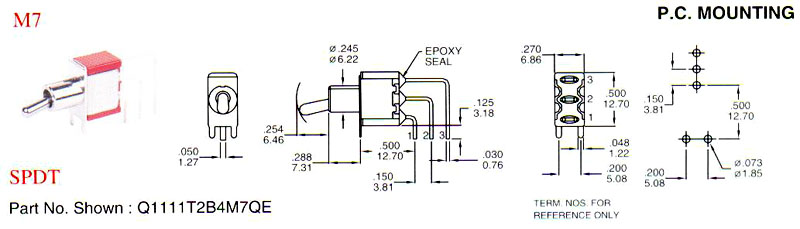

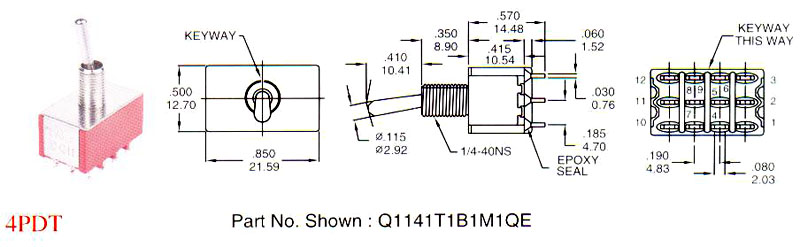

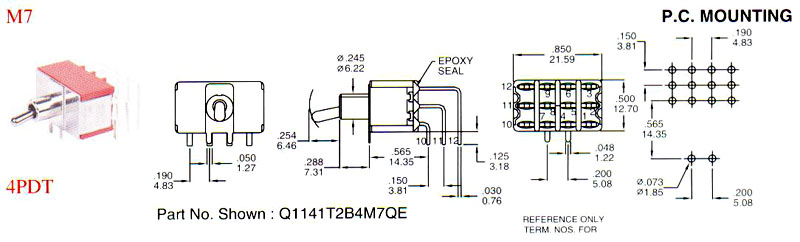

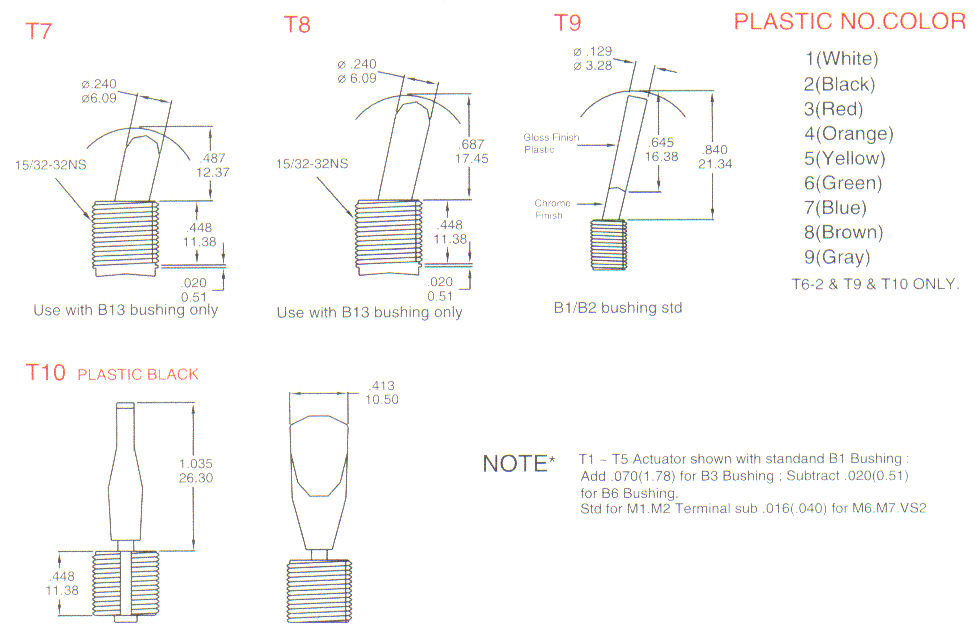

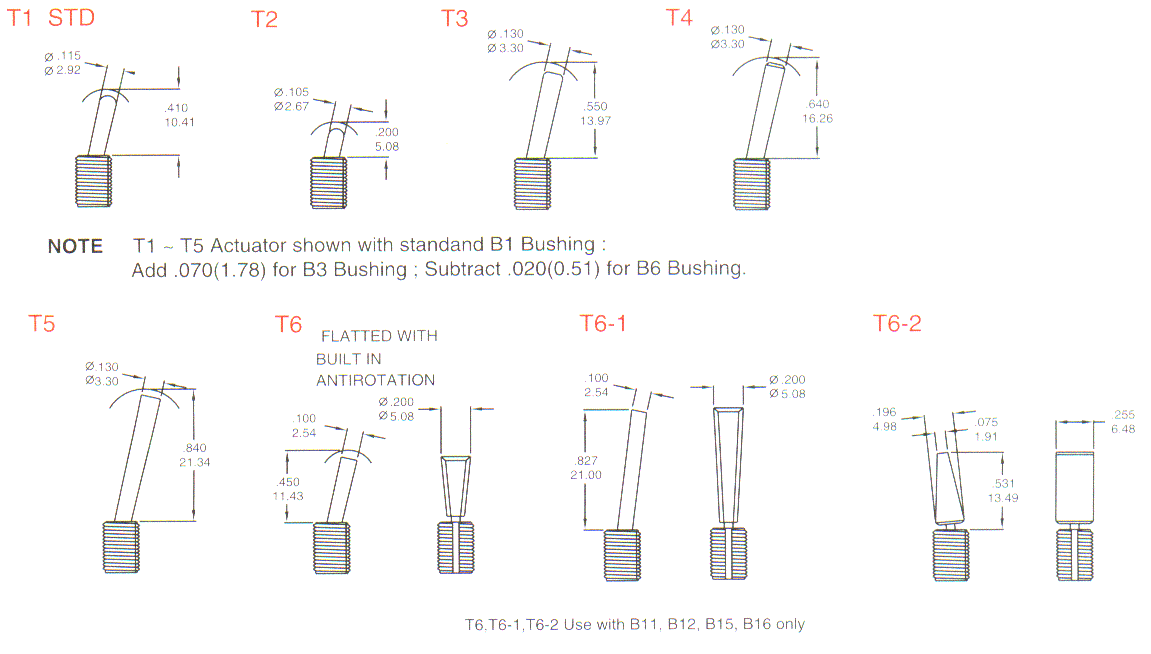

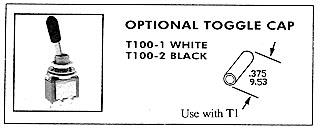

Actuator Options (
Click drawing to enlarge )
|
 |
 |

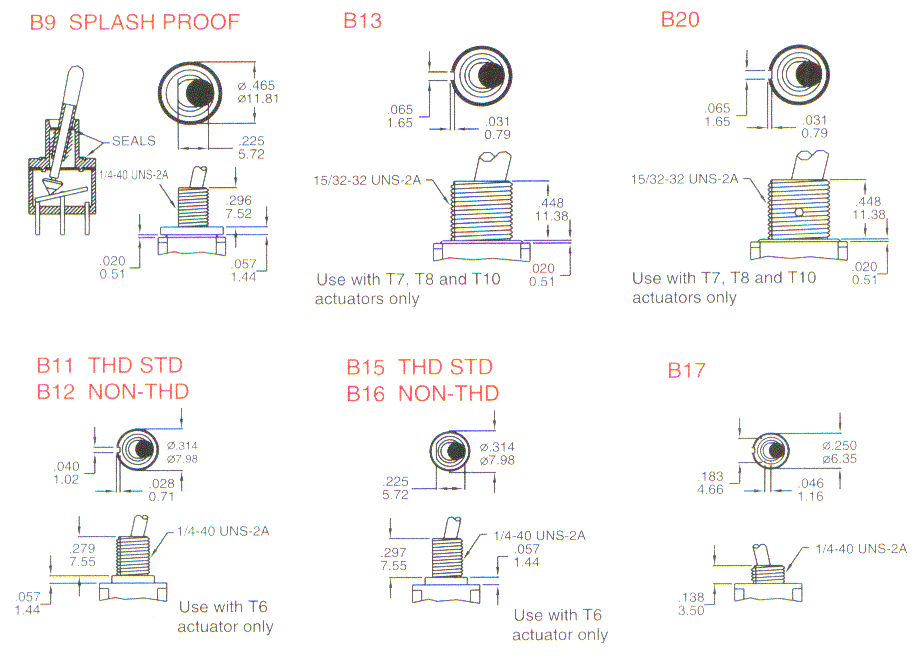

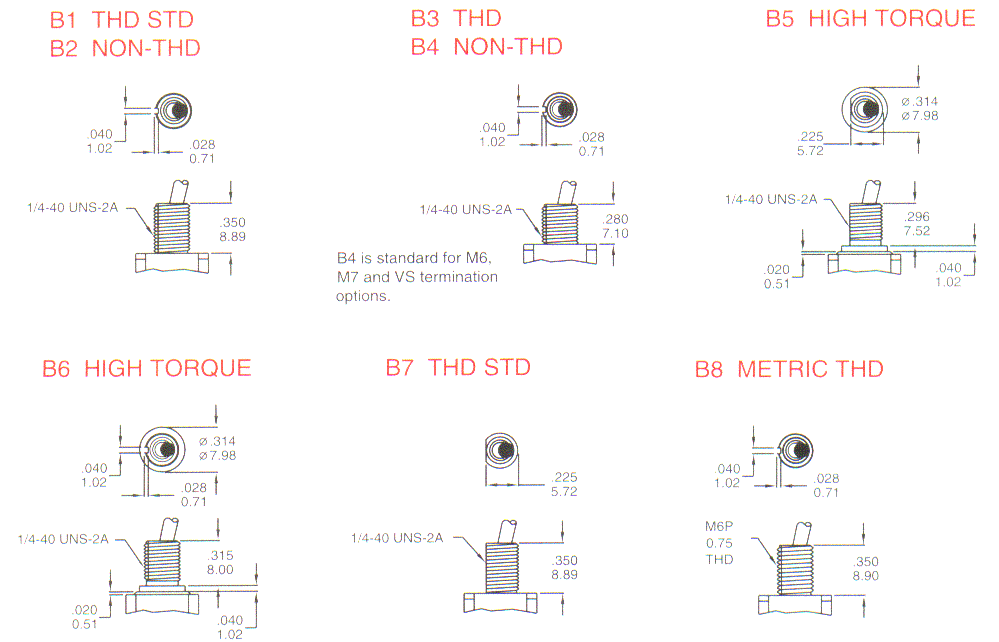

| Bushing
Options ( Click drawing to
enlarge ) |
 |
 |

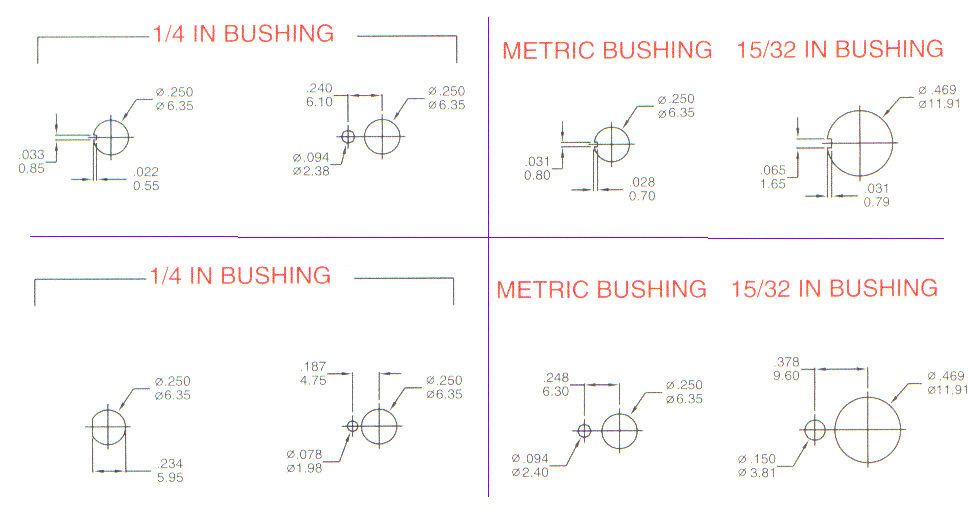

| Panel
Mounting ( Click drawing to enlarge ) |
 |

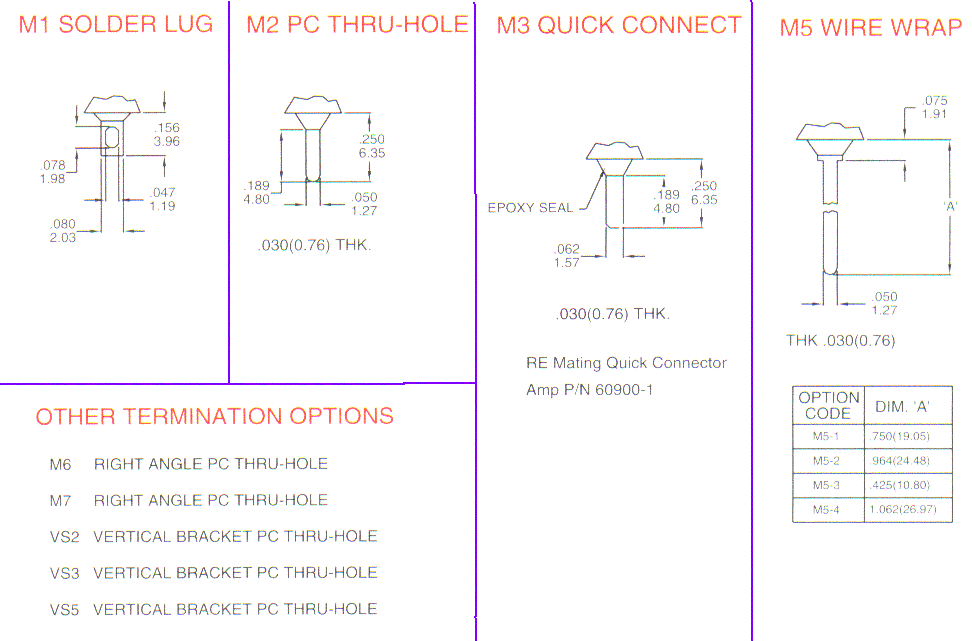

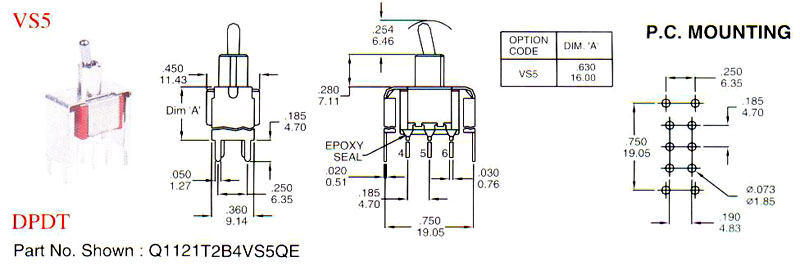

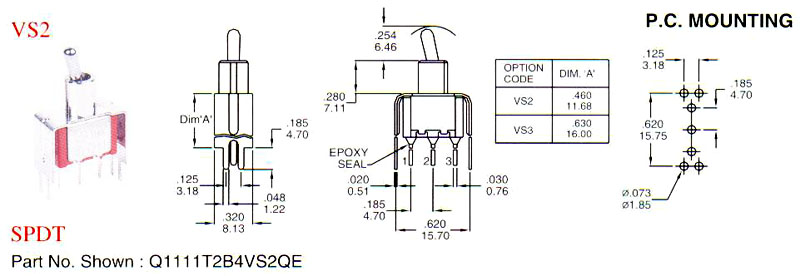

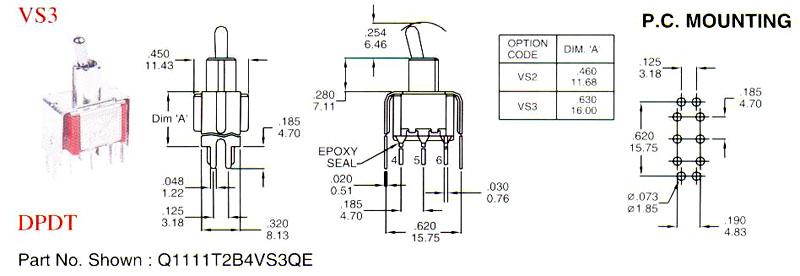

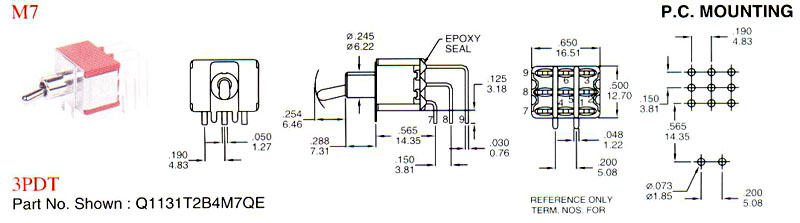

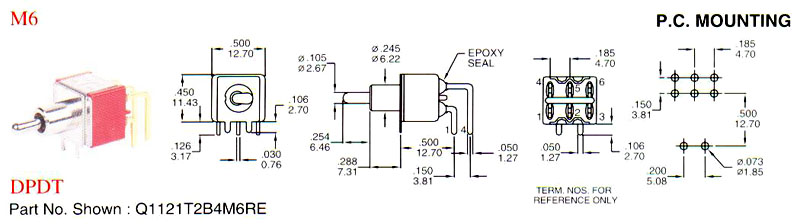

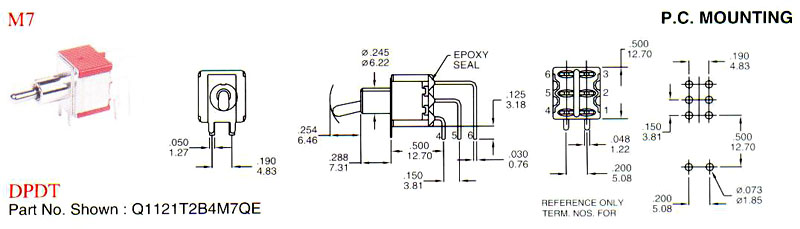

| Termination
Options ( Click drawing to
enlarge ) |
 |

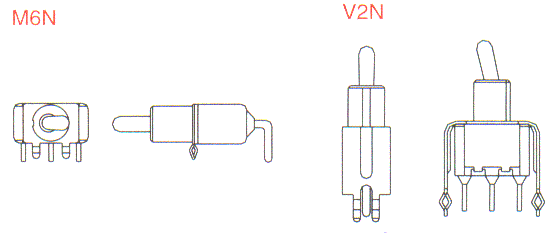

| Snap-In Termination Options |
 |

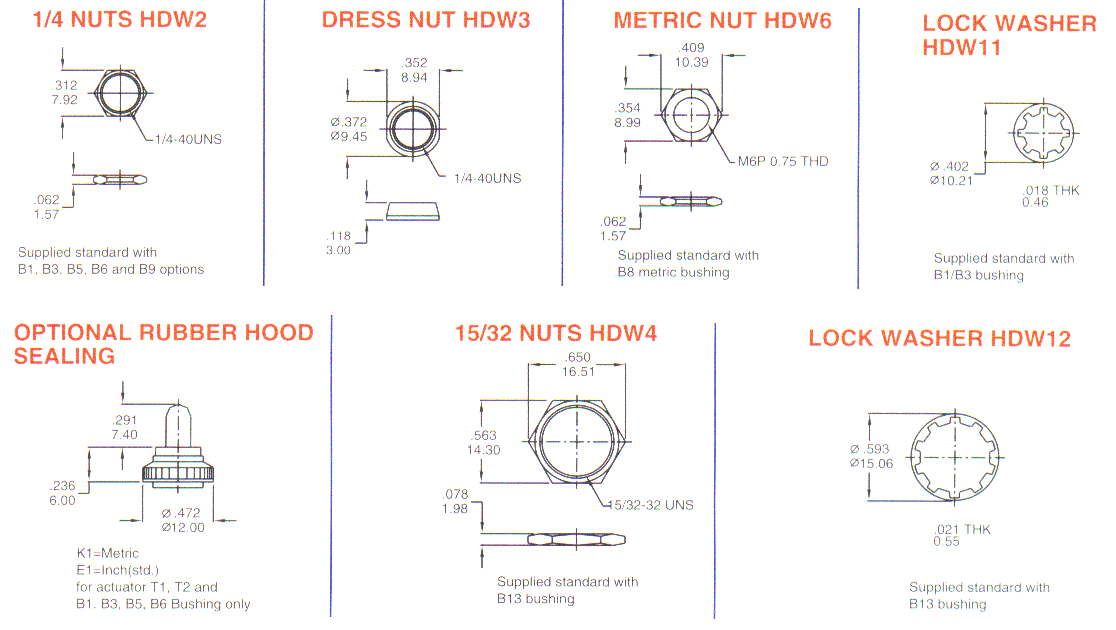

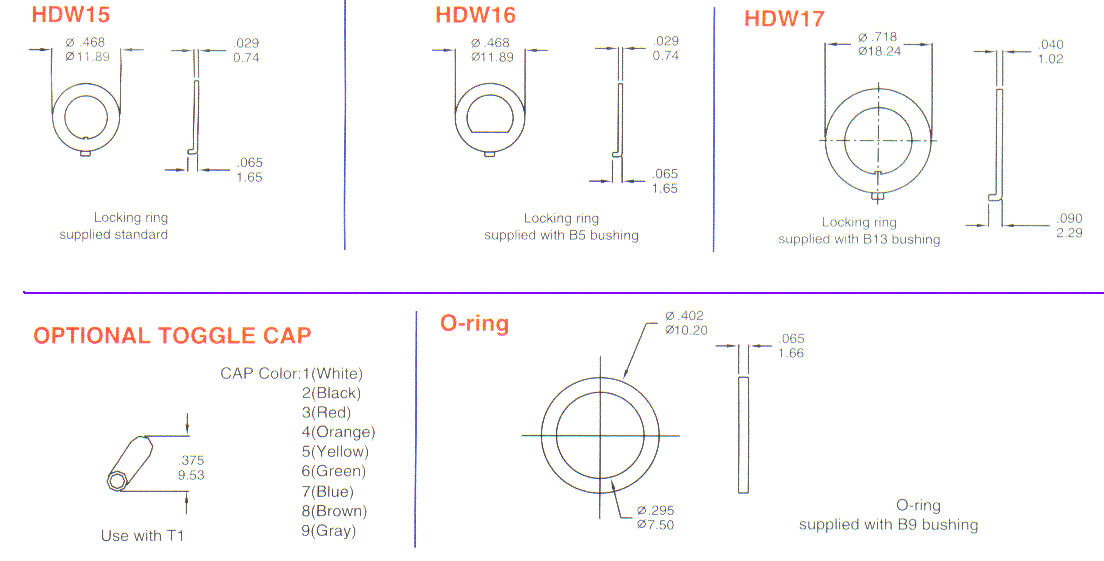

| Hardware
(Click drawing to enlarge ) |
 |
 |
 |
