1A Sealed Miniature Toggle Switches

Specification：

Contact Ration: Dependent upon contact material
(Q) Fixed terminal: Silver plated copper alloy
Moving contact: Silver plated copper alloy
Rating: 5 Amps with resistive load @ 120VAC or 28VDC
2 Amps with resistive load @ 250 VAC
(R) Fixed Terminal: Copper alloy with gold plate over nickel plate
Moving contact: Copper alloy with gold plate over nickel plate
Rating: 0.4 VA max. @ 20VAC or DC max
Electrical Life: 30,000 make-and-break cycles at full load.
Contact Resistance: 10 milli ohm max. initial @ 2- 4 VDC,
100 mA for both silver and gold plated contacts.
Insulation Resistance: 1,000 M ohm min.
Dielectric Strength: 1000 V RMS @sea level.
Operating Temperature: -30oC to 85oC
Materials：
　Case & Bushing: Glass filled nylon 6/6, flame retardant, heat stabilized (UL94V-0).
　 Actuator: Brass, chrome plated with internal, O-ring seal standard.
　 Switch support: Brass or steel, tin plated
　 Switch support retainer: Stainless steel
　 Contacts/Terminals: Copper alloy, with silver or gold plated.
　

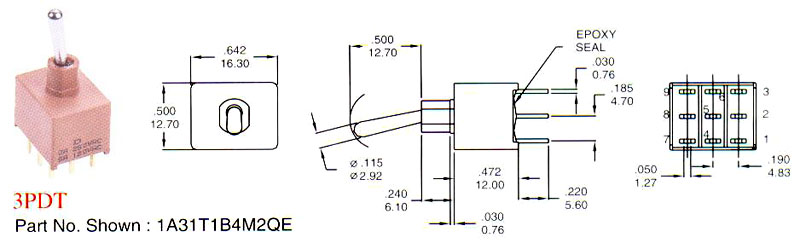

Part number: 1AS1T1B4M2RE
　

lost image

　

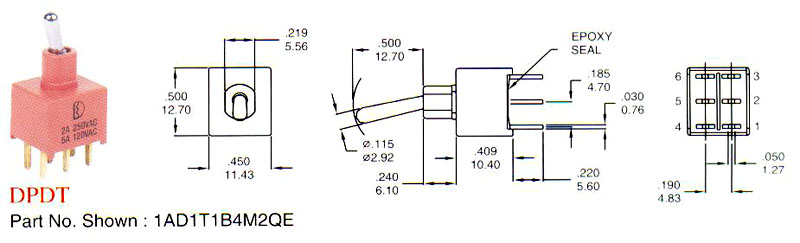

Part number: 1AD1T1B4M2QE
Part number: 1A31T1B4M2QE
Part number: 1AS1T2B4M6QE
Part number: 1AD1T2B4M6QE

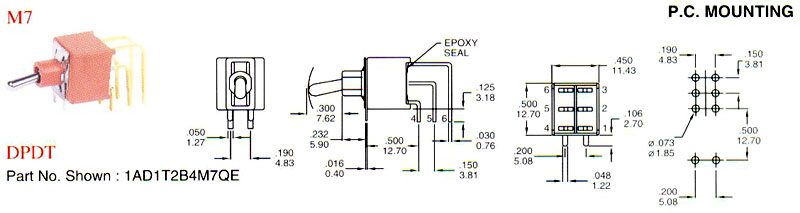

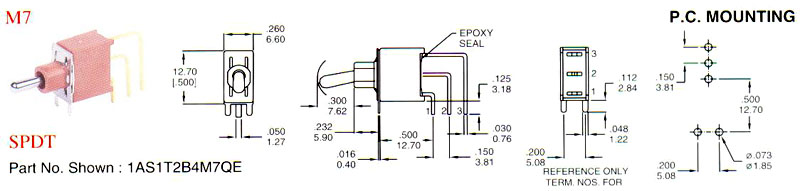

Part number: 1AS1T2B4M7QE

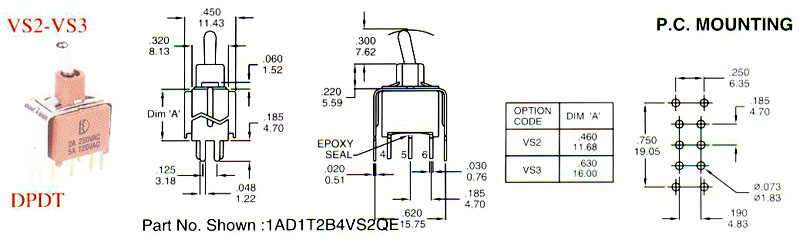

Part number: 1AD1T2B4M7QE
Part number: 1A31T2B4M7QE

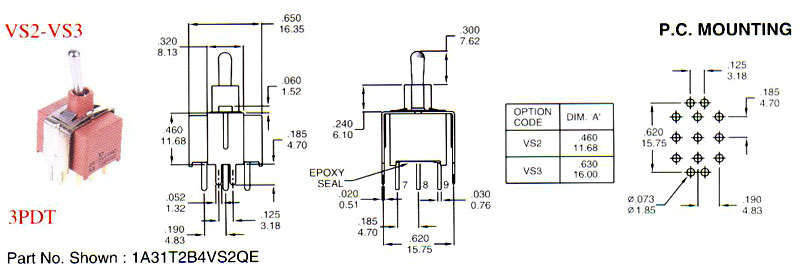

Part number:1AS1T2B4VS2QE
Part number:1AD1T2B4VS2QE
Part number:1A31T2B4VS2QE
( For example ) 1AS1-T1-B1-M1-Q-E

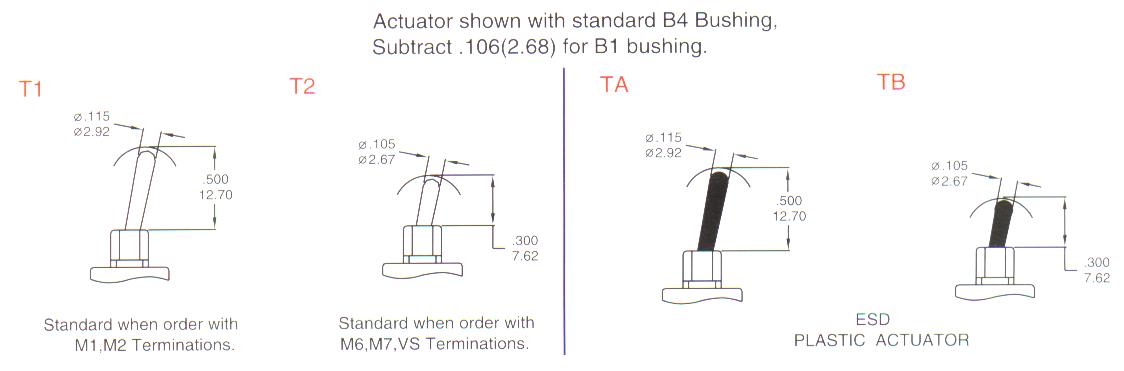

Acurator Options

Bushing Options

　

　

　

　

　

　

Eproxy Options

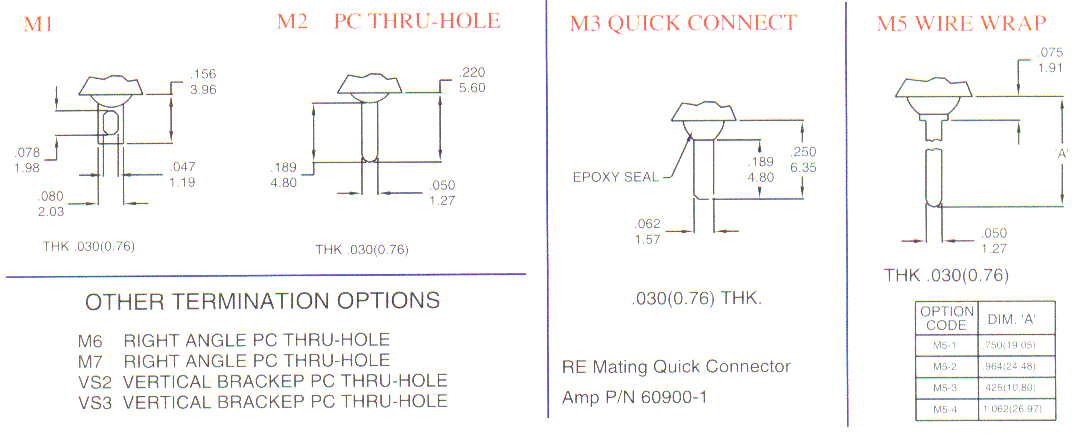

Termination Options

Model No.

Actuator

Bushing

Terminations

Contact Materials

Seal

1AS1

T1

B1

M1

Q=Silver

E=Epoxy

1AS2

T2

B4

M2

R=Gold

　

1AS3

TA

　

M6

　

　

1AS4

TB

　

M6N

 　

　

1AS5

　

　

M7

 　

　

1AD1

　

　

M7N

 　 　

1AD2

　

　

VS2

 　 　

1AD3

　

　

V2N

 　 　

1AD4

　

　

VS3

 　 　

1AD5

　

　

　

 　 　

1AD6

　

　

　

 　 　

1A31

　

　

　

 　 　

1A32

　

　

　

 　 　

1A33

　

　

　

 　 　

1A34

　

　

　

 　 　

1A35

　

　

　

 　 　
SWITCH FUNCTION

NO
POLES

MODEL
NO.

SWITCH FUNCTION

CONNECTED TERMINALS

POS.1

POS.2

POS.3

POS.1

POS.2

POS.3

SP

1AS1

ON

NONE

ON

OPEN

1AS2

ON

NONE

MOM

1AS3

ON

OFF

ON

1AS4

MOM

OFF

MOM

1AS5

ON

OFF

MOM

DP

1AD1

ON

NONE

ON

OPEN

1AD2

ON

NONE

MOM

1AD3

ON

OFF

ON

1AD4

MOM

OFF

MOM

1AD5

ON

OFF

MOM

1AD6

ON

ON

ON

2-3,5-6

2-3,5-4

2-1,5-4

3P

1A31

ON

NONE

ON

OPEN

　

1A32

ON

NONE

MOM
　

1A33

ON

OFF

ON
　

1A34

MOM

OFF

MOM
　

1A35

ON

OFF

MOM
MOM=MOMENTARY
Actuator Options ( Click drawing to enlarge )

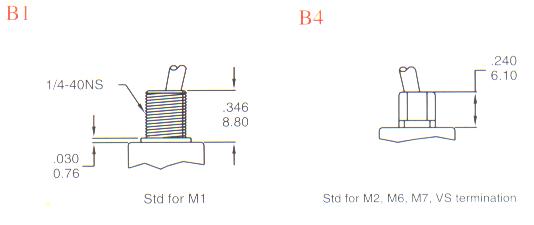

Bushing Options

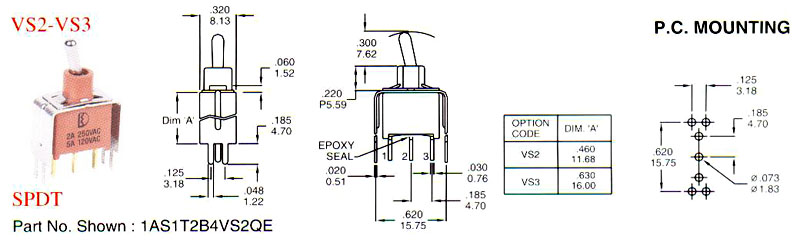

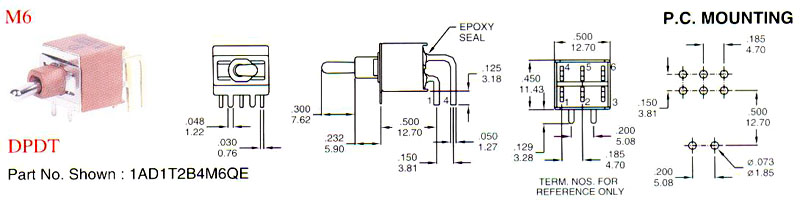

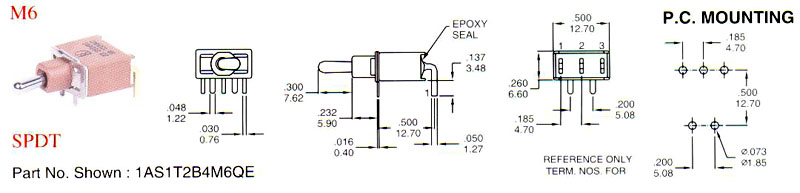

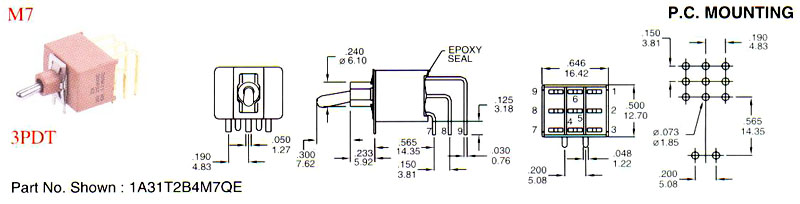

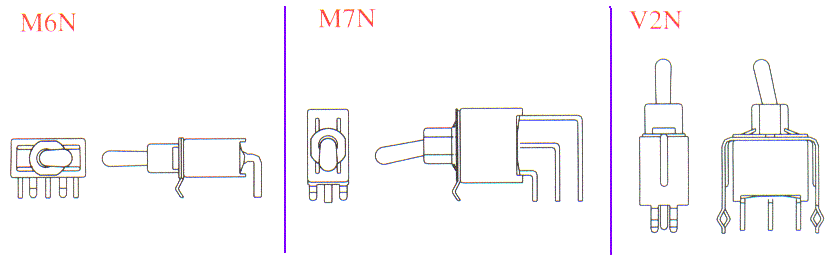

Termination Options ( Click drawing to enlarge )

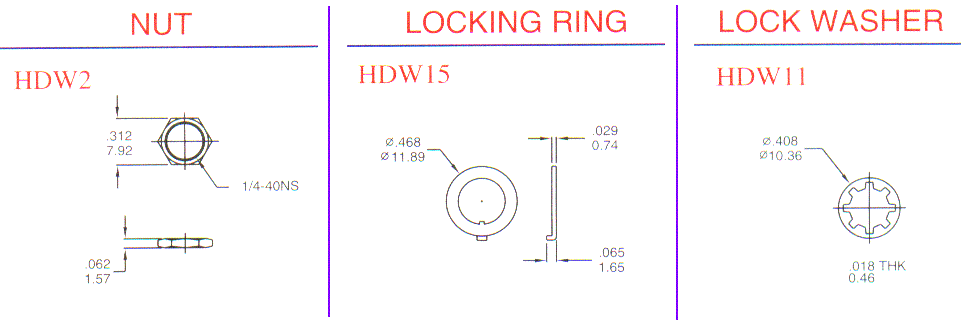

Hardware (Click drawing to enlarge )
