TACT SWITCH 觸動開關
/ TVCM09

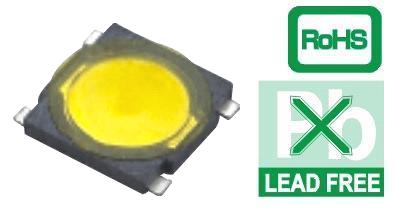

4.5x4.5 Low-profile SMT tact Switch
|
|
| Features | |
| ● | 4.5x4.5mm dimensions with 0.55mm height, suitable for high density |
| mounting. | |
| ● | Reflow solderable. |
| ● | Packaged with a 12mm wide embossed taping. |
|
Applications |
|
| ● | For operating various devices such as mobile phones, |
| ● | communication devices, video recorders, cameras and audio devices |
| that require low-prifile and lightweight design | |
| Specification | ||
| Items | Standard | |
| Operating temperature range | -20'C to +70'C | |
|
Electrical performance |
Rating | 50mA. 12V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 100V AC for 1 min. | |
| Contact resistance | 100MΩ max. | |
| Durability | Lifetime |
B:500,000 Cycles C:200,000 Cycles |
|
Mechanical performance |
Operating force |
B:180gf C:250gf |
| Travel | 0.20± 0.1mm | |
|
Dimensions |
Circuit Diagram |
|
Pad Layout |
|
 |
|
|
