Contact Rating: 50 mA @ 12VDC
Electrical life: 100,000 cycles
Mechanical life: 100,000 cycles min
Insulation Resistance: ＞100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: ＜100mΩ
Ambient Temper.: -25℃ to 70℃

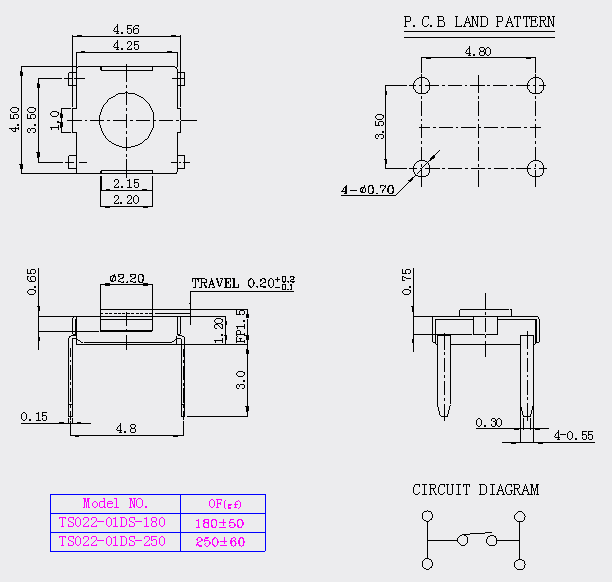

Operating Force: 180±50 gf；250±60 gf
Soldering Process:Use a soldering iron of 30 watts,controlled at 380℃ approximately 3 seconds while applying solder.
Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:（Figure 1）
Reflow soldering:When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250℃max. Condition for soldering (Reflow & Non-washable Type)Temperature Profile:（Figure 2）
