model: TC0240
RATING: DC12V 50mA
TRAVEL: 0.25+/-0.1MM
CONTACT_RESISTANCE: 100m ohm MAX
LIFE: 100K

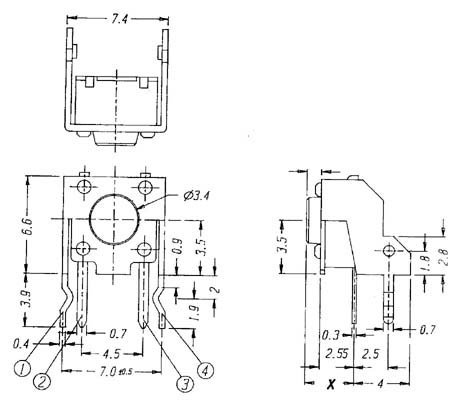

M1: TC0240 x=3.15
M2: TC0241 x=3.85
M3: TC0242 x=5.85
M4: TC0243 x=8.35
M5: TC0244 x=6.85
M6: TC0245 x=11.35
M7: TC0246 x=6.15
OPTIONAL_FORCE: T=100; V=130; X=160; Y=190; Z=250 (gf)
