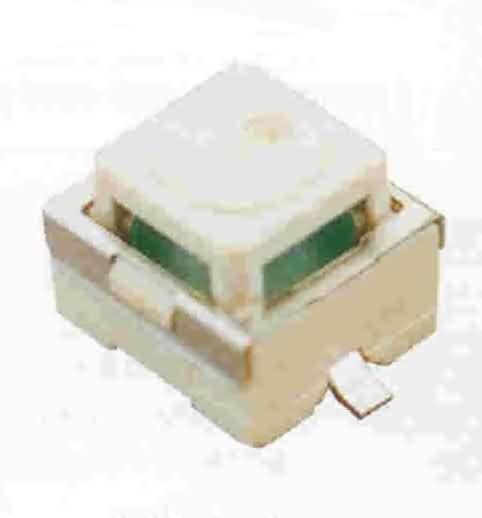

NTC009-AA1G

●DIP-G Type Vertical

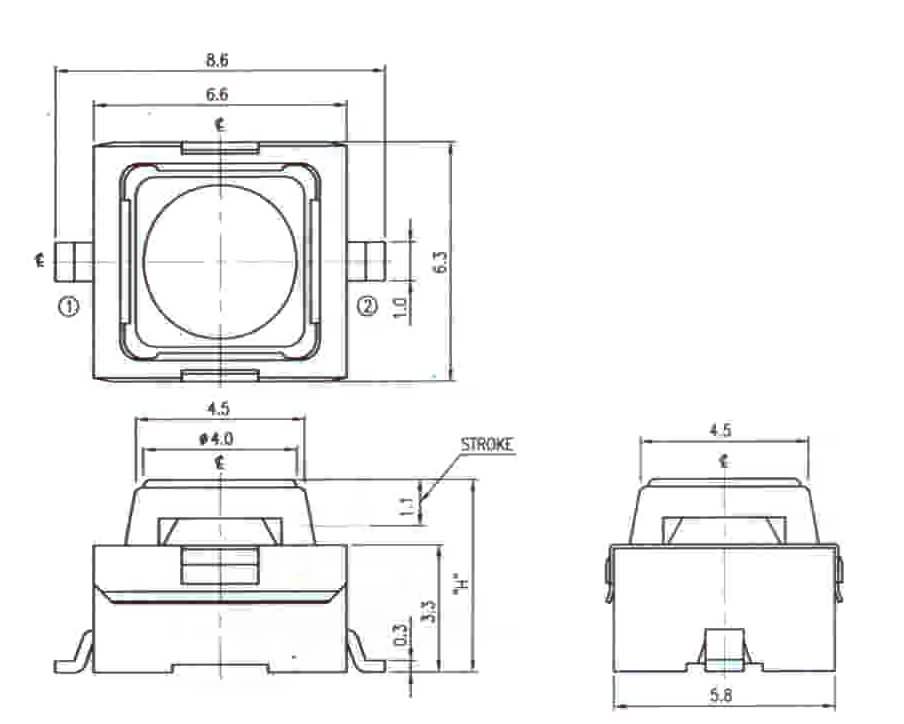

6.6L × 6.3W ×___H

SPECIFICATIONS
OPERATING FORCE: 200±60gf 50.000 LIFE CYCLES 120±50gf 50.000 LIFE CYCLES
PRODUCT NO.	"H"	PACKAGE
NTC009-AA1G-A___T	5.0	1.000 PCS/REEL
NTC009-AA1G-B___T	4.8

GENERAL SPECIFICATIONS
RATING	：DC12V 5mA.
CONTACT RESISTANCE	：1KΩ MAX.
INSULATION RESISTANCE	：DC500-100MΩ MIN
WITHSTAND VOLTAGE	：AC250V - 1 MINUTE.
STROKE	：1.1 ± 0.3mm
