TACT SWITCH 觸動開關  /  KFC-827

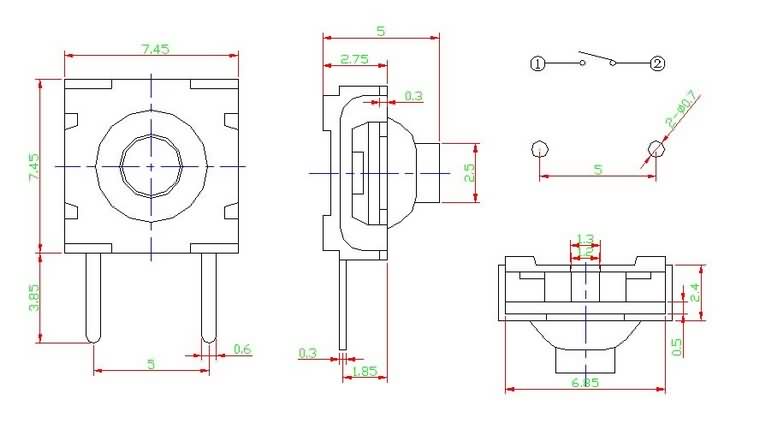

7x7  Washable Tact Switch

	参数 Item Standard 额定电流、电压 50mA 12VDC 绝缘电阻 100M min.(DC250V) 介电强度 AC 250V (50/60Hz 1分钟) 接触电阻 100m max.(初始) 电器寿命 V 100,000 次 J 100,000 次 H 50,000 次 使用温度范围 -25+ 70 操作力 V 13030gf J 16050gf H 25070gf
特点 Positive tactile feedback.    Sealed against flux solding.    Unique dust-proof construction.    Available with cambered terminal to      ensure selfretention on the printed      circuit board in manual insertion or      automatic insertion machines. 　      应用范围   operating switches in all types of       electronic equipment as audio       apparatus,office equipment , TV       sets,VCRs,heating control       system, microwave ovens.etc.
