五向開關 / 輕觸開關 / TACT SWITCH / EN047 Series

　

　
SPECIFICATION

Mechanical life：100,000 cycles min
Electrical life：100,000 cycles min
Contact Rating：50 mA @12 VDC ；
Insulation Resistance：＞ 100M Ω DC100V
Withstand Voltage：AC100V 1 minute
Contact Resistance ：＜ 100m Ω
Ambient Humidity：＜ 85%RH
Operating Temper. ：-20 ℃ to 70 ℃
Operating Force：300 ± 50gf
Soldering process：Hand Soldering ： Use a soldering iron of 30 watts ， controlled at 380 ℃ approximately 3 seconds while applying solder 。

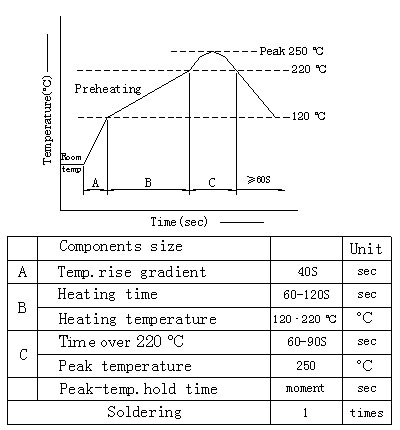

Reflow soldering：When applying reflow soldering, the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 1 ）

　

Rellow soldering （ Figure 1 ）

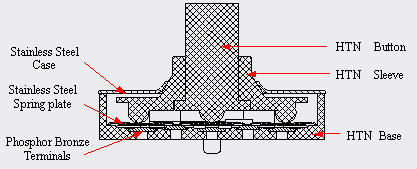

MATERIALS
Button：HTN or High Temperature NYLONG (UL94 V-0)
Sleeve：HTN or High Temperature NYLONG (UL94 V-0)
Base：HTN
Case：Stainless Steel
Spring plate：Stainless Steel
Terminals：Phosphor Bronze

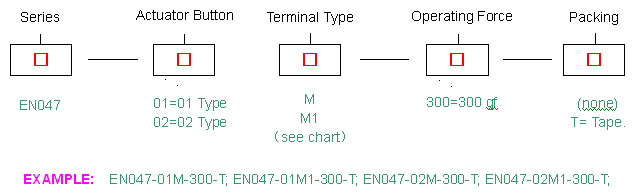

HOW TO ORDER

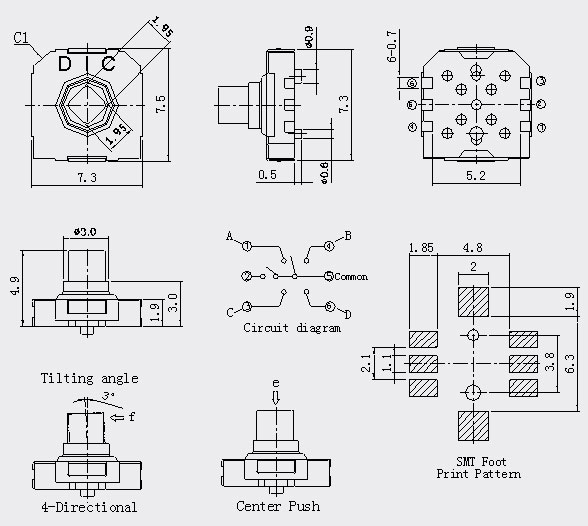

DIMENSION DRAWING OF EN047-01M-300 ( mm )
　

EN047-01M-300

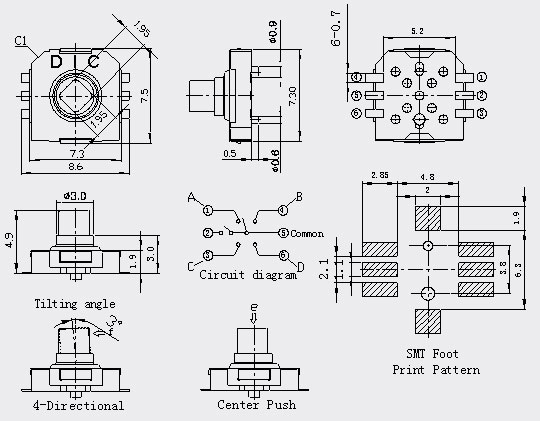

DIMENSION DRAWING OF EN047-01M1-300 ( mm )

EN047-01M1-300

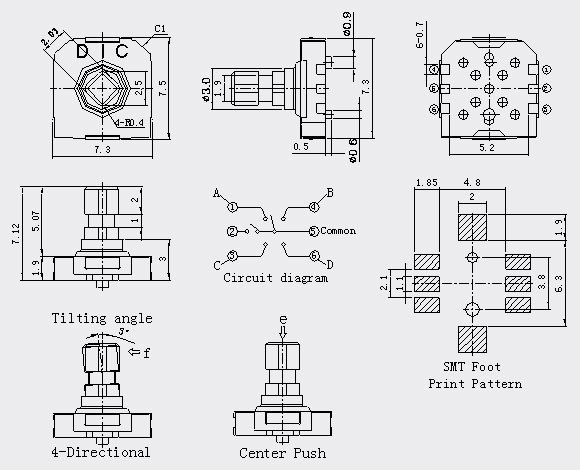

DIMENSION DRAWING OF EN047-02M-300 ( mm )

EN047-02M-300

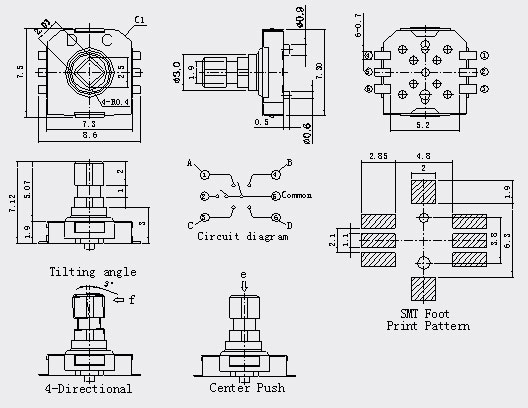

DIMENSION DRAWING OF EN047-02M1-300 ( mm )

EN047-02M1-300

PACKING EXPLANATION :
Taping packaging :

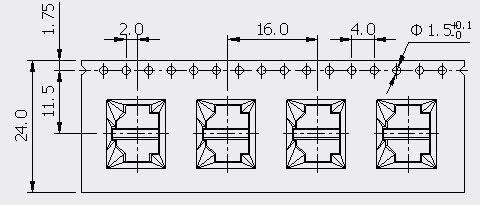

EN047-01M / 01M1: 700 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 1 ）
EN047-02M / 02M1: 450 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 1 ） Taping packaging :
EN047-01M / 01M1: 700 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 1 ）
EN047-02M / 02M1: 450 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions （ Figure 1 ）
