飛梭開關 / 輕觸開關 / PUSH LEVER SWITCH /EN039 Series

FEATURES:

  • Small dimensions
  • Mechanical life ： min. 1 x 10 5 cycles
  • Good feeling
SPECIFICATION

Contact Rating：10 mA @ 5VDC
Electrical life：100,000 cycles
Mechanical life：100,000 cycles min
Insulation Resistance：＞ 100M Ω DC100V
Withstand Voltage：AC100V 1 minute
Contact Resistance：＜ 100m Ω
Ambient Temper. ： -25 ℃ to 85 ℃
Operating Force：Lever Portion:70 ± 20gf, Push Portion: 250 ± 60gf
Soldering Process：Hand soldering ： Use a soldering iron of 30 watts,controlled at 380 ℃ approximately 3 seconds while applying solder.
Wave soldering：When applying wave soldering, The plastic using PA6T(HTN), the peak temperature of the wave Oven should be set to 260 ℃ max. Condition for soldering (Wave & Non-washable Type) Temperature Profile: （ Figure 1 ）
Reflow soldering：When applying reflow soldering, The plastic using PA6T(HTN), the peak temperature of the reflow Oven should be set to 250 ℃ max. Condition for soldering (Reflow & Non-washable Type) Temperature Profile: （ Figure 2 ）

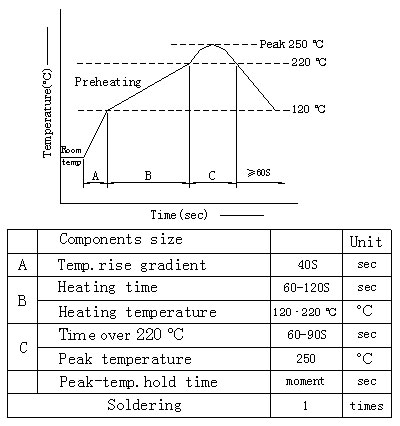

Reflow soldering （ Figure 2 ）

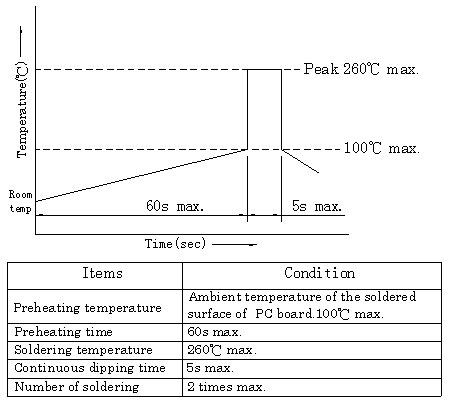

Wave soldering （ Figure 1 ）

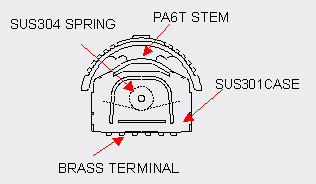

MATERIALS
Switch cover：SUS301
Switch Base：PA6T (UL94 V-0)
Color：Black
Actuating Button：PA6T(UL94 V-0)
Color：Black
Terminals：Brass(Plating silver)
Spring：SUS301
Spring Plate：C5210

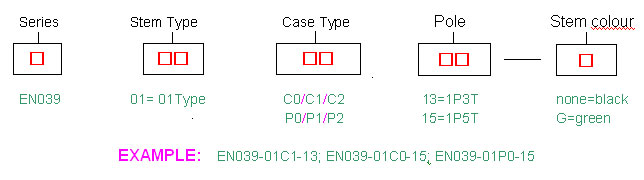

HOW TO ORDER

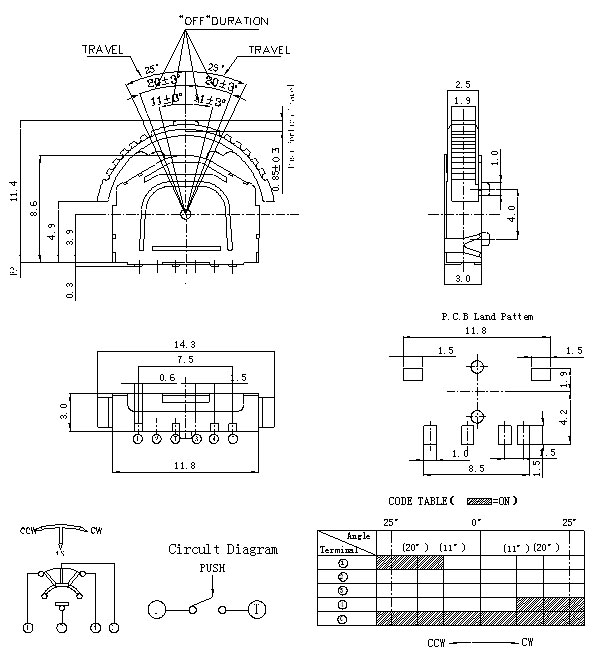

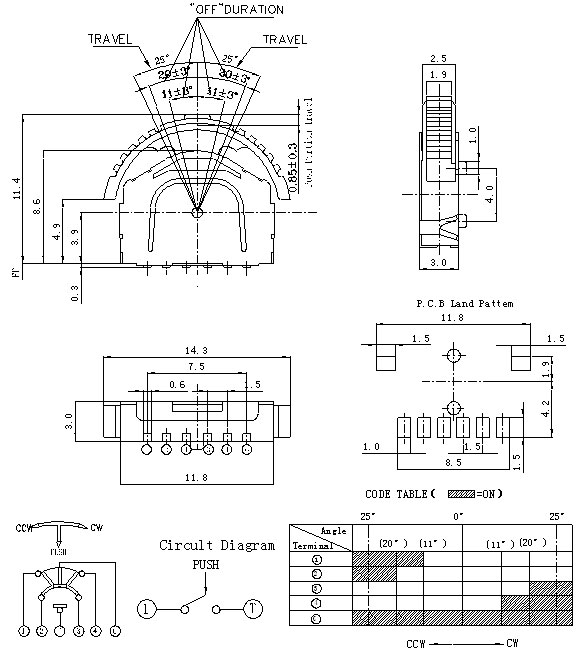

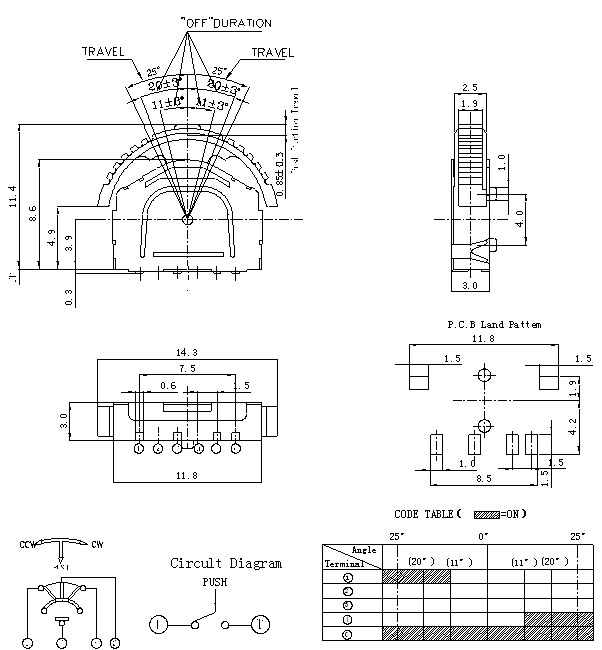

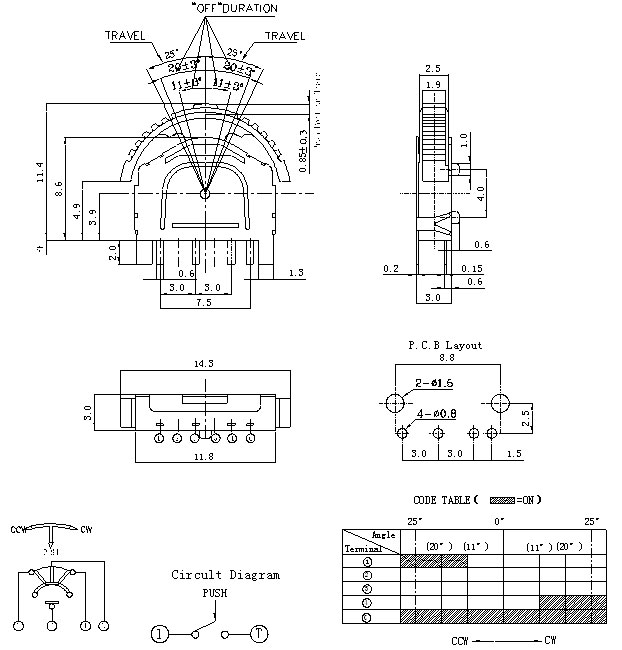

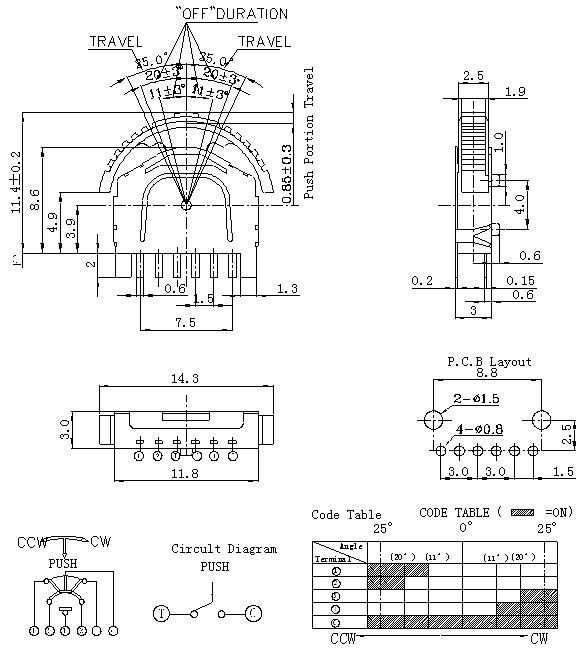

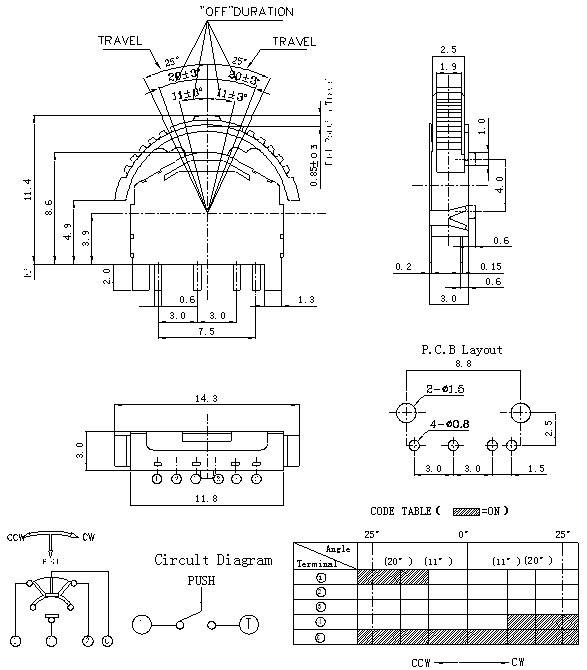

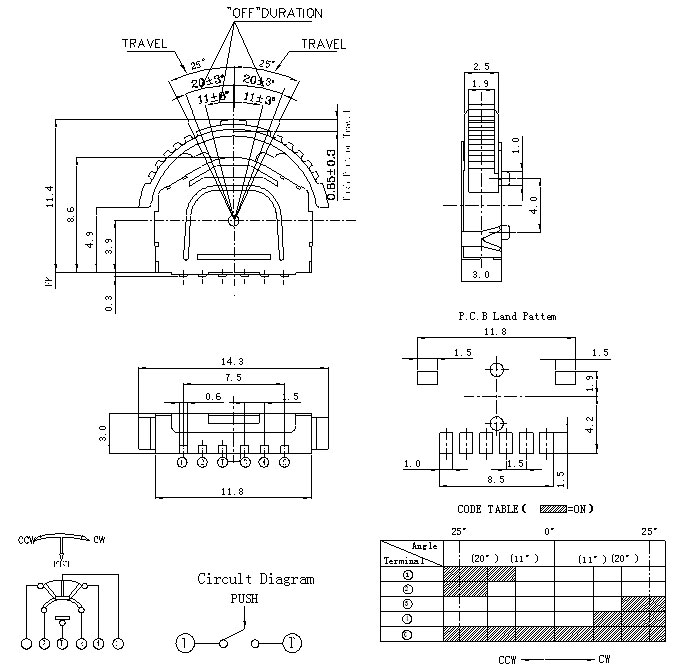

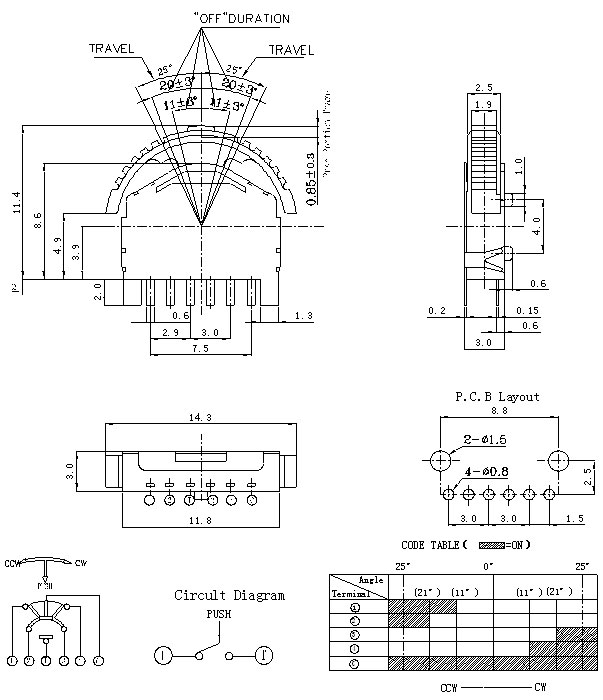

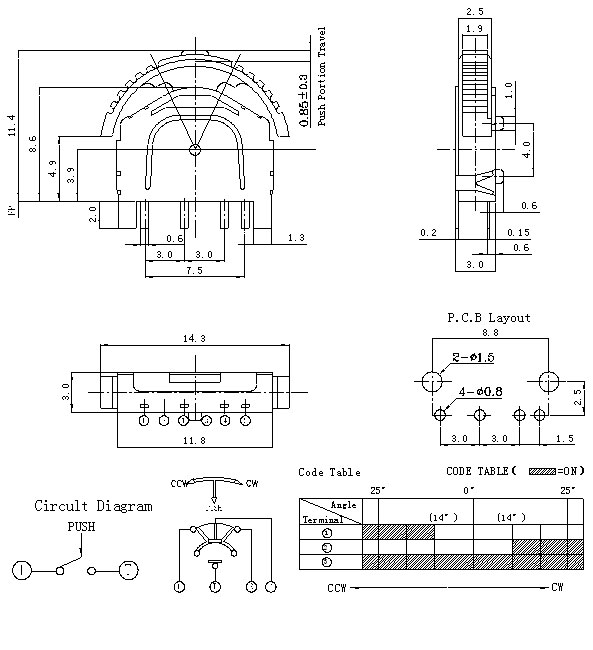

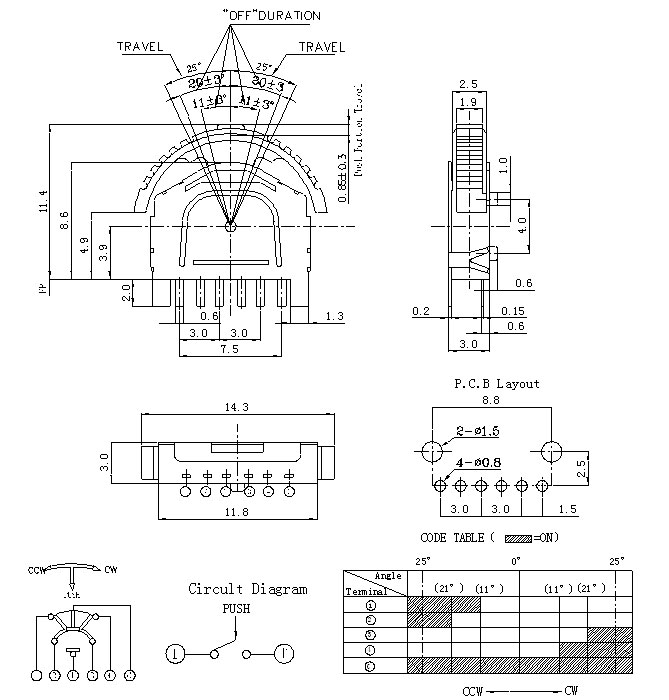

Terminal and cover Options:

EN039-01C0-13

EN039-01C1-13

EN039-01P0-13

EN039-01P1-13

EN039-01P2-13

EN039-01C0-15

EN039-01C1-15

EN039-01P0-15

EN039-01P1-15

EN039-01P2-15
PACKING EXPLANATION :

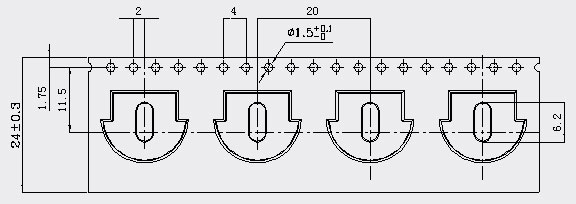

EN039-01C0-13/15 & EN039-01C1-13/15 series Taping packaging : 800 switches shall be packed in a reel;Ten(10)reels at maximum shall be packed in a package. Tape form and dimensions:
