SPECIFICATION

Mechanical life: 10,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.3Amps @30 VDC
Insulation Resistance: ＞100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: ＜100mΩ
Ambient Humidity: ＜85%RH；
Operating Temper.: -25℃ to 70℃
Operating Force: 200±100gf
Soldering process: Hand Soldering:Use a soldering iron of 30 watts，controlled at 380℃ approximately 3 seconds while applying solder

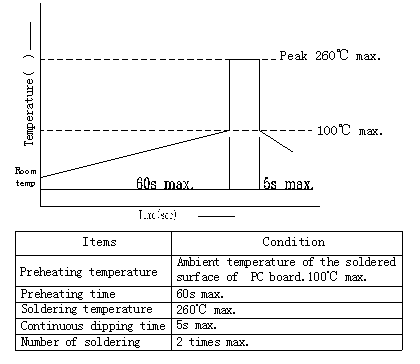

Wave soldering: When applying wave soldering, the peak temperature of the wave Oven should be set to 260℃max. Condition for soldering (Wave & Non-washable Type) Temperature Profile:

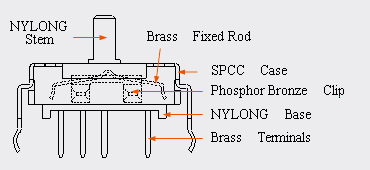

MATERIALS

Case: POM
Base: PBT
Stem: PBT
Terminals: Brass
Spring plate: Nickeet Silren
Clip: Phosphor Bronze

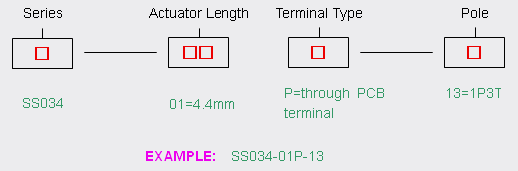

HOW TO ORDER

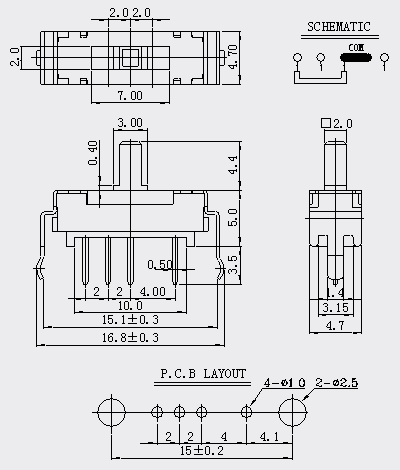

DIMENSION DRAWING of SS034-01P-13 (mm)
