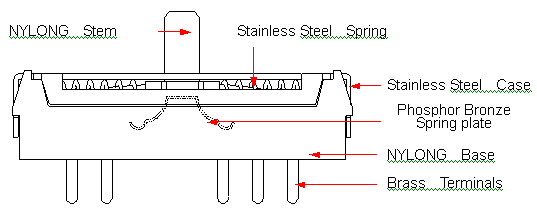

MATERIALS
Case: Stainless Steel Base: High Temperature NYLONG (UL94 V-0) Stem: High Temperature NYLONG (UL94 V-0) Terminals: Brass Spring plate: Phosphor Bronze Spring : Stainless Steel

SPECIFICATIONS
Mechanical life：10,000 cycles min Electrical life：10,000 cycles min Contact Rating：0.3Amps @4 VDC Insulation Resistance ：＞ 100M Ω DC100V Withstand Voltage ： AC100V 1 minute Contact Resistance：＜ 70m Ω Ambient Humidity：＜ 85%RH Operating Temper. ： -25 ℃ to 70 ℃ Soldering process：Hand Soldering ： Use a soldering iron of 30 watts ， controlled at 380 ℃ approximately 3 seconds while applying solder 。

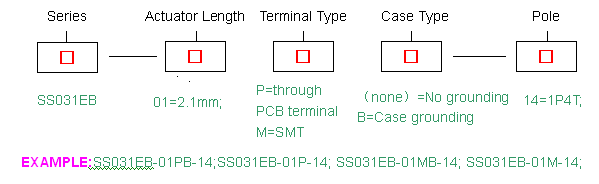

HOW TO ORDER

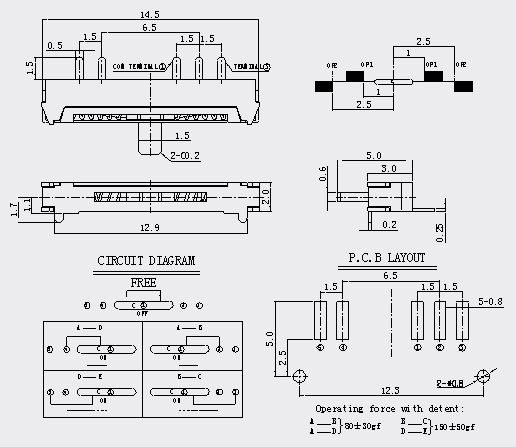

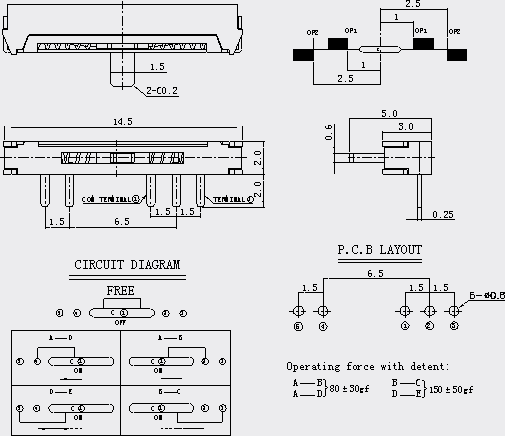

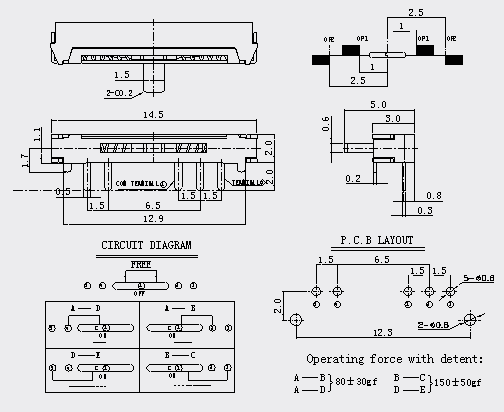

DIMENSION DRAWING OF SS031EB-01PB-14 （ mm ）

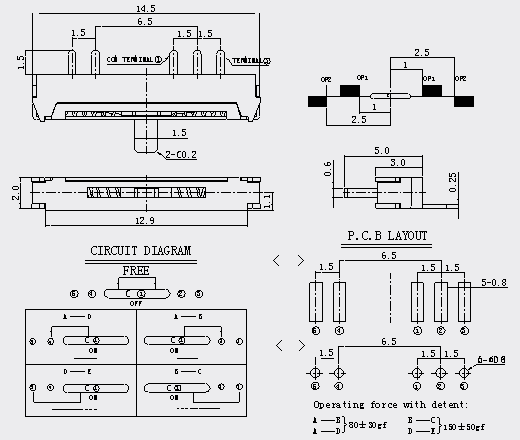

DIMENSION DRAWING OF SS031EB-01P-14 （ mm ）

DIMENSION DRAWING OF SS031EB-01MB-14 （ mm ）

DIMENSION DRAWING OF SS031EB-01M-14 （ mm ）
