VOLTAGE SELECTOR SLIDE SWITCHES

VS34 SERIES

Click for Larger Photo

Specifications & Features:

RATING: 10(1)A 250V~ add-9.gif (61 bytes)T85,  12A 125VAC,   12A 250VAC
INITIAL CONTACT RESISTANCE: 30madd-21.gif (92 bytes) Max.
INSULATION RESISTANCE: 100Madd-21.gif (92 bytes) Min. 500VDC
WITHSTAND VOLTAGE: 1000VAC FOR 1 MINUTE
OPERATION FORCE: 500add-8.gif (59 bytes)200 gf
ENDURANCE: 6,000 CYCLES

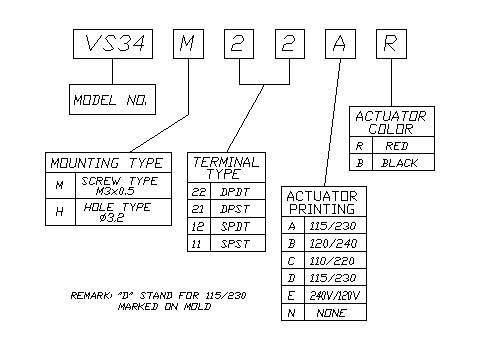

ORDERING CODE


SPECIFICATION DRAWINGS

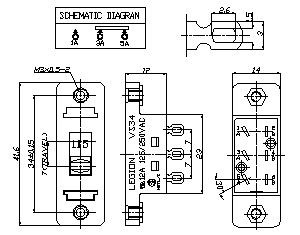

MODEL : VS34(M22AR)

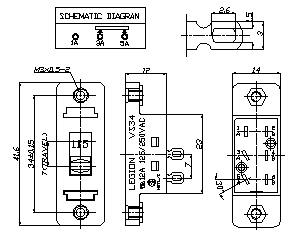

MODEL : VS34(M12AR)

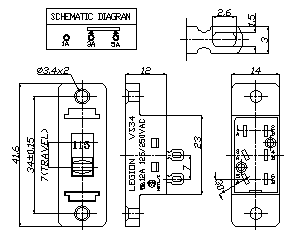

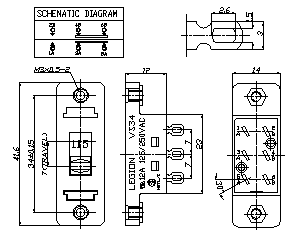

MODEL : VS34(M11AR) MODEL : VS34(H11AR)
