VOLTAGE SELECTOR SLIDE SWITCHES

VS12 SERIES

Click for Larger Photo

Specifications & Features:

RATING: 12(1)A 250V~ T85,   12A 125VAC,  12A 250VAC
INITIAL CONTACT RESISTANCE: 30madd-21.gif (92 bytes) Max.
INSULATION RESISTANCE: 100Madd-21.gif (92 bytes) Min. 500VDC
WITHSTAND VOLTAGE: 1000VAC FOR 1 MINUTE
OPERATION FORCE: 500add-8.gif (59 bytes)200 gf
ENDURANCE: 6,000 CYCLES

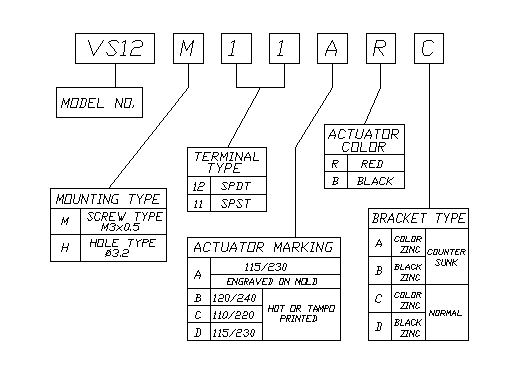

ORDERING CODE

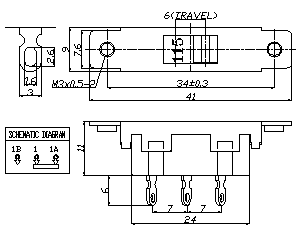

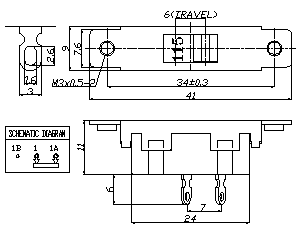

SPECIFICATION DRAWINGS

MODEL : VS12(M11AR) MODEL : VS12(M12AR)
