0.1" Pitch SPDT PCB Changeover switches / ESP Series

ESP20XX

FEATURES
The distance of 2 adjacent pins or stacked devices is 2.54 mm pitch
All plastics are UL 94V-O grade fire retardant
Low contact resistance and long mechanical life, suitable for signal
switching and communication equipments


APPLICATIONS
Measuring point changeover switches
Service switch
Controls for consumer devices


SPECIFICATIONS
SPDT TYPE (ESP10,20,30,40 Series)
　

ELECTRICAL CHARACTERISTICS
Contact rating 0.2A, 24VDC; 0.5A, 12VDC
Minimum contact rating 1mA, 10mV
Contact resistance Initial:50m Max.

After life test: 100m Max.
Dielectric strength 2mA, 500VDC for 60sec.
Capacitance 1.5pF Max.
Insulation resistance 10000M Min. under 500VDC
Mechanical life 5000 operations
　

GENERAL CHARACTERISTICS
Temperature range operating: -25 ~ +70

storage: -40 ~ +85
Solder temperature 230 for 3 sec.
Vibration normal operation at 10Hz to 60Hz,

1.5mm movement
　
Salt spray 35, 5% for 24 hours
Reflow soldering heat for
SMT type (reference)
　

PART NUMBERING SYSTEM

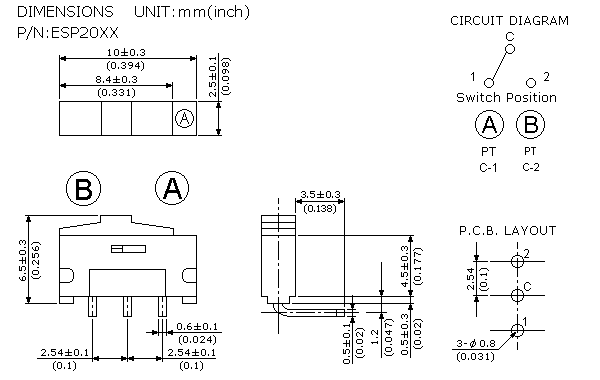

DIMENSIONS
Right angle terminals
