SW   SERIES
Sealed  Rocker  Switches,  Multi  Ciruit,  Heavy  Duty

  • 25A 12VDC / 15A  24VDC

  • nitial contact resistance : 20m ohm max.

  • Insulation resistance : 100M ohm min, at 500VDC

  • Dielectric strength : 1,000 VAC for 1 minute

  • Temperature range : -20 to + 125 degrees in Celsius
  • Housing: Nylon
  • Actuator: Nylon
  • Terminal: Silver plated brass
  • Contacts: Silver ally
  • Resistor: 1K Ohm
  • 12V Green LED between terminal 1 & 4, illuminated at position

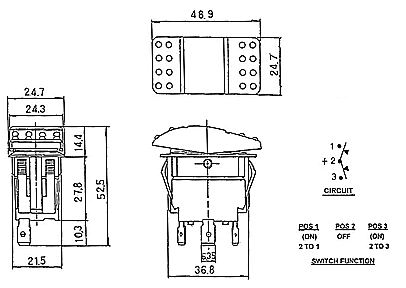

SW-2793-A3M2
SPDT
(ON)-OFF-(ON)

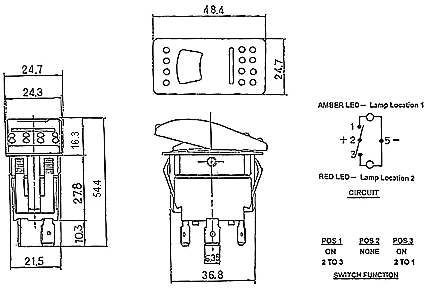

SW-2794-A2G5-2L
SPDT
ON-ON

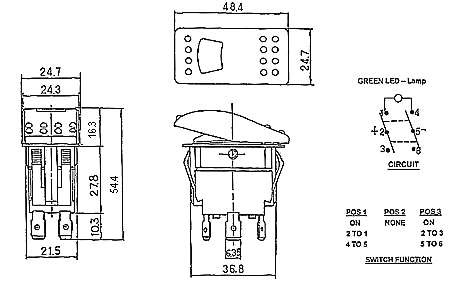

SW-2796-A2G4-1L
DPDT
ON-ON
