MR7 SERIES

SINGLE POLE ROCKER SWITCHES UP TO 15A 125VAC
Soldering, quick connecting and PCB terminals


  • 15A 125VAC
  • Initial contact resistance : 20m ohm (max.)
  • Insulation resistance : 100M ohm (min,) at 500VDC
  • Dielectric strength : 1,000VAC for 1 minute
  • Electrical life : 10,000 cycles
  • Illumination:100~125VAC
  • Base : Nylon 66, UL rated 94V-2 min
  • Actuator : PC / Nylon 66, UL rated 94V-2 min
  • Lamp case: PBT 94V-0
  • Leaf spring : Copper alloy
  • Contact : Silver alloy
  • Terminals: Silver plated Copper
  • Actuator tip: Nickel plated blase
  • Spring: piano wire
  • Neon lamp: Neon (DIA-4.0X10.0)
  • Resistor: Carbon film fixed resistor

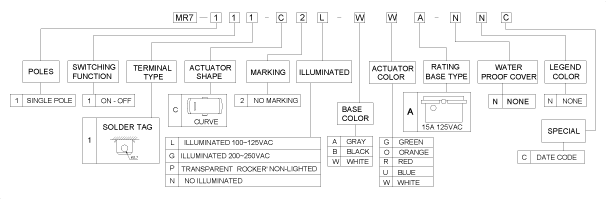

How to order

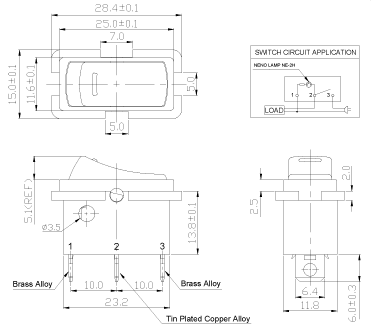

MR7-111-C2L-BBA-NNC
