MR6 SERIES

DOUBLE  POLE ROCKER SWITCHES UP TO 16A 125VAC
Soldering, quick connecting  terminals



  • 16A 125/250VAC (UL,CUL)
  • 12A 125/250VAC (UL,CUL)
  • TV-10 (CUL)
  • Initial contact resistance : 20m ohm (max.)
  • Insulation resistance : 100M ohm (min,) at 500VDC
  • Dielectric strength : 1,000VAC for 1 minute
  • Base : Nylon 66, UL rated 94V-2 min
  • Actuator : Nylon 66, UL rated 94V-2 min
  • Spring : Steel wire
  • Contact : Silver plated copper alloy
  • Terminals: Silver plated Copper

　

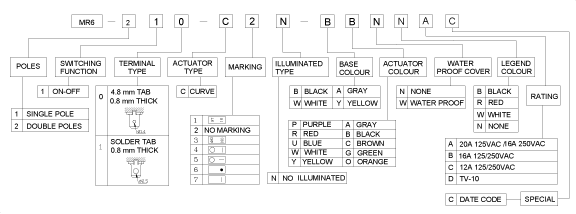

How to order


MR6-210-C2N-BBN
