MR5 SERIES

             ULTRA MINI-SIZED ROCKER SWITCHES, UP TO 6A 125VAC,
APPEALING OUTLOOK  NON ILLUMINATED, SOLDERING LUG


  • 6A 125VAC, 3A 250VAC ( UL, CUL )
  • 3A 250VAC T100/55 (VDE, ENEC)
  • 3A 250VAC (CQC)
  • Initial contact resistance : 20m ohm MAX.
  • Insulation resistance : 100M ohm MIN. at 500VDC
  • Dielectric strength : 1,000VAC FOR 1 MINUTE.
  • Electrical life : 10,000 cycles.
  • Temperature range : 0 to + 100 degrees in Celsius
  • Base : Nylon 66, UL rated 94V-2 min
  • Actuator : Nylon 66, UL rated 94V-2 min
  • Spring : Piano wire
  • Contacts: Silver alloy
  • Terminals: Silver plated copper alloy

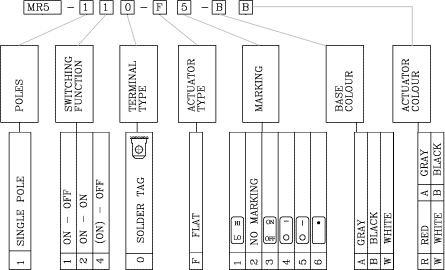

How to order:

　
