B SERIES

SINGLE POLE ROCKER SWITCHES UP TO 15A 125VAC
cost saving, illuminated or non-lighted, wire lead terminals


  • 10A 250VAC (UL,CSA)
  • 15A 125VAC (UL,CSA)
  • 10A 250VAC (CQC)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Electrical life : 6,000 cycles
  • Temperature range : -20 to + 85 degrees in Celsius
  • Base : Nylon 66, UL rated 94V-2 min
  • Actuator : Nylon 66/PC, UL rated 94V-2 min
  • Spring : Piano wire
  • Contact : Copper alloy
  • Terminals : Silver or tin plated copper

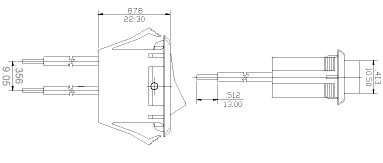

  • Wire Lead: 16Awg wires ( standards ); 18Awg optional
  • Lamp : Neon, Fluorescent

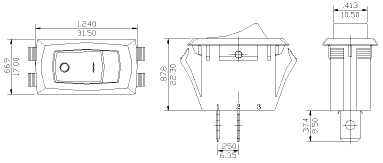

B160-R2L-BR2BM
B160-R2L-BR1BM

B165-R2N-BB0NN

B130-R2N-BB0NN
  • 3 position,ON-OFF-ON
  • Offered with quick-connect terminals

　
