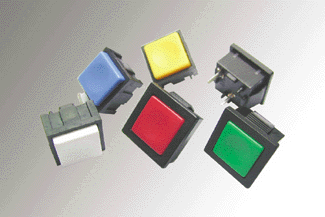

PUSHBUTTON SWITCHES PS19
SERIES
|
TO
0.5A 30VDC PCB OR
PANEL MOUNTING
|
|
|
-
Current
: 0.25A 50VDC/125VAC,
100,000cycles. 0.5A 30VDC, 10,000cycles.
-
Insulation resistance : 100M
ohm min.
-
Total travel : 0.45±0.15mm.
-
Contact resistance : 150m ohm
max.
-
Dielectric withstanding
voltage : 1000VAC for 1 minutes.
|
-
Actuator : ABS (UL rated 94V-2
min).
-
Body : PBT (UL rated 94V-2
min).
-
Snap dome : Nickel plated
stainless steel.
-
Terminals : Silver plated
copper.
|
|
|
|
PS19 |
|
|
|
|
|
|
PS19-1 |
|
 |
|
