SMALL SIZE 7x7 ROTARY TYPE / ERD6 SERIES



FEATURES

  • Flat type with outer dimensions 7.2mm square; 4.0mm high on board for through hole type and 3.6mm high on board for surface mounting type.

  • Top size 7.2x3.5mm2, 8mm high on board for side adjust type.

  • Positions (10,16) and switch code can be identified by color rotor.

  • Gold plated contact area ensures reliable electric continuity for micro current.

SPECIFICATIONS

1.ELECTRICAL

Contact rating



   Max. switching load

100 mA, 5 VDC

   Min. switching load

10 A, 5 VDC

Contact resistance

200 m Max.

Insulation resistance

100 M Min., 100 VDC

Dielectric strength

250 VAC (rms), 60 sec.

2.MECHANICAL

Temperature rating



   operating

-25 ~+70

   storage

-25 ~+85

Operation force

510 gf-cm Max. (Rotational torque)

Durability

10000 detents Min.

PART NUMBERING SYSTEM

 ERD 6 10 C S A X
   |  |  | | | | |
   |  |  | | | | +--- Blank:Standard
   |  |  | | | |      Z:RoHS Compliant
   |  |  | | | +--- Ground Terminal:
   |  |  | | |      No letter:without, A:with
   |  |  | | +--- Setting:
   |  |  | |      S:Standard Type (Top Adjust Type)
   |  |  | |      R:Right Angle Type
   |  |  | |      M:Surface Mounting Type
   |  |  | |        in Tube Package
   |  |  | |      J:Right Angle with Surface Mounting Type
   |  |  | |        in Tube Package
   |  |  | |      D:Surface Mounting Type
   |  |  | |        in Tape & Reel Package
   |  |  | |      T:Right Angle with Surface Mounting Type
   |  |  | |        in Tape & Reel Package
   |  |  | +--- Code: R:Real, C:Complement
   |  |  +--- Number of positions: 10,16
   |  +--- 7.2x7.2 mm2, Flat Type
   +--- Series Name: ERD:Rotary DIP Switch

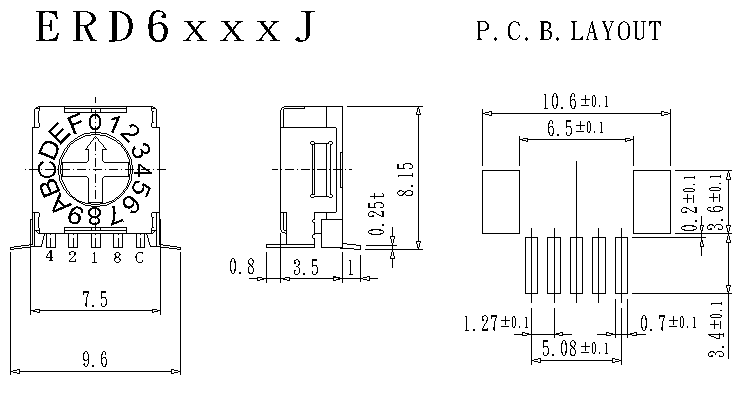

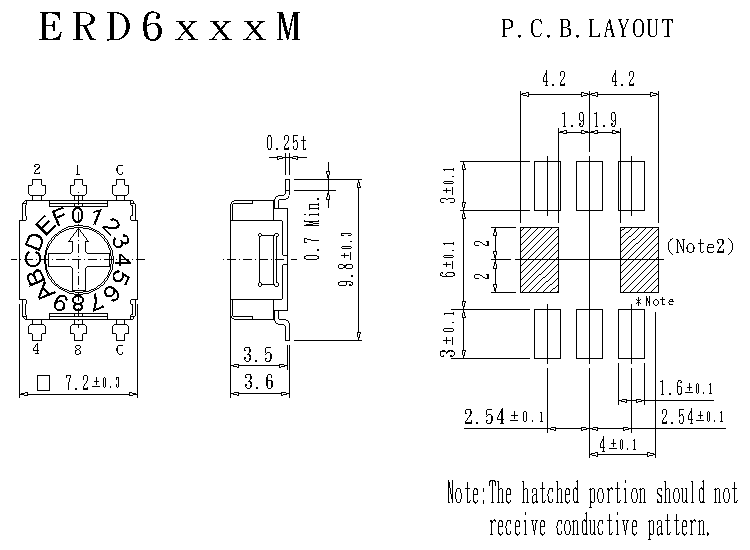

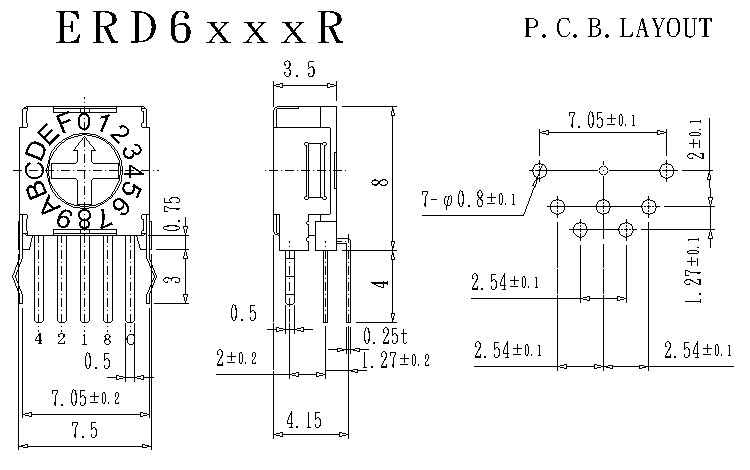

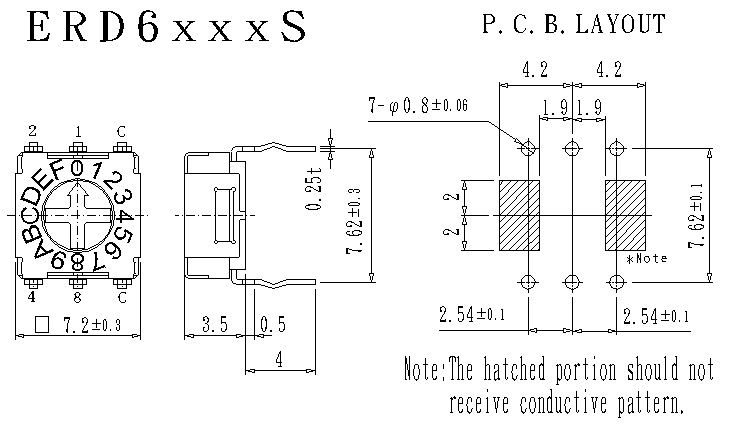

DIMENSIONS AND CIRCUITRY    UNIT:mm

INTRODUCTION to ECE ROTARY DIP SWITCH

SIZE

POSITIONS

CODE

PIN OUT

ROTOR

TYPE

PART NUMBER

7x7

10,16

REAL,
COMPLEMENT

3:3

FLAT

 STANDARD

ERD6xxxSxx

3:2

 RIGHT ANGLE ERD6xxxRxx

3:3

 SMT ERD6xxxMxx

5:0

 RIGHT ANGLE
WITH SMT		 ERD6xxxJxx

3:3

 SMT IN T&R ERD6xxxDxx

5:0

 RIGHT ANGLE
WITH SMT IN T&R		 ERD6xxxTxx
