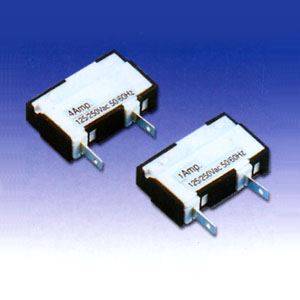

90  Series  Thermal Circuit Breaker

Product Info
Product Description :

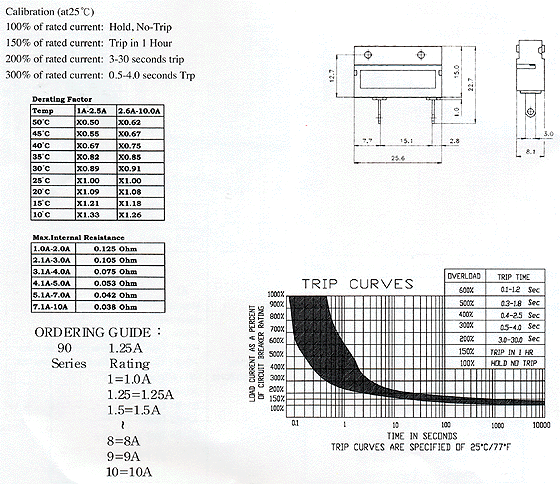

	1. Standard rating: 1.0Amp ~ 10.0Amp  2. Input power: 125/250Vac, 50Vdc, 50/60Hz  3. Interrupting capacity: 1000Amp, 125Vac  4. Dielectric strength: 1500Vac, 1 minute  5. Resettable overload capacity: 10 times rasted current  6. Voltage drop: less than 0.25V  7. Insuiation resistance: less than 500 megaohms  8. Reset time: within 60 seconds trmperature rise at  9. Terminal block: less than 65 Centigrade degree at 100%                     of rated current applied continuously                     at 25 Centigrade degree. 10. Contact endurance: 125Vac x 150% of rated current ~                        less than 500 cycles 10. Calibration (at 25 Centigrade degree)     . 100% of rated current: hold, no-trip     . 135% of rated current: trip in 1 hour     . 200% of rated current: 3-30 seconds trip     . 300% od rated current: 0.5-4.0 seconds trip
Primary Competitive Advantages :
. Excellent and High Quality Control . Prompt Delivery . Competitive Price . Small Order Acceptable . OEM Accepted
